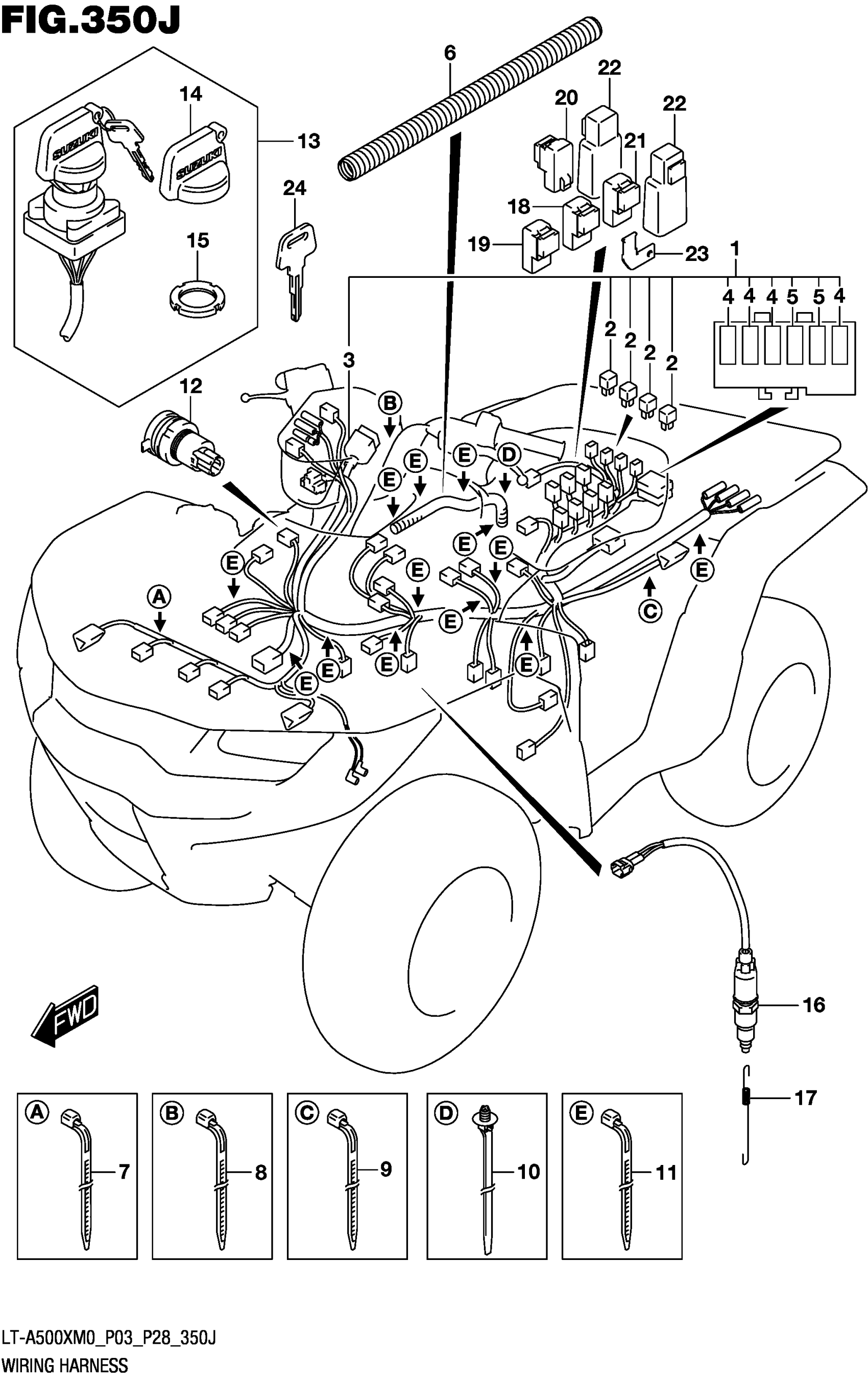

Suzuki LT-A500XM0 (2020) WIRING HARNESS (LT-A500XPZM0 P33) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-35K10.

36610-35K12

$600.47

2

.RECTIFIER ASSY

32800-16A00

$23.07

3

.COVER, SPEED

36618-31G00

Unavailable

4

.FUSE (10A)

09481-10501

$2.06

5

.FUSE (15A)

09481-15501

$2.02

6

GUIDE, WIRING HARNESS

36619-31G00

$18.08

7

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:120)

09407-12402

$3.04

9

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:170)

09407-17403

$4.91

11

CLAMP (L:190)

09407-19401

$3.05

12

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

13

SWITCH ASSY,IGNITION This part replaces 37110-34K00.

37110-34K10

$68.91

14

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

15

.NUT,IGNITION SWITCH

37112-24500

$11.48

16

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

17

SPRING

09443-06080

$4.73

18

RELAY ASSY | FOR FUEL PUMP This part replaces 38740-31G10.

38740-31G11

$27.46

19

RELAY ASSY | FOR BRAKE PARKING This part replaces 38740-31G10.

38740-31G11

$27.46

20

RELAY ASSY | FOR DEF LOCK This part replaces 38740-31G10.

38740-31G11

$27.46

21

RELAY ASSY | FOR BACKUP LAMP This part replaces 38740-31G10.

38740-31G11

$27.46

22

RELAY ASSY | FOR DRIVE

38860-65G00

$45.80

23

BRACKET, SIDE STAND RELAY | OPT

38741-05300

Unavailable

24-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

24-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

24-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

24-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
