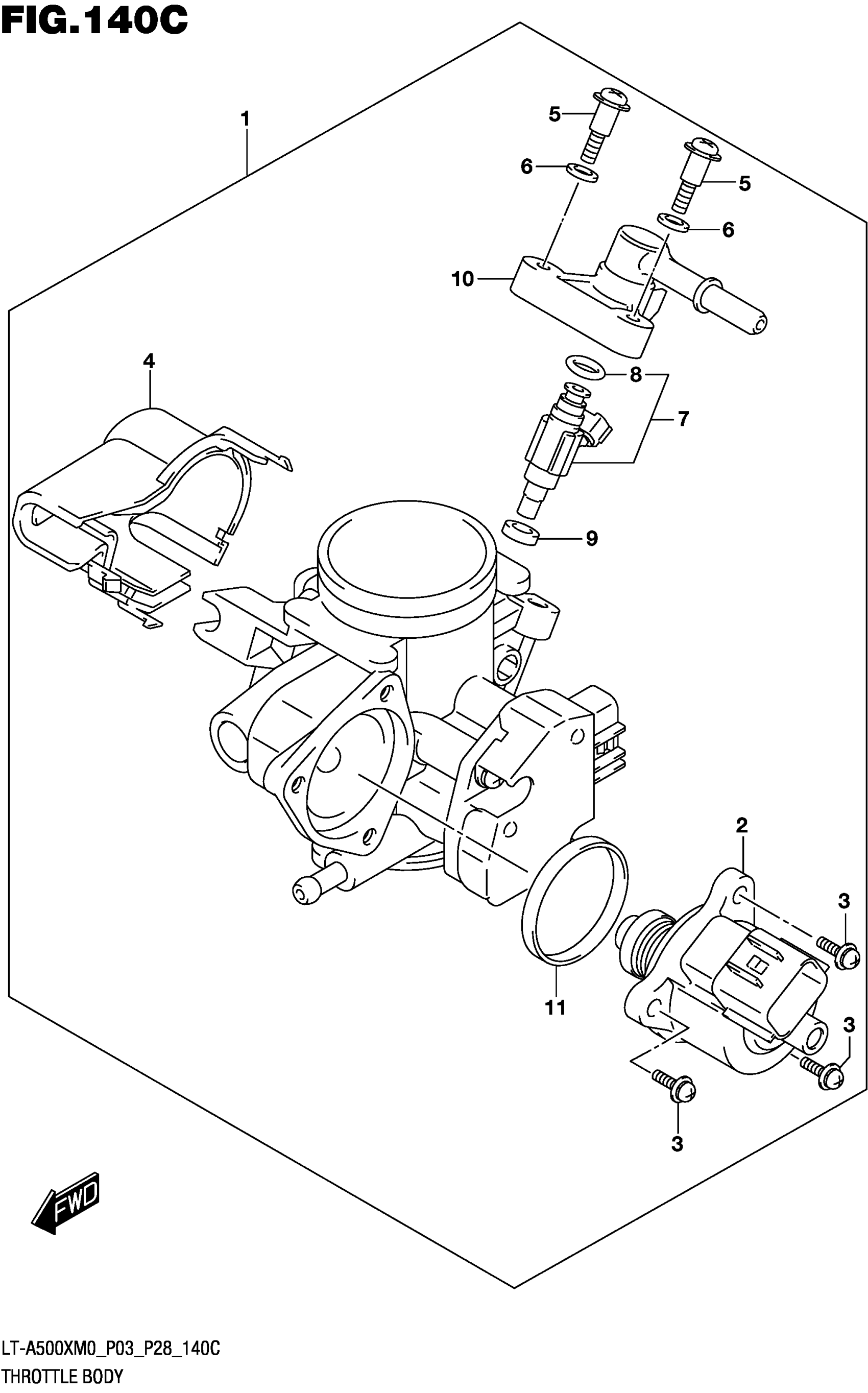

Suzuki LT-A500XM0 (2020) THROTTLE BODY (LT-A500XM0 P33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-31H31

$358.07

2

.MOTER, ISC STEPPING

13520-31G00

$205.44

3

.SCREW

13601-13G00

$2.95

4

.COVER

13578-31G00

$16.13

5

SCREW

13601-11J00

$4.79

6

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

7

.INJECTOR ASSY

15710-31G10

$252.98

8

..O RING

15717-31G00

$10.33

9

SEAL

15722-29G00

$10.93

10

.DELIVERY PIPE

15731-31G10

$205.73

11

.GASKET

18139-82K00

$10.22
