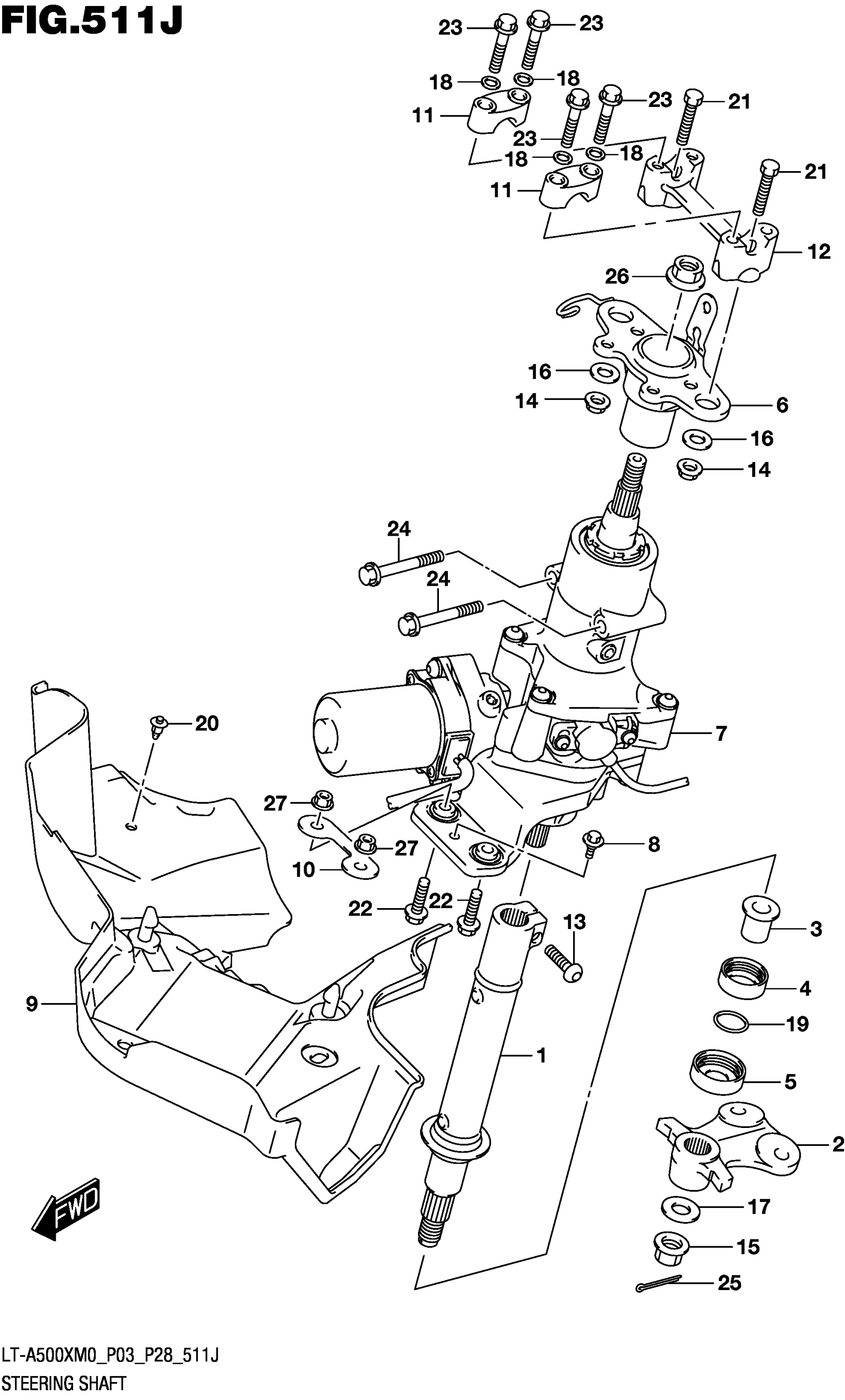

Suzuki LT-A500XM0 (2020) STEERING SHAFT (LT-A500XPZM0 P33) Diagram

#

Description
Price

1

SHAFT, STEERING

51650-34K10

$159.57

2

PLATE, STEERING ARM

51653-34K00

$84.12

3

BUSH, STEERING SHAFT LOWER

51661-31G00

$30.05

4

SEAL, DUST

51662-31G01

$10.28

5

SEAL, DUST

51663-31G11

$15.38

6

PLATE, STEERING SHAFT

51680-31G00

$180.70

7

BODY ASSY, STEERING EPS This part replaces 51700-34K00.

51700-34K13

$2,410.57

8

BOLT (6X12)

09111-06085

$4.54

9

PLATE, EPS ECU

51771-31G00

$134.48

10

PLATE, EPS MOUNT

51772-34K00

$3.58

11

CLAMP, HANDLE HOLDER UPPER

56211-09F10

$7.65

12

CLAMP, HANDLE HOLDER

56211-31G10

$43.17

13

BOLT (10X30)

09106-10087

$6.20

14

NUT (M10)

09159-10115

$3.55

15

NUT

09159-14027

$13.67

16

WASHER (10.5X22X2.3)

09160-10039

$2.26

17

WASHER (14.5X30X3.2)

09160-14062

$2.81

18

WASHER

09164-08015

$3.21

19

O RING

09280-24014

Unavailable

20

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

21

BOLT

01500-1035A

$3.72

22

BOLT

01550-0830A

$3.04

23

BOLT (8X35)

01550-0835A

$3.04

24

BOLT

01550-0875A

$3.55

25

PIN

04111-2020A

$1.49

26

NUT

08316-1014A

$2.35

27

NUT

08319-3108A

$2.32
