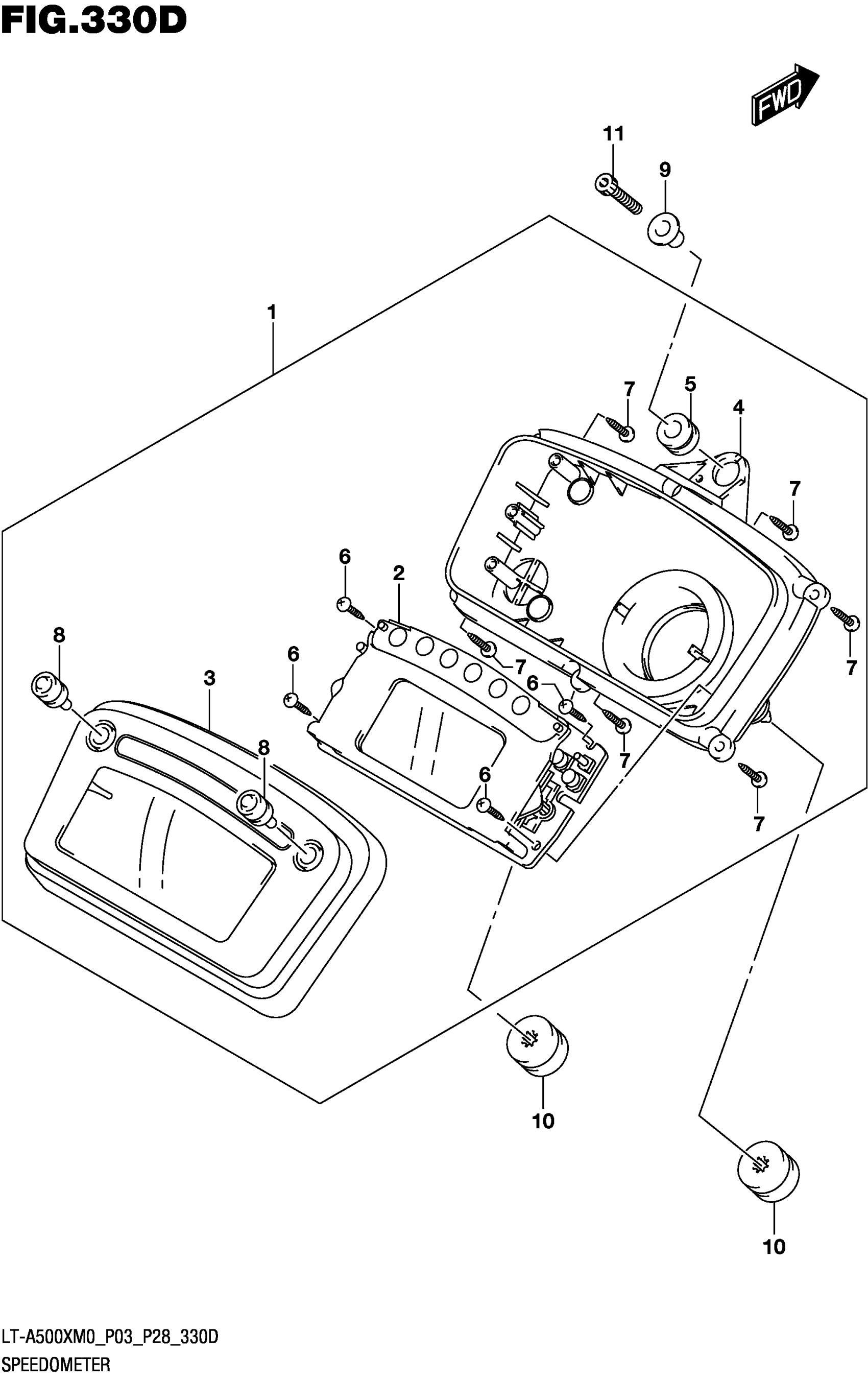

Suzuki LT-A500XM0 (2020) SPEEDOMETER (LT-A500XPM0 P03) Diagram

SPEEDOMETER ASSY This part replaces 34100-35K10.

34100-35K11

$272.98

SPEEDOMETER ASSY This part replaces 34120-34K00.

34100-34K01

$262.98

.CASE, UPPER

34150-31G30

$64.55

.CASE, LOWER

34111-31G30

$15.00

.CUSHION, RUBBER

34995-31G30

$2.45

.SCREW (3X10)

34147-31G30

$1.75

.SCREW (3X12)

34149-31G30

Unavailable

.SWITCH RUBBER

34124-31G30

$7.79

SPACER, SPEEDOMETER

34187-47F00

$7.85

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

BOLT

07130-0520B

$2.53
