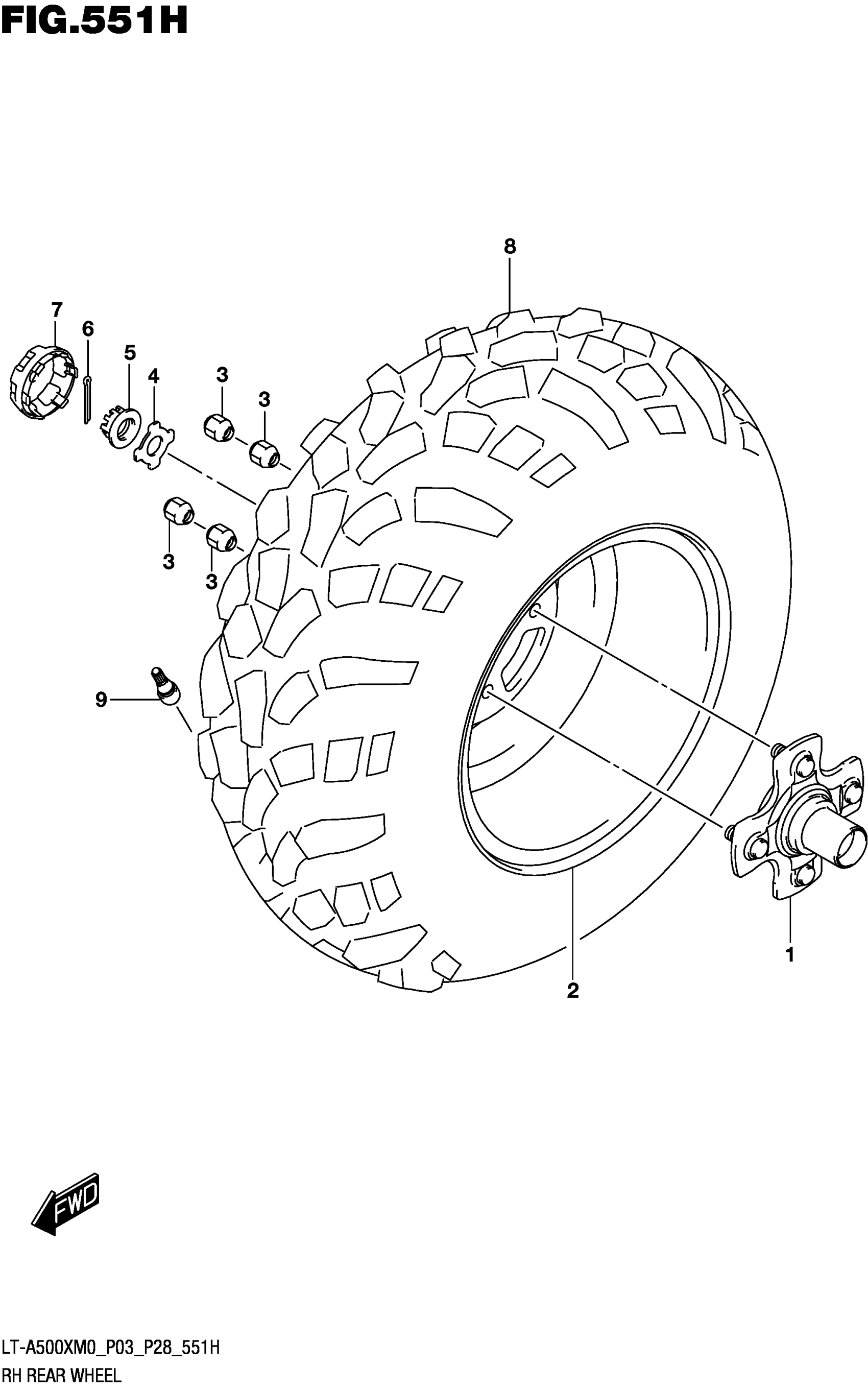

Suzuki LT-A500XM0 (2020) RH REAR WHEEL (LT-A500XPZM0 P28) Diagram

Description

Price

HUB, REAR WHEEL

64110-31G10

$247.50

2-1

REAR WHEEL-ALUM | (BLACK) FOR YT9,YLG,30H,QMA This part replaces 65311-34K00-291.

65311-34K00

$237.75

2-2

WHEEL,REAR | (BLACK) FOR PHW,QFA This part replaces 65311-34K20-291.

65311-34K20

$299.80

NUT (H:23)

09159-10045

$5.88

WASHER, HUB

64723-03G00

$23.48

NUT

09141-20008

$17.00

04111-4035A

$1.37

7-1

CAP,WHEEL CENTER | FOR YT9,YLG,30H,QMA

54725-34K00

$11.37

7-2

CAP,WHEEL CENTER | FOR PHW,QFA

54725-34K20

$30.69

TIRE,REAR (AT25X10-12) | AT489 CARLISLE

65110-31G30

$326.70

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10
