2020 Suzuki LT-A500XM0 Muffler Diagram

← All diagrams

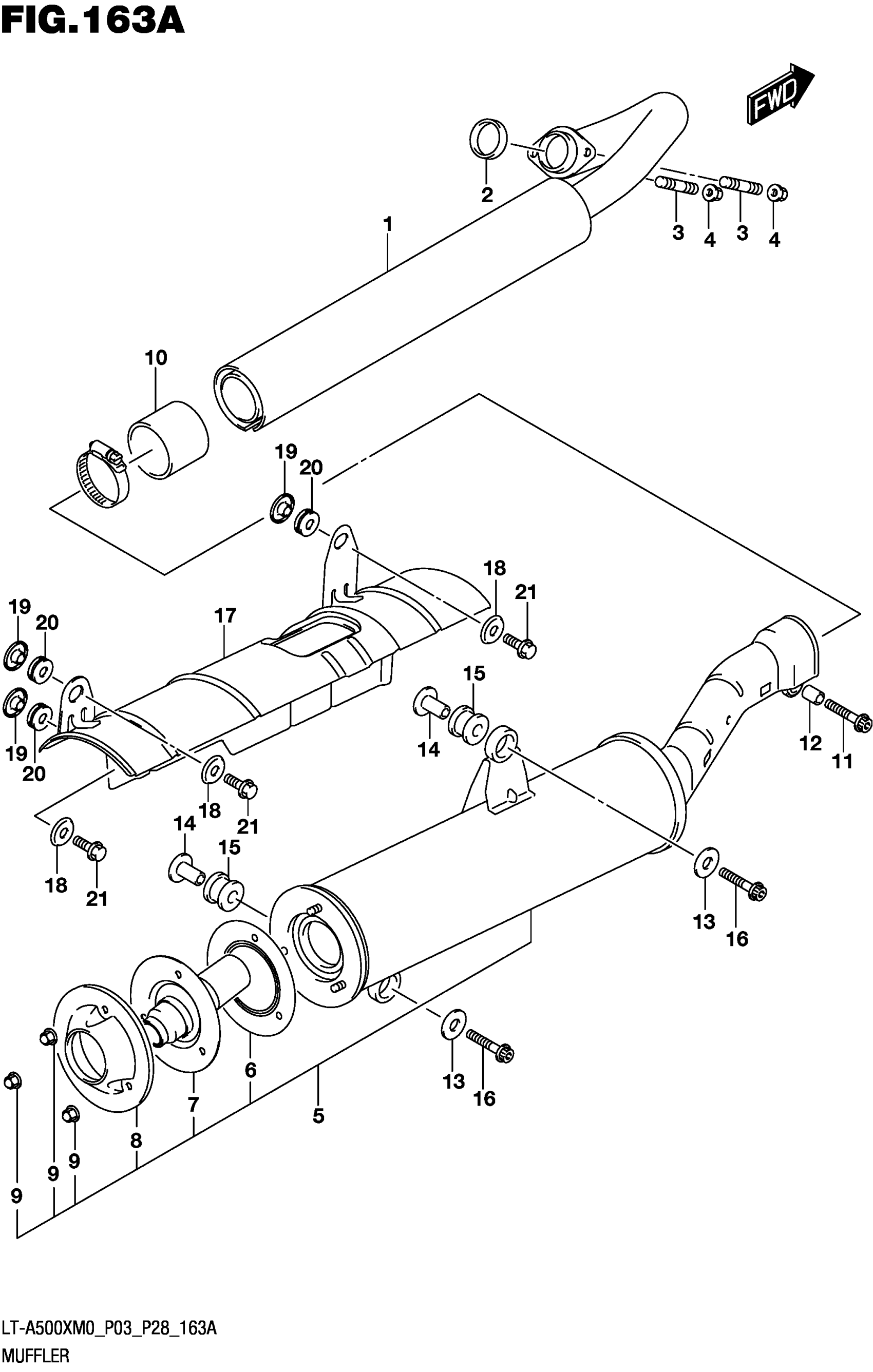

Find the part on the Muffler diagram for your 2020 Suzuki LT-A500XM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Suzuki LT-A500XM0 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE ASSY, EXH This part replaces 14100-11H20.

14100-11H30

1
Out of stock

2

.GASKET,EXHAUST

14181-18C00

1
Out of stock

3

BOLT,STUD

01421-0825A

2
Out of stock

4

NUT

08319-3108A

2
Out of stock

5

BODY, MUFFLER

14310-11H40

1
Out of stock

6

.GASKET

14770-11H00

1
Out of stock

7

.ARRESTER

14850-11H10

1
Out of stock

8

.PLATE

14852-11H20

1
Out of stock

9

.NUT

08313-20067

3
Out of stock

10

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

1
Out of stock

11

BOLT

07120-0835A

1
Out of stock

12

SPACER

14424-07G01

1
Out of stock

13

WASHER (8.5X30X2.3)

09160-08503

2
Out of stock

14

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

15

CUSHION

09320-12071

2
Out of stock

16

BOLT

07120-0840A

2
Out of stock

17

COVER, MUF

14880-31G60

1
Out of stock

18

WASHER, EXHAUST PIPE COVER

14184-07G00

3
Out of stock

19

SPACER, EXHAUST PIPE COVER

14185-07G00

3
Out of stock

20

CUSHION

09320-08069

3
Out of stock

21

BOLT

01550-0616A

3
Out of stock
