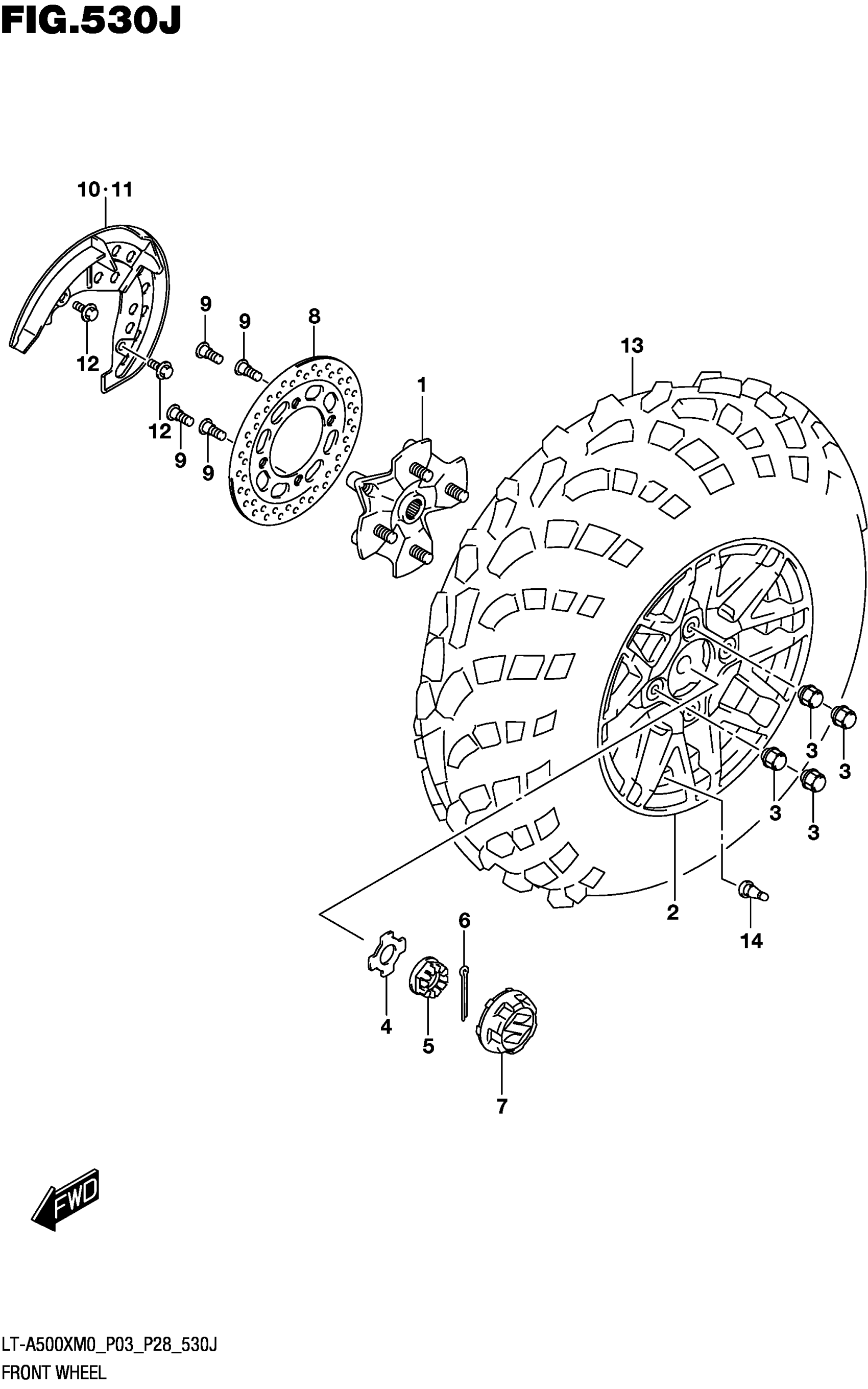

Suzuki LT-A500XM0 (2020) FRONT WHEEL (LT-A500XPZM0 P33) Diagram

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$137.30

FRT WHEEL (ALUM | (BLACK) FOR YT9,YLG,30H,QMA This part replaces 55311-34K00-291.

55311-34K00

$208.80

WHEEL,FRONT | (BLACK) FOR PHW,QFA This part replaces 55311-34K20-019.

55311-34K20

$255.82

NUT (H:23)

09159-10045

$6.42

WASHER, HUB

64723-09F00

$13.35

NUT

09141-18010

$10.11

PIN

04111-4035A

$1.49

CAP,WHEEL CENTER | FOR YT9,YLG,30H,QMA

54725-34K00

$12.42

CAP,WHEEL CENTER | FOR PHW,QFA

54725-34K20

$33.52

DISC, FRONT BRAKE

59211-31G20

$36.10

BOLT (8X21)

09106-08160

$3.57

COVER, FRONT DISC RH

59231-31G11

$21.70

COVER, FRONT DISC LH

59431-31G11

$21.32

BOLT (6X12)

09111-06085

$4.54

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

$300.50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
