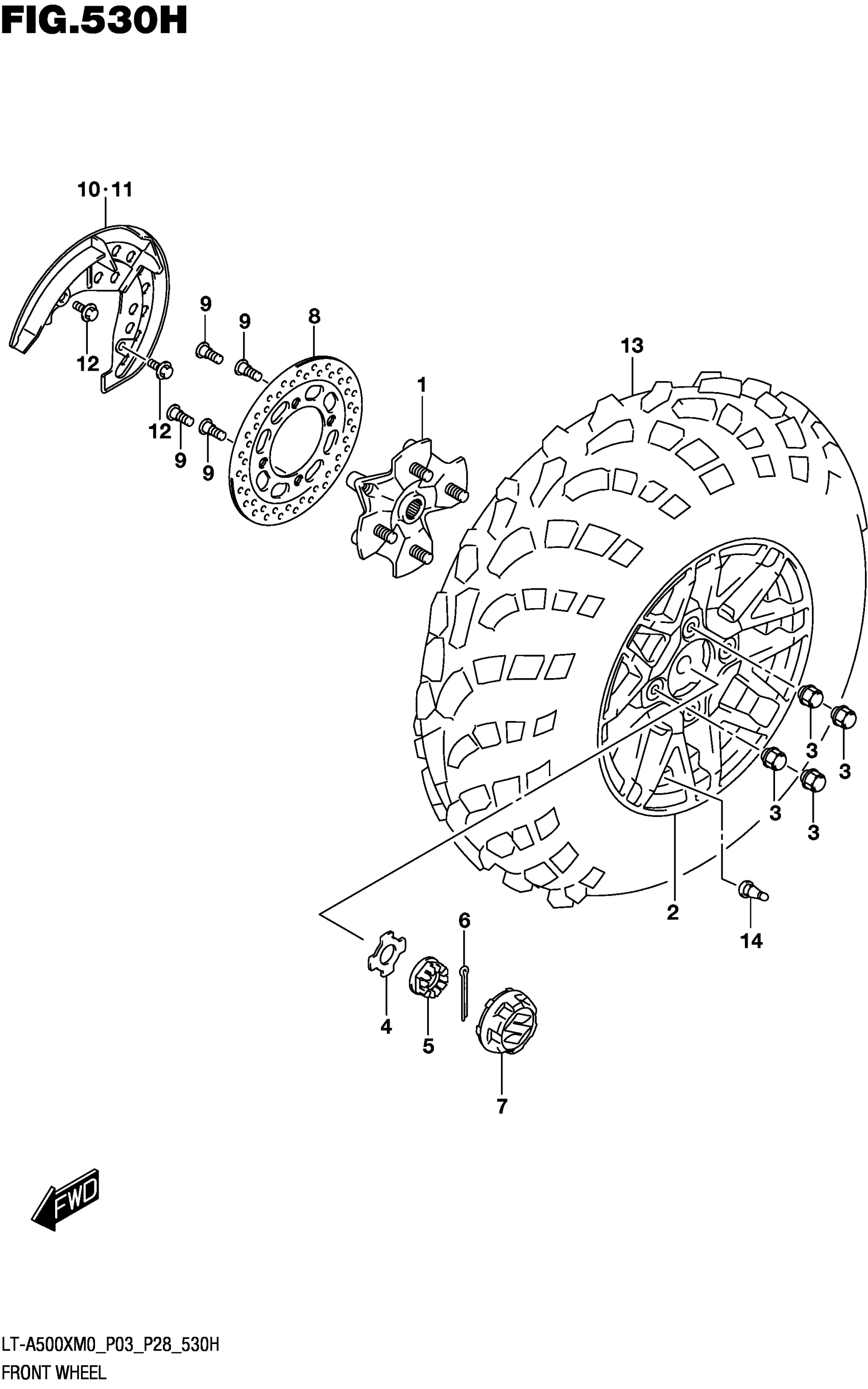

Suzuki LT-A500XM0 (2020) FRONT WHEEL (LT-A500XPZM0 P28) Diagram

Description

Price

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$152.78

2-1

FRT WHEEL (ALUM | (BLACK) FOR YT9,YLG,30H,QMA This part replaces 55311-34K00-291.

55311-34K00

$232.35

2-2

WHEEL,FRONT | (BLACK) FOR PHW,QFA This part replaces 55311-34K20-019.

55311-34K20

$284.68

NUT (H:23)

09159-10045

$5.88

WASHER, HUB

64723-09F00

$15.07

NUT

09141-18010

$9.25

04111-4035A

$1.37

7-1

CAP,WHEEL CENTER | FOR YT9,YLG,30H,QMA

54725-34K00

$11.37

7-2

CAP,WHEEL CENTER | FOR PHW,QFA

54725-34K20

$30.69

DISC, FRONT BRAKE

59211-31G20

$33.05

BOLT (8X21)

09106-08160

$3.22

COVER, FRONT DISC RH

59231-31G11

$24.50

COVER, FRONT DISC LH

59431-31G11

$24.07

BOLT (6X12)

09111-06085

$4.16

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

$331.18

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10
