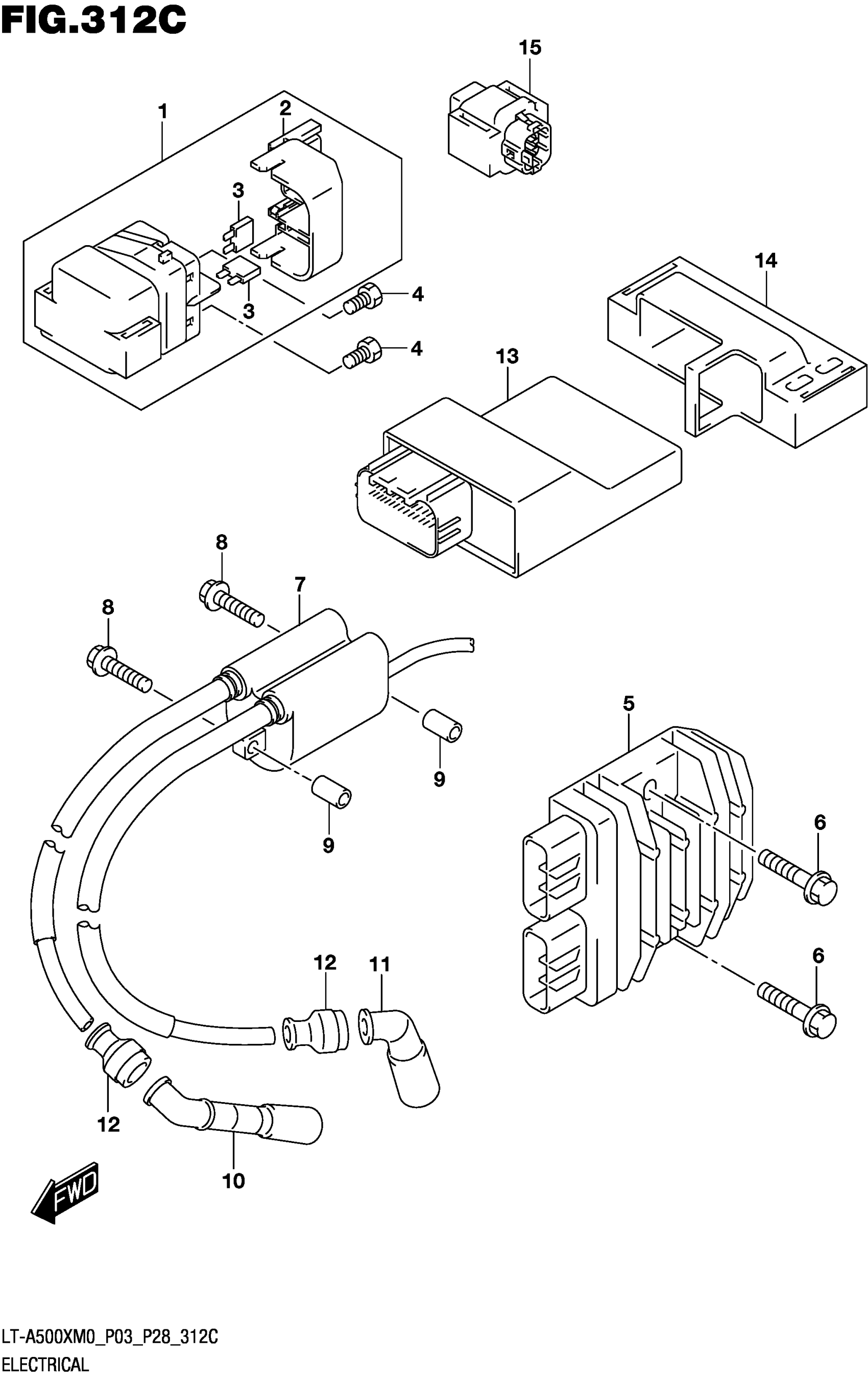

Suzuki LT-A500XM0 (2020) ELECTRICAL (LT-A500XM0 P33) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$88.15

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.42

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-26J02

$283.67

6

BOLT (6X25)

01550-0625A

$2.01

7

COIL ASSY, IGNITION

33410-40H01

$104.36

8

BOLT

01547-0640A

$2.38

9

SPACER (6.4X10X18)

09180-06195

$4.70

10

CAP ASSY,SPARK PLUG

33510-31G00

$38.47

11

CAP ASSY,SPARK PLUG

33510-31G10

$31.51

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

13

CONTROL UNIT, FI

32920-35K11

$724.78

14

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

15

SENSOR ASSY,FUEL CUT

33960-27G00

$124.02
