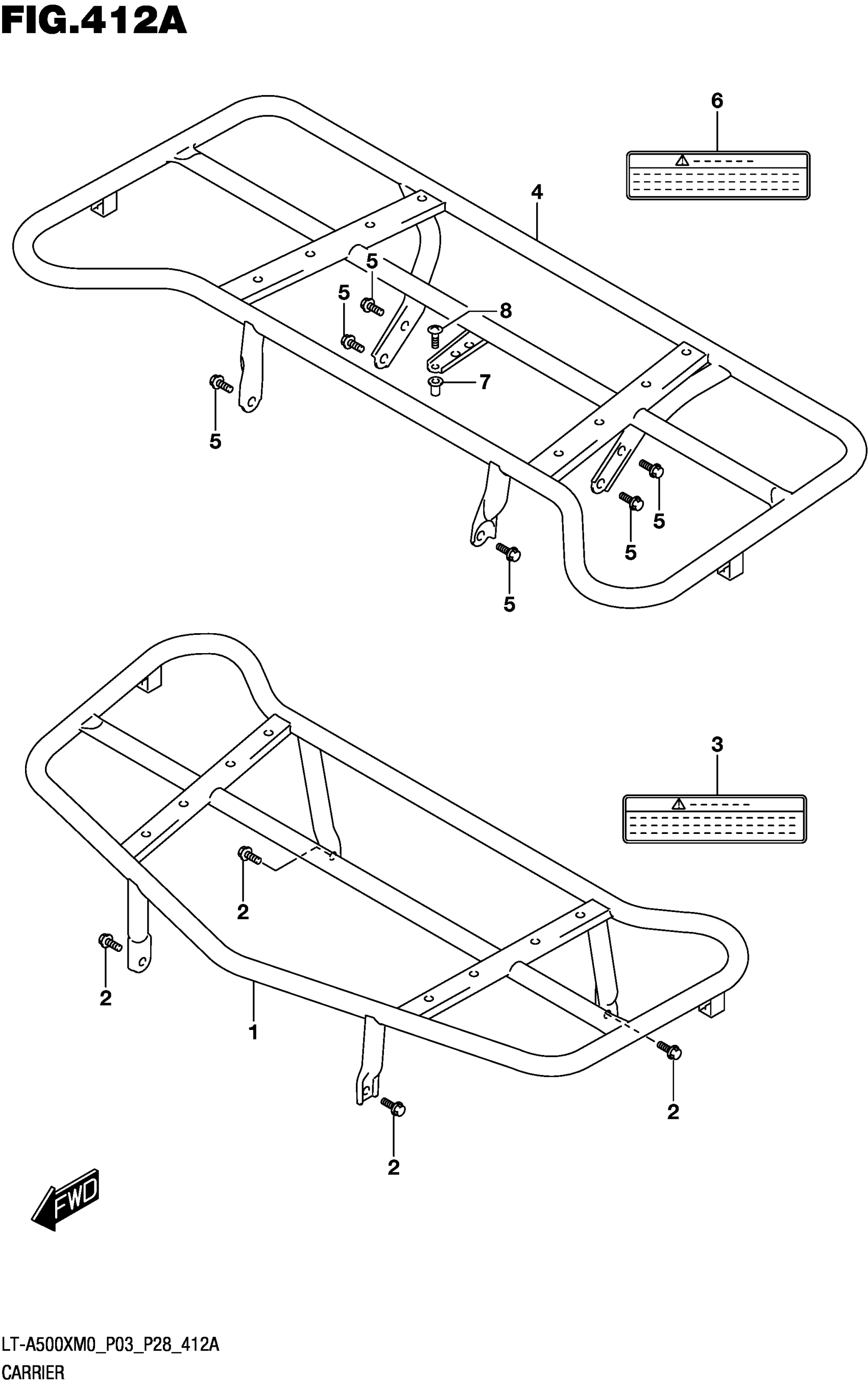

Suzuki LT-A500XM0 (2020) CARRIER (LT-A500XM0 P03) Diagram

#

Description

Price

1

CARRIER,FRONT This part replaces 46410-34K00.

46410-34K20-YSN

$243.40

2

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

3

LABEL,FRONT CARRIER

68381-31G01

$4.07

4

CARRIER COMP,RE This part replaces 46310-34K00.

46310-34K60-YSN

$205.27

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

LABEL,REAR CARRIER

68381-31G11

$4.05

7

NUT (M5)

09159-05019

$7.14

8

SCREW

02142-0520B

$1.78
