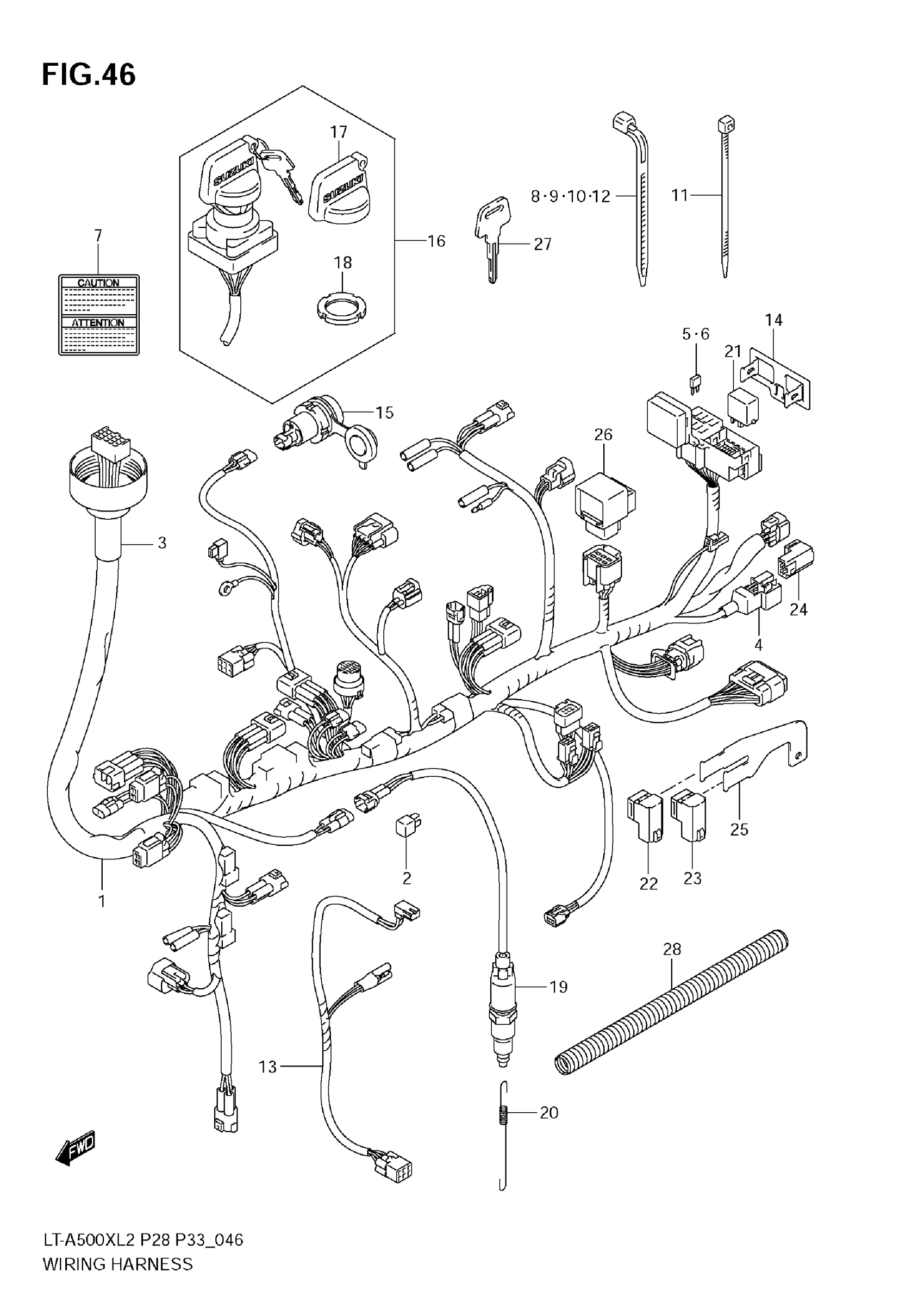

Suzuki LT-A500XLS2 (2012) WIRING HARNESS (LT-A500X E28) Diagram

#

Description
Price

1

HARNESS, WIRING This part replaces 36610-11H31.

36610-11H32

$848.60

2

RECTIFIER ASSY

32800-16A00

$23.07

3

COVER

36618-31G00

Unavailable

4

BOOT

36618-31G10

$9.30

5

FUSE (10A)

09481-10501

$2.06

6

FUSE (15A)

09481-15501

$2.02

7

LABEL, POWER SOUECE TERMINAL

38852-03G20

Unavailable

8

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:235)

09407-25401

$4.66

11

CLAMP (L:145)

09407-14407

$3.57

12

CLAMP (L:190)

09407-19401

$3.05

13

WIRE, FRONT BRAKE SW LEAD

36855-38F10

Unavailable

14

BRACKET, FUSE

36744-31G00

Unavailable

15

TERMINAL,POWER SOURCE (12V,12 | 12V,12W

38850-03G10

$17.81

16

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$82.20

17

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

18

.NUT,IGNITION SWITCH

37112-24500

$11.48

19

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

20

SPRING

09443-06080

$4.73

21

RELAY,NEUTRAL START

38730-09F00

$46.55

22

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

25

BRACKET, RELAY

38741-31G20

Unavailable

26

RELAY ASSY, DRIVE

38750-31G00

$119.65

27

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

27

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

28

GUIDE, WIRING HARNESS

36619-31G00

$18.08
