2012 Suzuki LT-A500XLS2 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

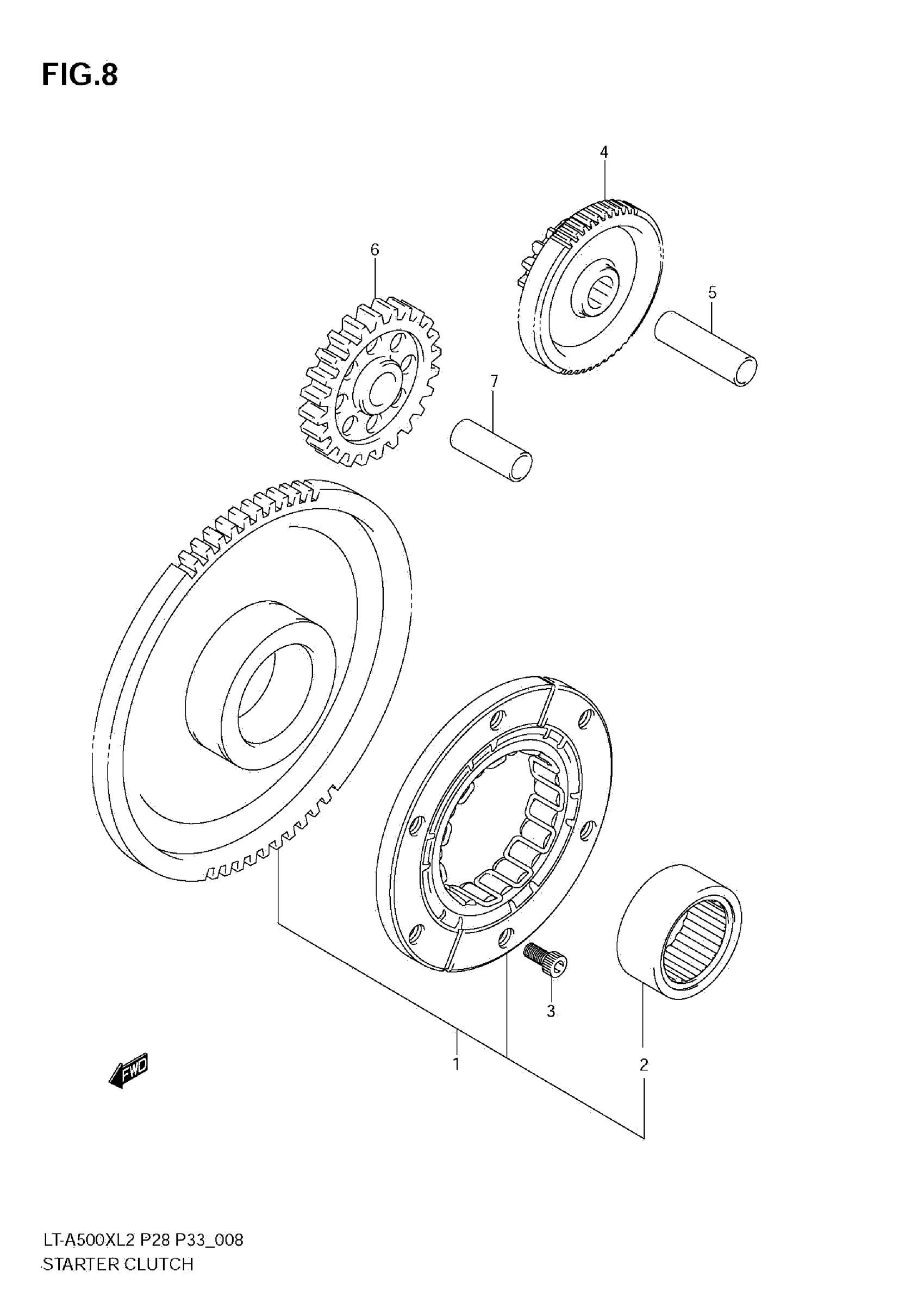

2012 Suzuki LT-A500XLS2 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH SET, STARTER

12600-11810

1
Out of stock

2

BEARING (31X39X17.8)

09263-31009

1
Out of stock

3

.BOLT (8X16)

09106-08190

6
Out of stock

4

GEAR, STARTER IDLE NO.1

12611-11H00

1
Out of stock

5

PIN (8X12X45.5)

09206-12006

1
Out of stock

6

GEAR, STARTER IDLE NO.2

12612-31G00

1
Out of stock

7

PIN (8X12X33)

09206-12007

1
Out of stock
