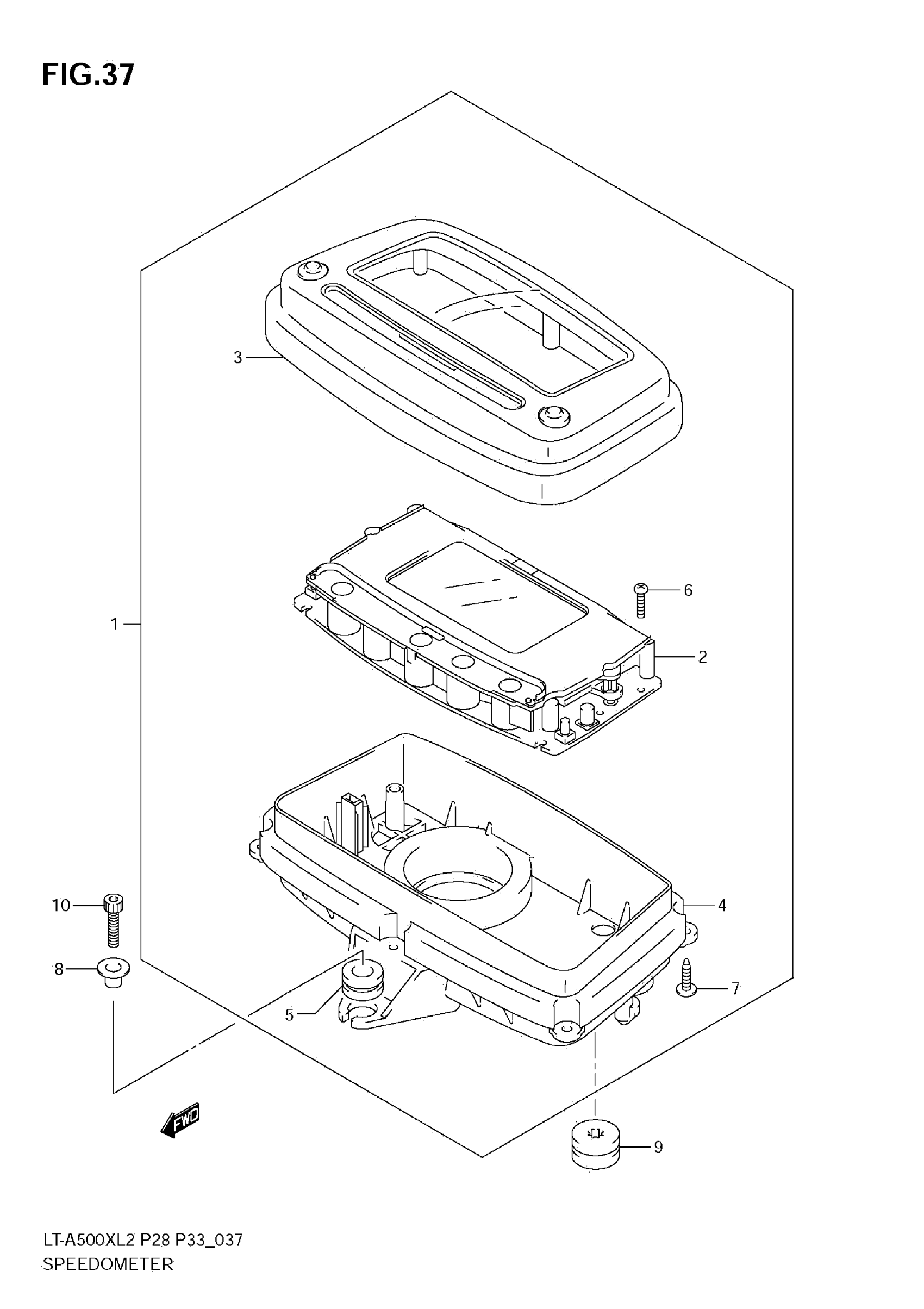

Suzuki LT-A500XLS2 (2012) SPEEDOMETER (LT-A500XZ E33) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-11HB0

$304.48

2

SPEEDOMETER

34120-11HA0

$253.38

3

CASE, UPPER

34150-31G30

$72.85

4

CASE, LOWER

34111-31G30

$13.73

5

CUSHION, METER

34995-31G30

$2.77

6

SCREW (3X10)

34147-31G30

$1.90

7

SCREW (3X12)

34149-31G30

Unavailable

8

SPACER, SPEEDOMETER

34187-47F00

$8.87

9

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

10

BOLT

07130-0520B

$3.18
