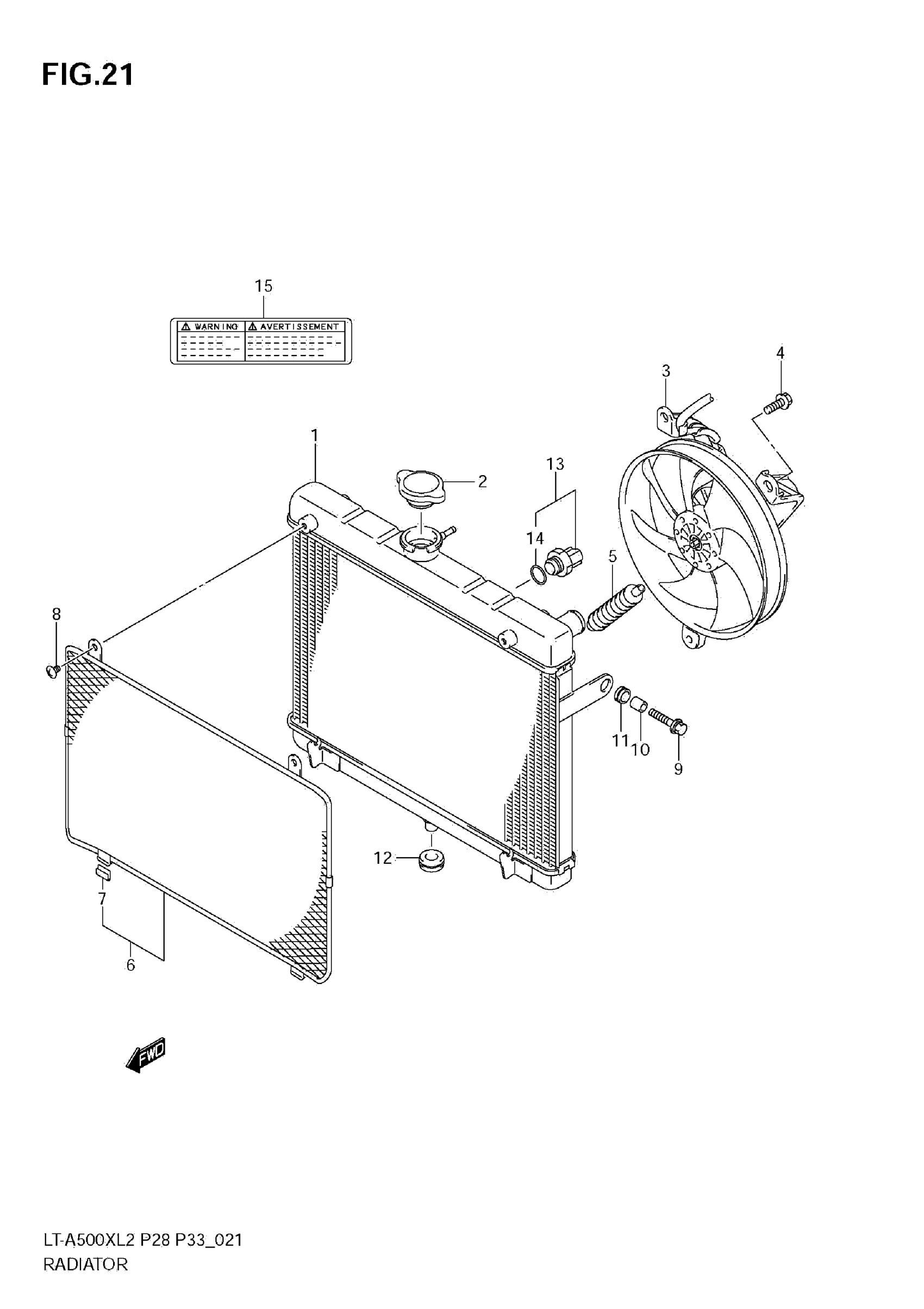

Suzuki LT-A500XLS2 (2012) RADIATOR (LT-A500XZ E28) Diagram

#

Description

Price

1

RADIATOR ASSY This part replaces 17710-31G20.

17710-31G40

$205.58

2

CAP ASSY, RADIATOR

17730-14G00

$42.83

3

FAN ASSY, RADIATOR

17800-31G10

$232.22

4

BOLT

01550-0610B

$2.42

5

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.48

6

COVER, RADIATOR This part replaces 17760-09F00.

17760-09F01

$61.90

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

8

SCREW

02142-0608B

$1.77

9

BOLT (6X25)

09118-06097

$2.50

10

SPACER (6.5X10X12)

09180-06290

$2.35

11

CUSHION

09320-10042

$3.12

12

CUSHION

09320-12036

$2.38

13

SWITCH, RADIATOR FAN This part replaces 17680-50F00.

17680-50F01

$66.46

14

O RING

17689-50F00

$2.53

15

LABEL, COOLING FAN This part replaces 17991-02F40.

17991-02F41

$4.64
