2012 Suzuki LT-A500XLS2 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

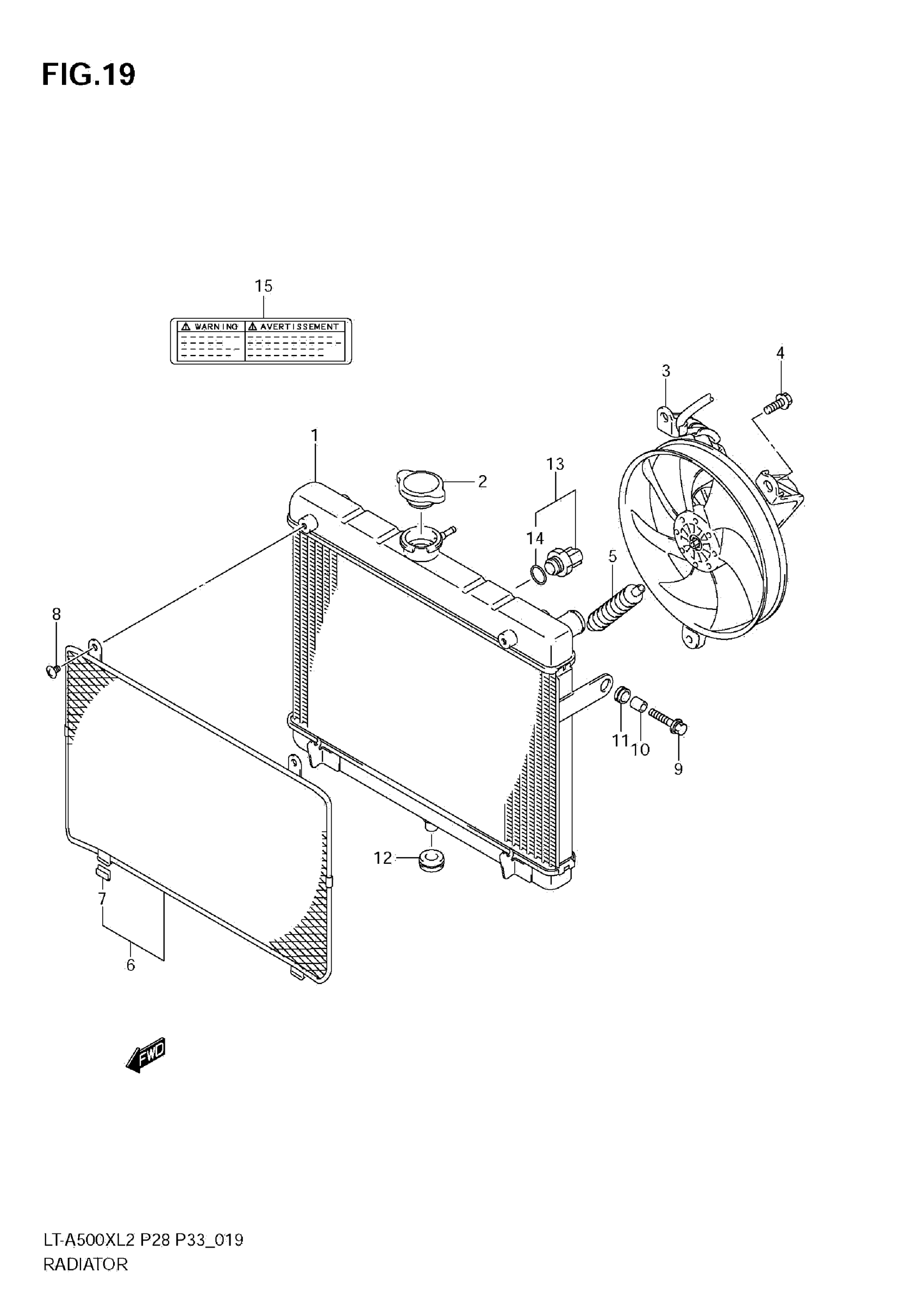

2012 Suzuki LT-A500XLS2 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSY This part replaces 17710-31G20.

17710-31G40

1
Out of stock

2

CAP ASSY, RADIATOR

17730-14G00

1
Out of stock

3

FAN ASSY, RADIATOR

17800-31G10

1
Out of stock

4

BOLT

01550-0610B

3
Out of stock

5

.BOOT,RDTR FAN MOTOR

17820-07G10

1
Out of stock

6

COVER, RADIATOR This part replaces 17760-09F00.

17760-09F01

1
Out of stock

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

2
Out of stock

8

SCREW

02142-0608B

2
Out of stock

9

BOLT (6X25)

09118-06097

2
Out of stock

10

SPACER (6.5X10X12)

09180-06290

2
Out of stock

11

CUSHION

09320-10042

2
Out of stock

12

CUSHION

09320-12036

1
Out of stock

13

SWITCH, RADIATOR FAN This part replaces 17680-50F00.

17680-50F01

1
Out of stock

14

O RING

17689-50F00

1
Out of stock

15

LABEL, COOLING FAN This part replaces 17991-02F40.

17991-02F41

1
Out of stock
