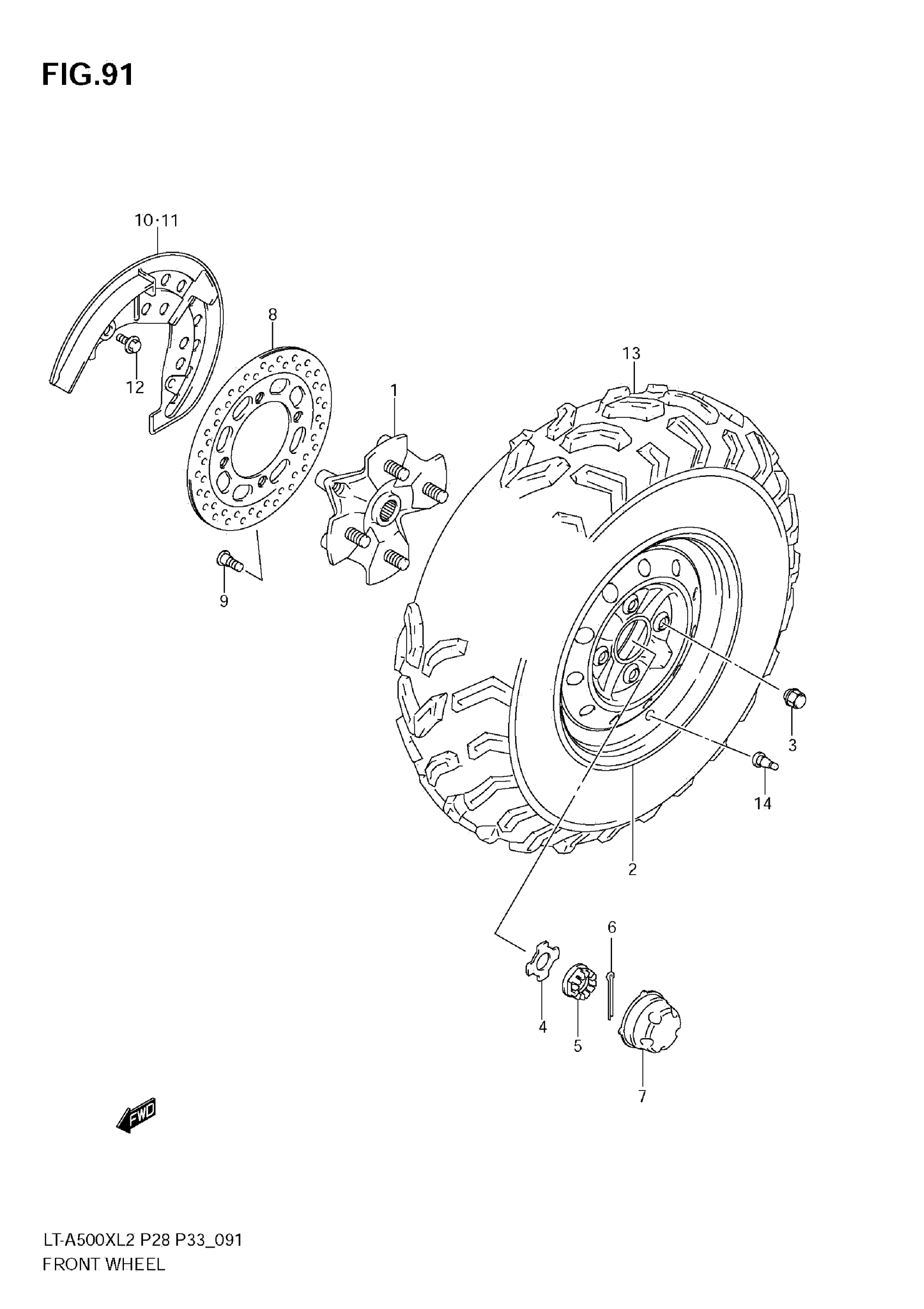

Suzuki LT-A500XLS2 (2012) FRONT WHEEL (LT-A500XZ E33) Diagram

#

Description

Price

1

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$137.30

2

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

55310-11H00-291

$321.32

3

NUT

09140-10021

$2.03

4

WASHER

64723-09F00

$13.35

5

NUT

09141-18010

$10.11

6

COTTER PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

DISC, FRONT BRAKE

59211-31G10

$63.63

9

BOLT (8X21)

09106-08160

$3.57

10

COVER, FRONT DISC RH This part replaces 59231-31G10.

59231-31G11

$21.70

11

COVER, FRONT DISC LH This part replaces 59431-31G10.

59431-31G11

$21.32

12

BOLT (6X12)

09111-06085

$4.54

13

TIRE, FRONT (AT25X8-12) | CHENG SHIN

55110-11H00

Unavailable

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
