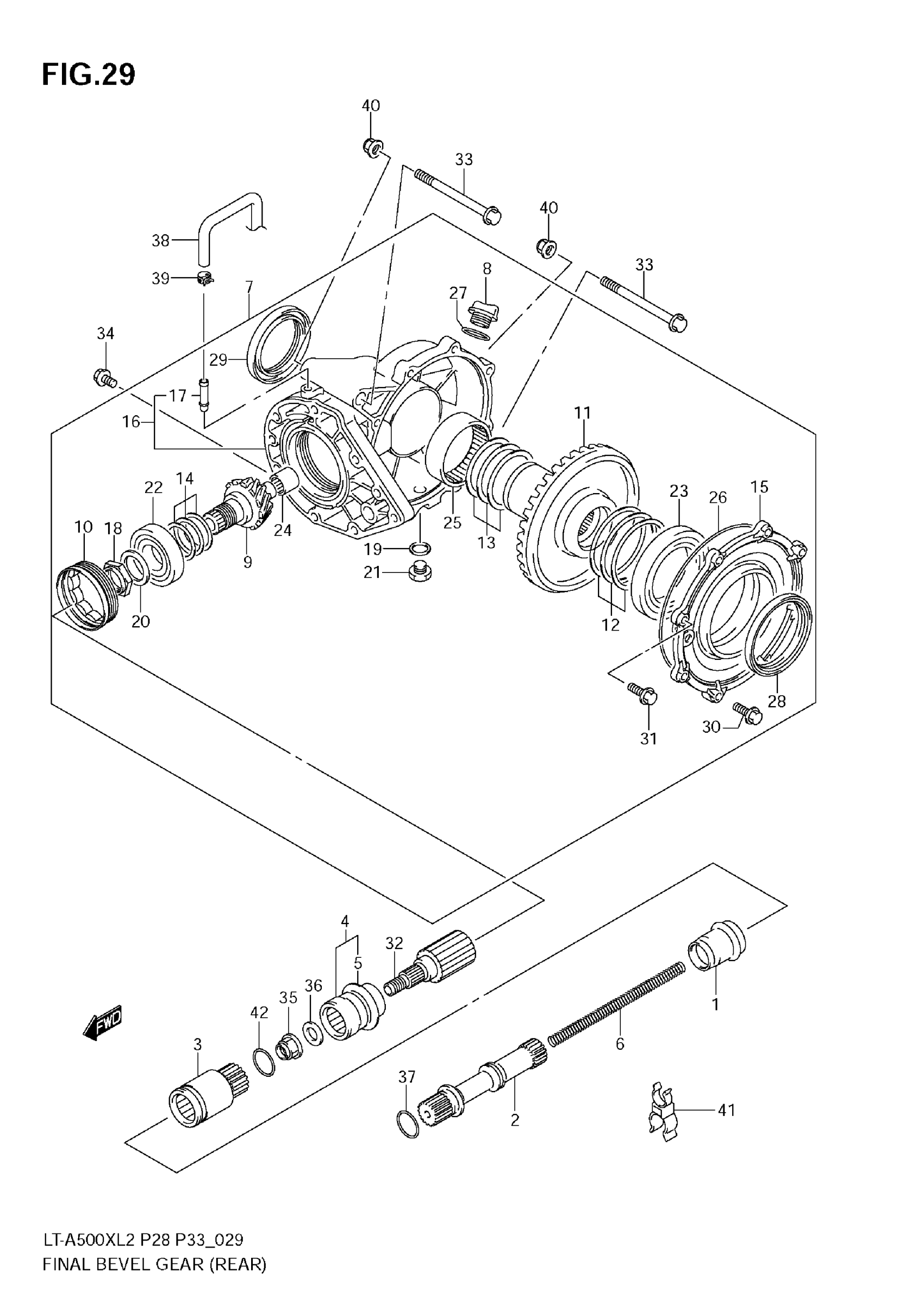

Suzuki LT-A500XLS2 (2012) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

BOOT,JOINT SHAFT This part replaces 27153-31G40.

27153-31G42

$9.22

2

SHAFT, REAR PROPELLER

27155-31G30

$95.32

3

JOINT, REAR PROPELLER

27157-31G10

$63.07

4

COUPLING, RR PROP SHAFT

27170-31G20

$119.18

5

PLATE, OUTPUT OIL SEAL

27592-31G10

$10.55

6

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

7

CASE ASSY, REAR FINAL GEAR

27410-31G50

$1,457.92

8

PLUG

09259-20008-XC0

$7.50

9

GEAR, RR FINAL DRIVE

27311-31G50

$293.05

10

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

11

GEAR, RR FINAL DRIVEN

27320-31G00

$321.27

12

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40 0.50/0.60

27326-31810

$41.88

13

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40 0.50/0.60

27327-31810

$38.95

14

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40 0.50/0.60

27445-24810

$28.18

15

CASE, REAR FINAL GEAR LH

27451-31G10

Unavailable

16

CASE, REAR FINAL GEAR RH

27460-31G10

Unavailable

17

UNION

09364-08016

Unavailable

18

NUT

09140-28006

$18.03

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

SHIM (28X38X1)

09181-28195

$4.77

21

PLUG

09247-14013

$2.30

22

BEARING (28X68X18)

09262-28023

$127.87

23

BEARING (65X100X11)

09262-65001

$140.28

24

BEARING (20X34X18)

09263-20062

$46.98

25

BEARING (55X67X20)

09263-55003

$108.12

26

O RING (D:2.45.ID:156)

09280-00046

$23.58

27

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

28

OIL SEAL (59X88X8)

09283-59001

$26.80

29

OIL SEAL (59X88X8)

09283-59001

$26.80

30

BOLT (8X35)

09103-08357

$4.17

31

BOLT (10X45)

09103-10294

Unavailable

32

SHAFT, RR FINAL DRIVE

27594-31G50

$195.10

33

BOLT (10X110)

09103-10148

$6.94

34

BOLT (10X30)

09103-10405

$3.87

35

NUT

09159-14010

$14.12

36

SHIM (14X26X2)

09181-14002

$2.93

37

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

38

HOSE, BREATHER

27491-31G00

$43.27

39

CLIP

09401-10403

$1.65

40

NUT

09159-10115

$3.55

41

CLAMP

09408-00235

$2.80

42

O RING (D:3.1,ID:26.4)

09280-26006

$2.76
