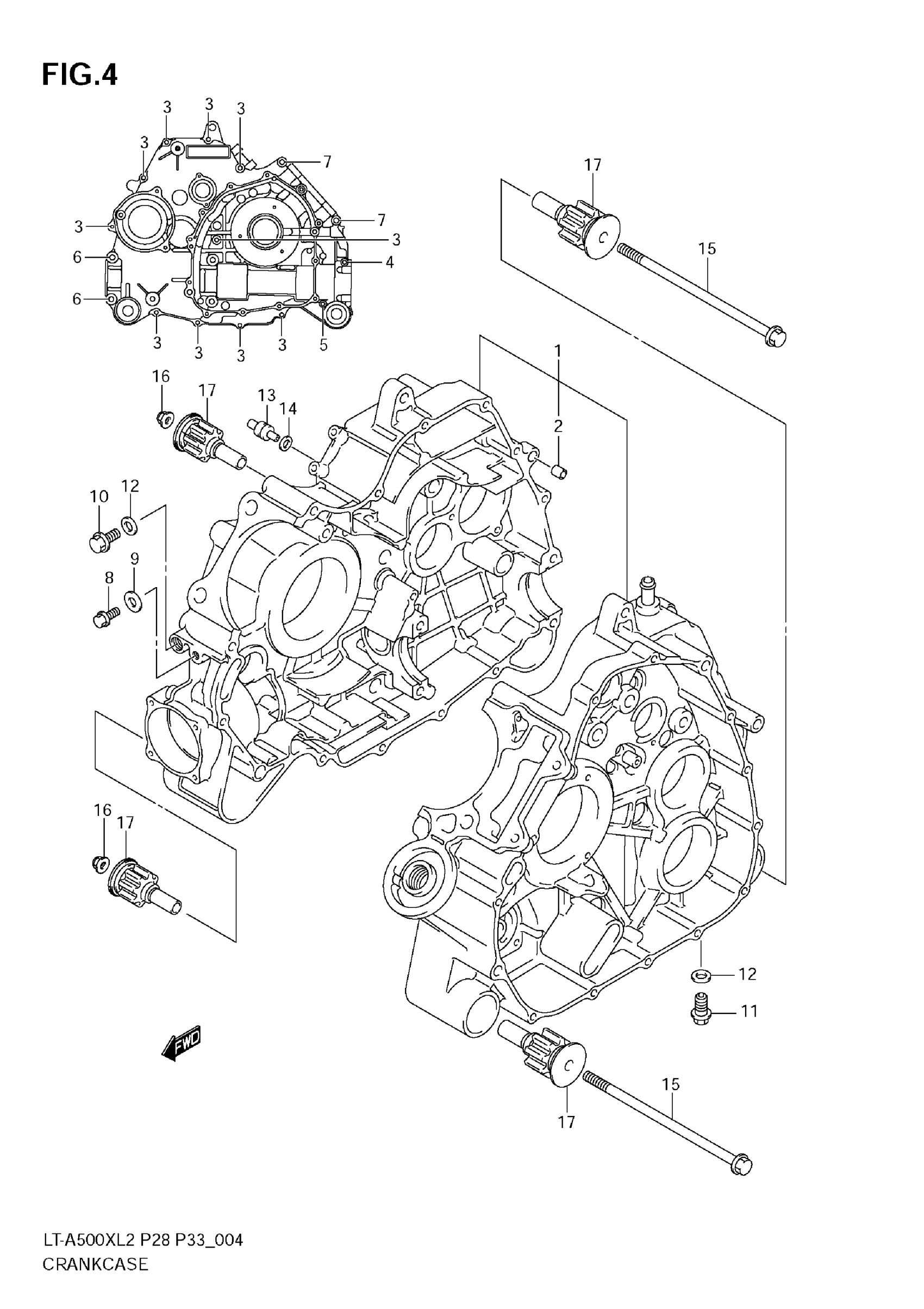

Suzuki LT-A500XLS2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-11870.

11301-11871

$1,673.83

2

PIN

04211-11169

$1.78

3

BOLT

01547-0650B

$2.75

4

BOLT

01547-0680B

$3.18

5

BOLT

01547-0690B

$3.20

6

BOLT

01550-0850B

$4.17

7

BOLT

01550-0875A

$3.55

8

PLUG

01550-0812B

$2.73

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

PLUG (12X10)

09247-12006

$2.82

11

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.73

12

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

13

JET,T/M OIL GALLERY

09493-20014

$16.87

14

O RING (D:1.2,ID:4)

09280-04004

$1.91

15

BOLT (10X195)

09103-10118

$11.56

16

NUT

09159-10115

$3.55

17

BUSH, ENG MTG

11651-31G10

$21.96
