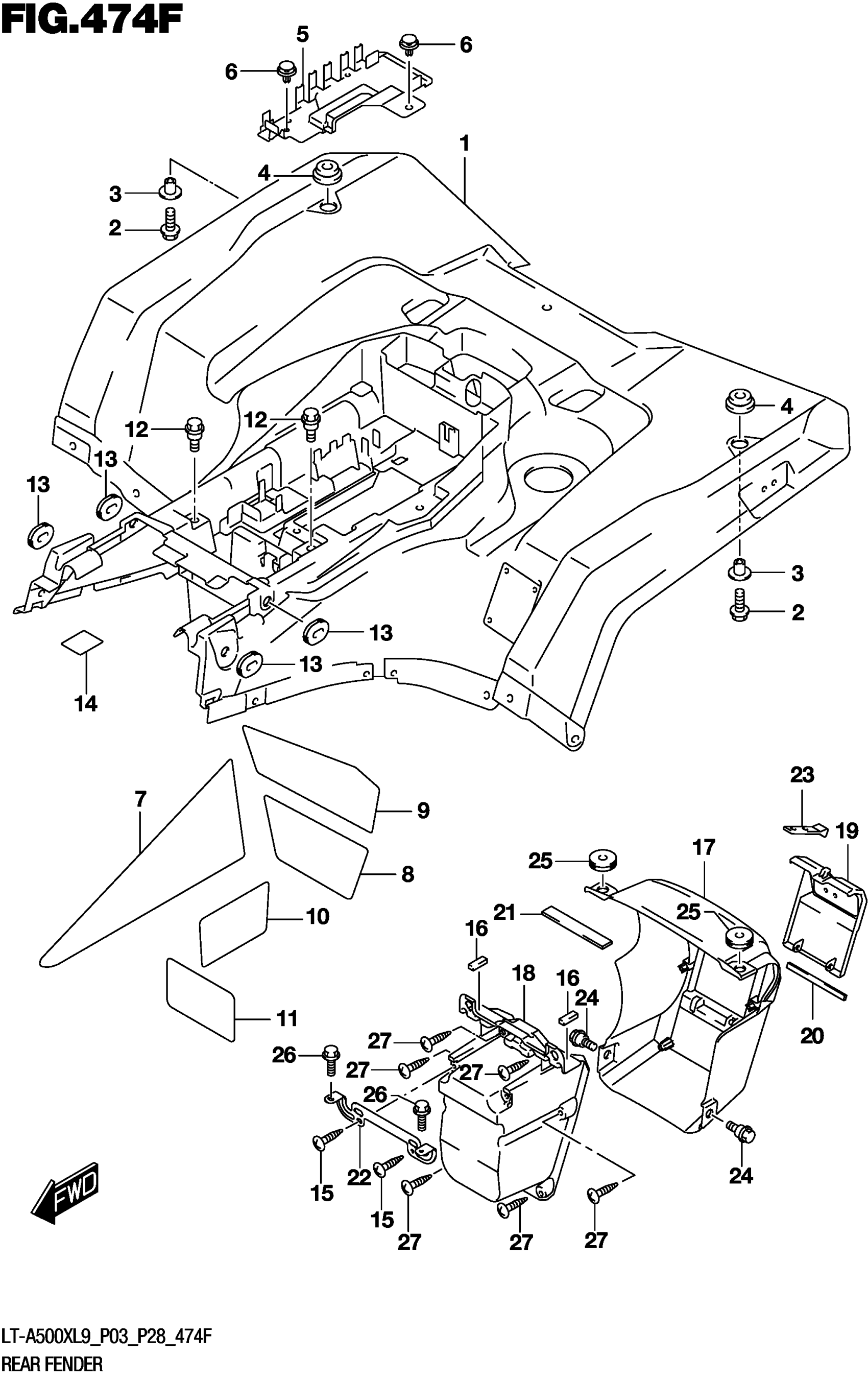

Suzuki LT-A500XL9 (2019) REAR FENDER (LT-A500XPL9 P33) Diagram

#

Description
Price

1-1

FENDER, REAR (GREEN)

63111-34K00-YLG

$620.73

1-2

FENDER, REAR (WHITE)

63111-34K00-30H

$644.37

1-3

FENDER, REAR (RED) This part replaces 63111-34K00-YT9.

63111-34K01-YT9

$620.73

1-4

FENDER, REAR (CAMOUFLAGE)

63111-34K20-PHW

$620.73

1-5

FENDER, REAR (BLACK)

63111-34K40-QFA

$931.10

1-6

FENDER, REAR (BRONZE)

63111-34K40-QMA

$931.10

2

BOLT (6X25)

01550-0625A

$1.97

3

WASHER (6.5X24X1.6)

09169-06074

$7.49

4

CUSHION (11.5X32X12.2)

09320-11021

$3.77

5

COVER, REAR FENDER

63112-34K00

Unavailable

6

CLIP

09409-08008

$1.74

7

SHIELD, REAR FENDER

63122-34K00

$13.75

8

SHIELD, REAR FENDER

63123-34K00

$12.13

9

SHIELD, REAR FENDER

63124-34K00

$11.83

10

SHIELD, REAR FENDER

63127-34K00

$9.43

11

SHIELD, REAR FENDER

63128-34K00

$9.30

12

BOLT (6X13.5)

09111-06088

$2.19

13

CUSHION

09320-08029

$2.51

14

CUSHION (50X42X2.0)

51553-15D40

$9.53

15

SCREW

03541-0620A

$2.67

16

CUSHION (10X30X6)

33652-47F00

$3.38

17

COVER, REAR This part replaces 63251-34K00.

63251-34K03

$23.23

18

BOX,INNER This part replaces 63252-34K00.

63252-34K01

$34.08

19

LID, OUTER This part replaces 63253-34K00.

63253-34K01

$21.08

20

CUSHION, REAR COVER

63255-34K00

$1.62

21

CUSHION, REAR COMB NO.2

63256-34K00

$18.72

22

BRACKET, REAR COVER

63371-34K00

$24.98

23

BAND, REAR BOX

93191-09F20

$14.27

24

BOLT (6X13.5)

09111-06088

$2.19

25

CUSHION (8x26x7)

09320-08018

$2.80

26

BOLT

01550-0612A

$1.97

27

SCREW

03541-0516A

$1.37
