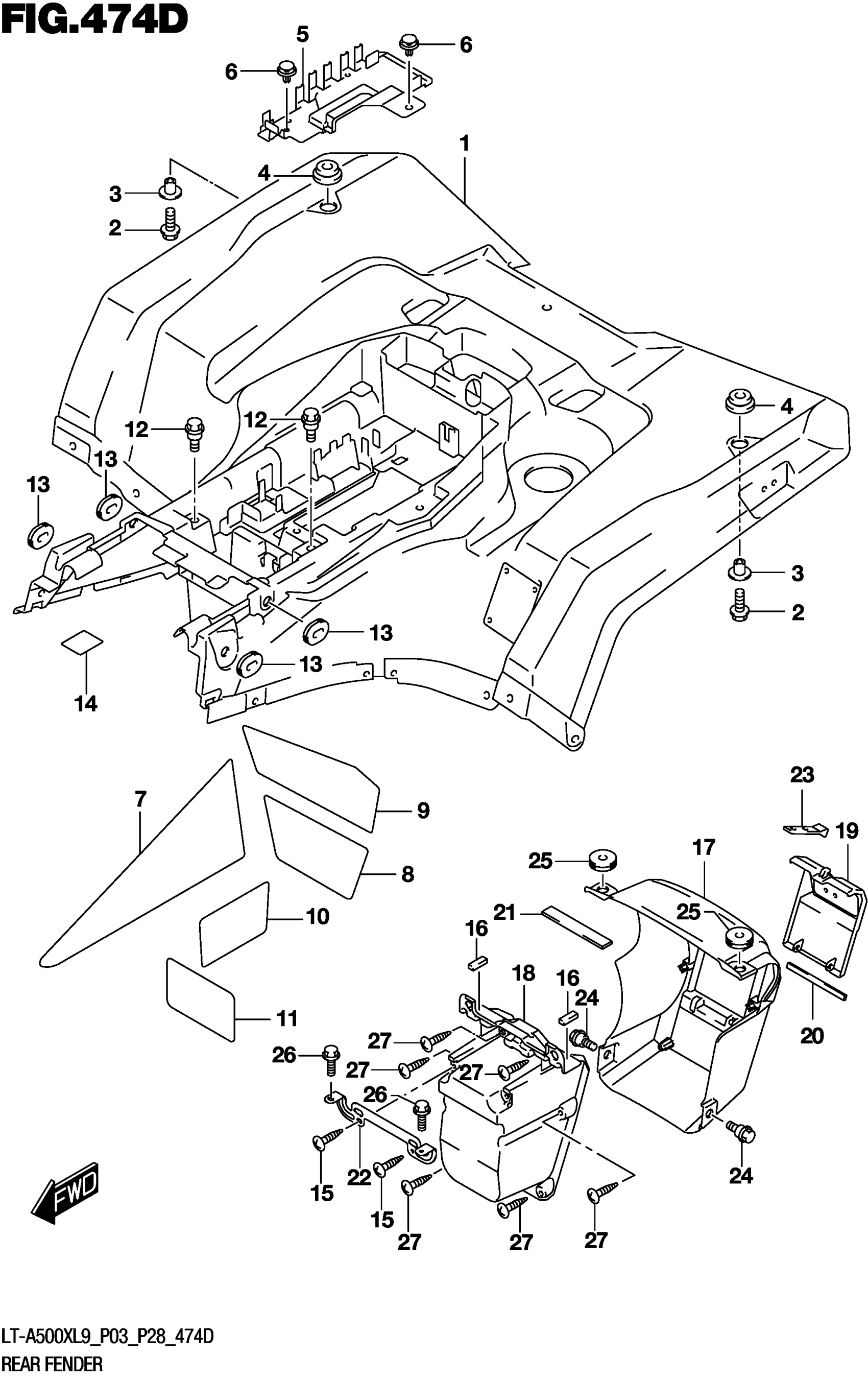

Suzuki LT-A500XL9 (2019) REAR FENDER (LT-A500XPL9 P03) Diagram

#

Description
Price

1-1

FENDER, REAR (GREEN)

63111-34K00-YLG

$573.97

1-2

FENDER, REAR (WHITE)

63111-34K00-30H

$595.82

1-3

FENDER, REAR (RED) This part replaces 63111-34K00-YT9.

63111-34K01-YT9

$573.97

1-4

FENDER, REAR (CAMOUFLAGE)

63111-34K20-PHW

$573.97

1-5

FENDER, REAR (BLACK)

63111-34K40-QFA

$860.93

1-6

FENDER, REAR (BRONZE)

63111-34K40-QMA

$860.93

2

BOLT (6X25)

01550-0625A

$1.97

3

WASHER (6.5X24X1.6)

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER, REAR FENDER

63112-34K00

$25.75

6

CLIP

09409-08008

$1.87

7

SHIELD, REAR FENDER

63122-34K00

$12.18

8

SHIELD, REAR FENDER

63123-34K00

$10.75

9

SHIELD, REAR FENDER

63124-34K00

$10.48

10

SHIELD, REAR FENDER

63127-34K00

$8.35

11

SHIELD, REAR FENDER

63128-34K00

$8.25

12

BOLT (6X13.5)

09111-06088

$2.03

13

CUSHION

09320-08029

$2.41

14

CUSHION (50X42X2.0)

51553-15D40

$7.18

15

SCREW

03541-0620A

$2.45

16

CUSHION (10X30X6)

33652-47F00

$3.70

17

COVER, REAR This part replaces 63251-34K00.

63251-34K03

$20.58

18

BOX,INNER This part replaces 63252-34K00.

63252-34K01

$30.20

19

LID, OUTER This part replaces 63253-34K00.

63253-34K01

$22.39

20

CUSHION, REAR COVER

63255-34K00

$1.50

21

CUSHION, REAR COMB NO.2

63256-34K00

$16.58

22

BRACKET, REAR COVER

63371-34K00

Unavailable

23

BAND, REAR BOX

93191-09F20

$12.65

24

BOLT (6X13.5)

09111-06088

$2.03

25

CUSHION (8x26x7)

09320-08018

$3.04

26

BOLT

01550-0612A

$1.97

27

SCREW

03541-0516A

$1.49
