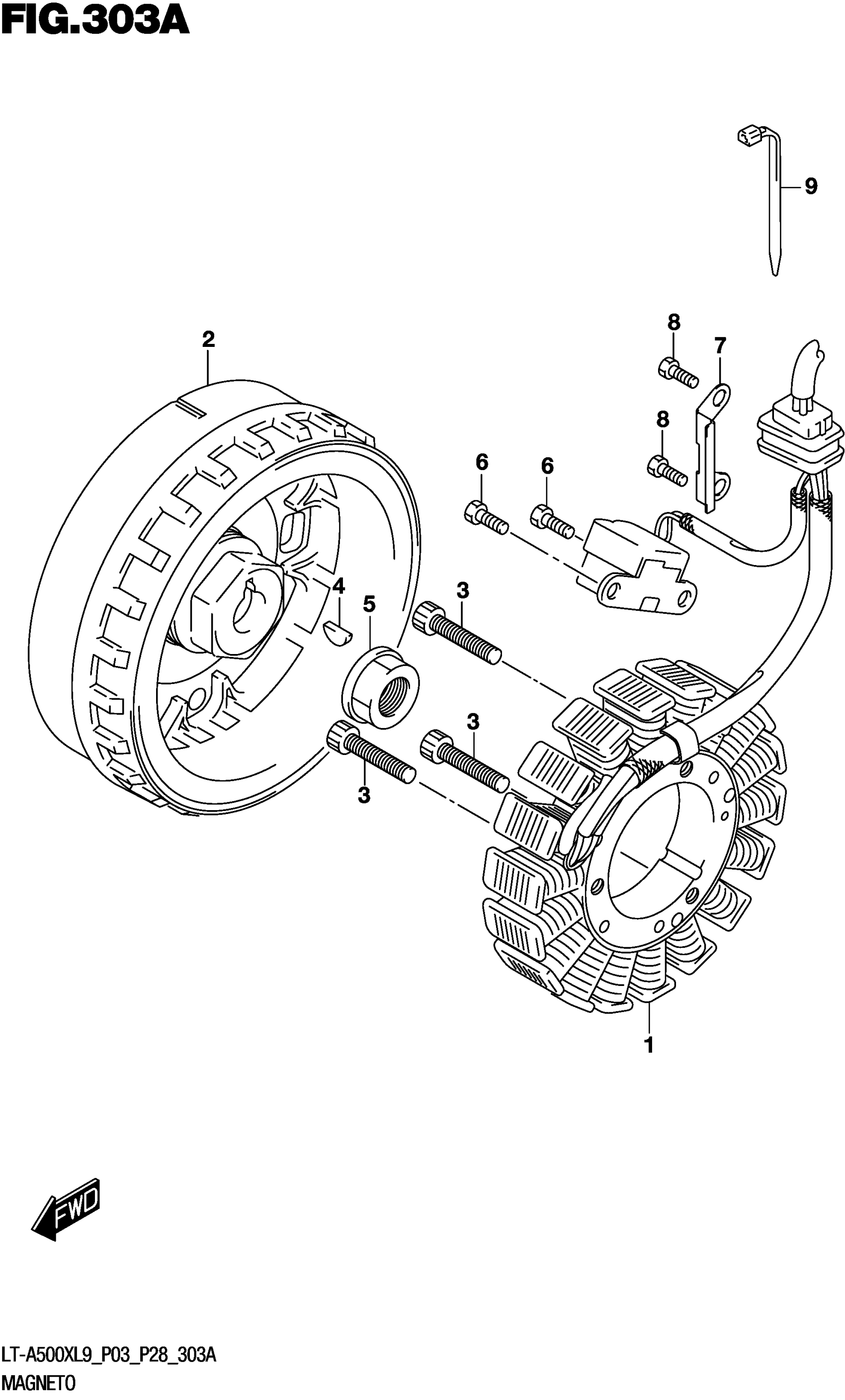

Suzuki LT-A500XL9 (2019) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY, MAGNETO

32101-35K00

$631.67

2

ROTOR ASSY

32102-11H00

$704.90

3

BOLT

07130-0635A

$3.16

4

KEY

09420-05007

$4.60

5

NUT,MAGNETO ROTOR

31792-11H00

$11.78

6

BOLT (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO LEAD

32371-11H00

$5.05

8

BOLT (5X10)

09100-05019

$1.93

9

CLAMP (L:95)

09407-11401

$2.63
