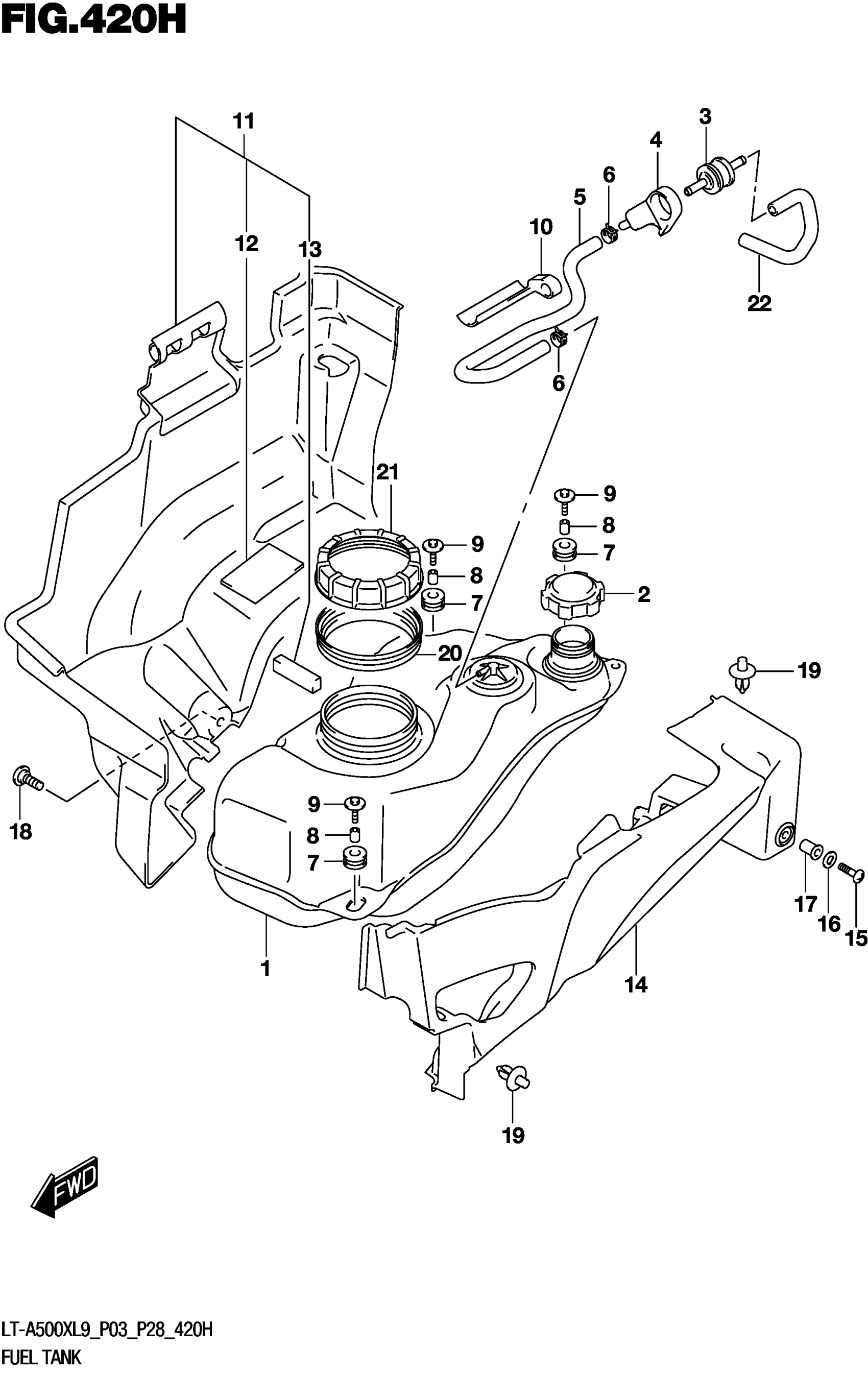

Suzuki LT-A500XL9 (2019) FUEL TANK (LT-A500XPZL9 P28) Diagram

TANK ASSY, FUEL

44100-31G21

$268.05

CAP ASSY, FUEL TANK FILLER

44200-31G00

$50.07

VALVE,2 WAY CHECK

85451-75100

$46.03

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

$4.95

HOSE, FUEL TANK BREATHER NO.1

44434-34K00

$35.13

CLIP (ID:9.4,H:8)

09401-09403

$2.09

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.69

SPACER (6.5X10X14)

09180-06293

$2.68

BOLT (6X30)

09116-06050

$2.37

CUSHION, FUEL TANK SIDE

44541-34K00

$17.53

COVER, FUEL TANK LOWER

44390-34K00

$210.00

.CUSHION, FUEL TANK NO.1

44542-10G00

Unavailable

.CUSHION, FR FENDER SIDE

53146-05G00

$8.21

COVER, OUTER

44391-34K00

$31.12

SCREW

02142-0520B

$1.82

WASHER (5.5X20X1.4)

09160-05046

$1.90

NUT (M5)

09159-05019

$6.63

SCREW (6X16)

09139-06137

$2.80

CLIP (D:2.4,ID:23.7)

09409-07333

$2.37

PACKING, FUEL PUMP

44596-26J00

$37.60

RETAINER, FUEL PUMP

44597-26J00

$33.95

HOSE, FUEL TANK BREATHER NO.1

44424-18K01

Unavailable
