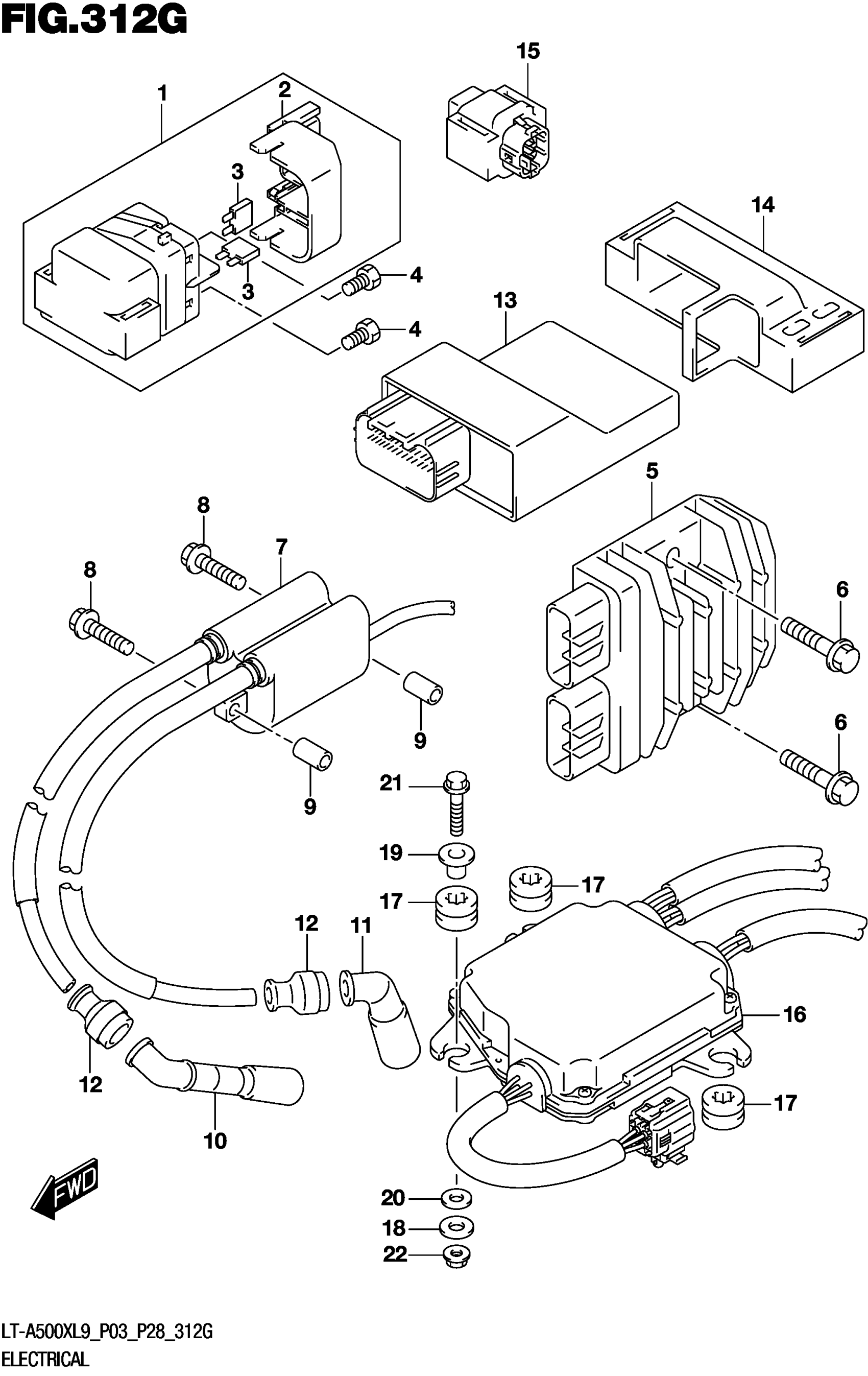

Suzuki LT-A500XL9 (2019) ELECTRICAL (LT-A500XPZL9 P03) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-26J01.

32800-26J02

$262.27

6

BOLT (6X25)

01550-0625A

$1.97

7

COIL ASSY, IGNITION

33410-40H01

$106.57

8

BOLT

01547-0640A

$2.32

9

SPACER (6.4X10X18)

09180-06195

$3.68

10

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

11

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT, FI This part replaces 32920-35K00.

32920-35K01

$614.78

14

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

15

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

16

CONTROL UNIT, EPS

32910-35K00

$394.57

17

CUSHION, EPS

32912-31G00

Unavailable

18

WASHER (6.5X15X1.0)

09160-06094

$1.49

19

WASHER

09169-06075

$3.68

20

WASHER

09169-06076

$3.05

21

BOLT (L:30)

01550-0630A

$2.32

22

NUT (6X12)

08316-1006A

$2.19
