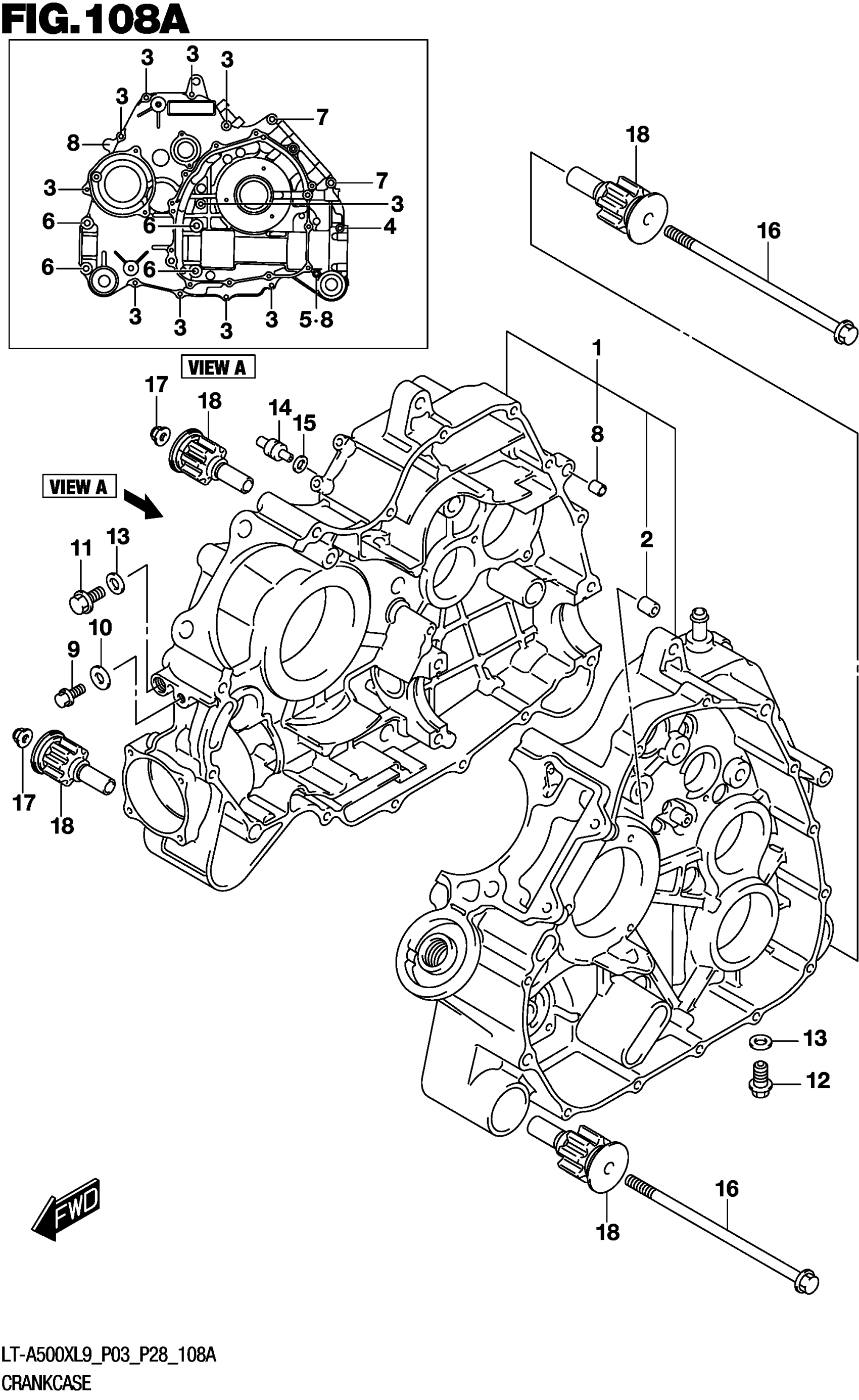

Suzuki LT-A500XL9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-11871

$1,827.50

2

PIN (8.2X10X13)

09206-10016

$7.62

3

BOLT

01547-0650A

$2.51

4

.BOLT

01547-0680A

$3.58

5

.BOLT

01547-0690A

$2.95

6

.BOLT

01550-0850A

$3.98

7

BOLT

01550-0875A

$3.37

8

PIN

04211-11169

$1.82

9

BOLT (8X12)

01550-0812A

$2.38

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.70

11

PLUG (12X10)

09247-12006

$2.80

12

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

$2.80

13

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

14

JET,T/M OIL GALLERY

09493-20014

$18.33

15

O-RING (D:1.2,ID:4)

09280-04004

$1.76

16

BOLT (10X195)

09103-10118

$11.91

17

NUT (M10)

09159-10115

$3.31

18

BUSH, ENG MTG

11651-31G10

$21.60
