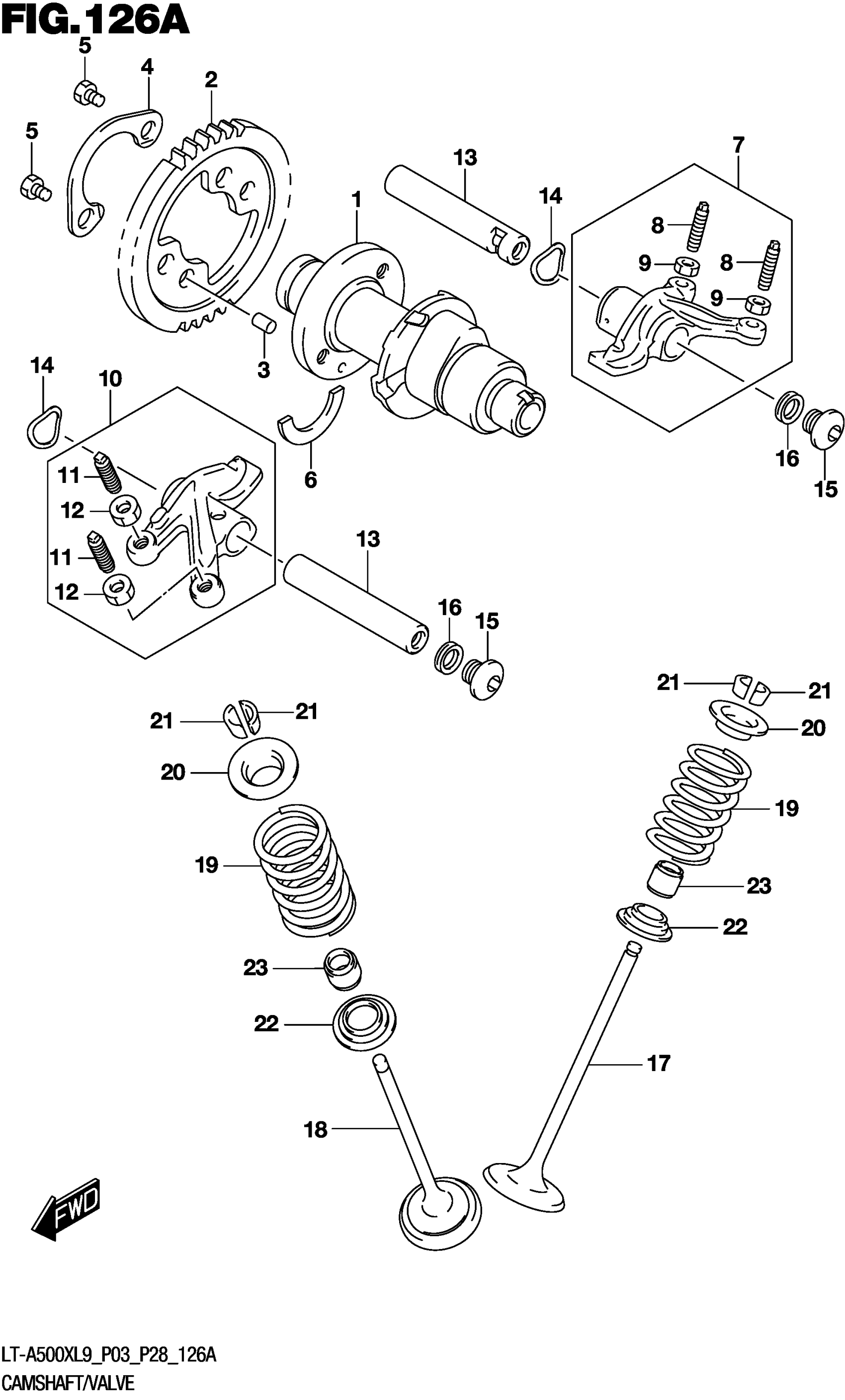

Suzuki LT-A500XL9 (2019) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-31H00

$452.83

2

SPROCKET, CAM SHAFT (NT:42)

12741-09F00

$62.08

3

PIN (5X8)

09261-05005

$1.43

4

WASHER,SPROCKET

12747-44B00

$2.80

5

BOLT (6X10.5)

09100-06166

$3.30

6

C-RING

09390-22002

$2.33

7

ARM, VALVE ROCKER INTAKE

12840-31H10

Unavailable

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

10

ARM, VALVE ROCKER EXHAUST

12850-31H10

$90.90

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$34.90

14

WASHER (12.7X18.1X0.2)

09164-12018

$1.41

15

PLUG (14X12)

09248-14011

$2.80

16

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

17

VALVE,INTAKE

12911-14D10

$34.90

18

VALVE,EXHAUST

12912-14D01

$55.29

19

SPRING, VALVE

12921-03G00

$11.33

20

RETAINER,VALVE SPRING

12931-27A20

$9.17

21

COTTER,VALVE

12932-27A00

$2.20

22

SEAT,VALVE SPRING

12933-81400

$4.86

23

OIL SEAL (5X10X9.7)

09289-05011

$5.70
