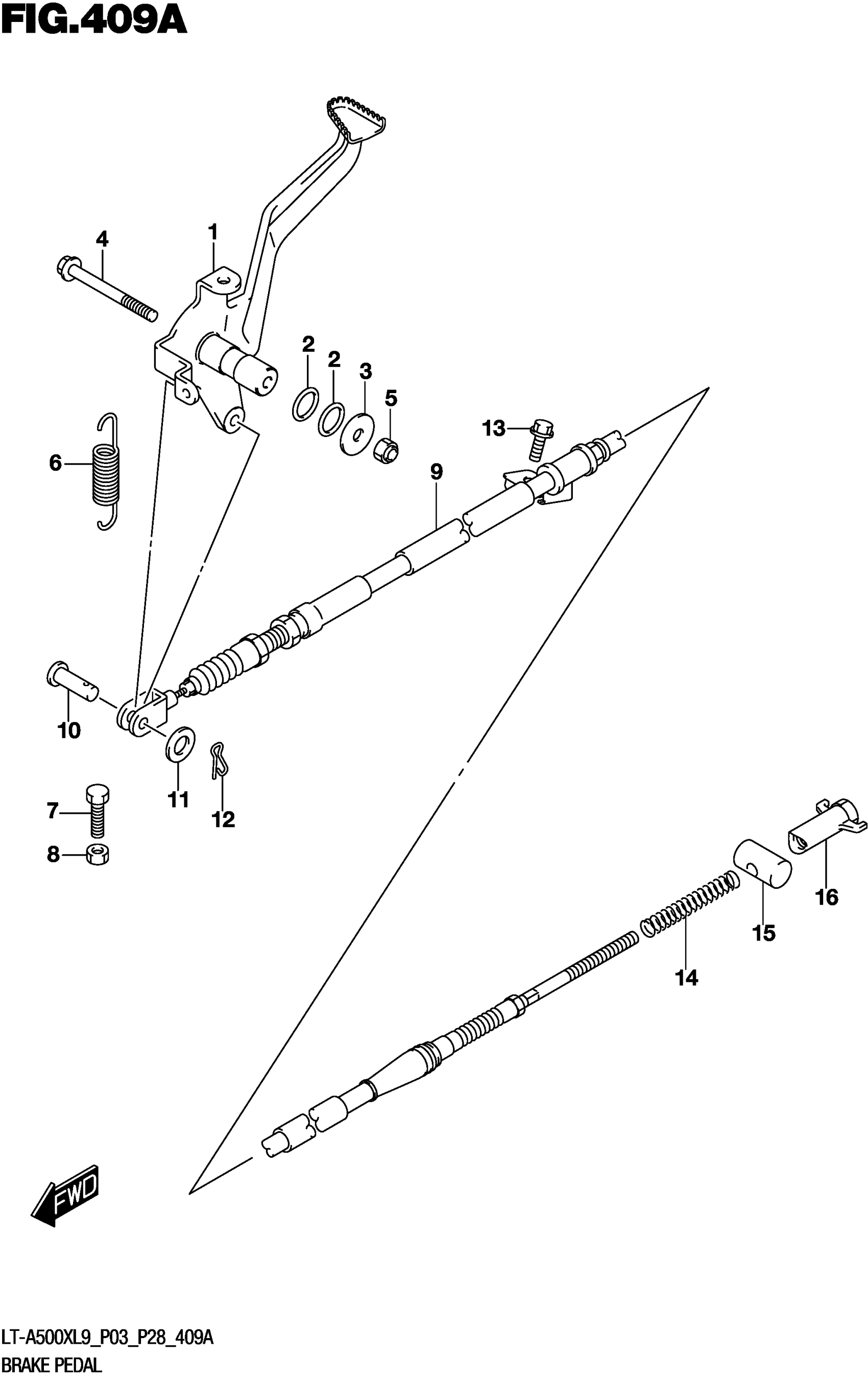

Suzuki LT-A500XL9 (2019) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31G10

$48.10

2

O RING (D:2.5,ID:13.8)

09280-14011

$4.30

3

WASHER (6.5X22X2.3)

09160-06138

$1.92

4

BOLT (6X65)

09103-06195

$4.35

5

.NUT

08319-2106A

$1.89

6

SPRING

09443-11036

$5.36

7

BOLT

01500-0620A

$1.77

8

NUT

08310-0006A

$1.83

9

CABLE, REAR BRAKE

58510-31G00

$79.43

10

PIN (L:17.5)

09200-05001

$1.52

11

WASHER

08322-0106B

$2.24

12

CLIP

09385-06012

$1.89

13

BOLT

01547-0616A

$2.01

14

SPRING

09440-08042

$2.80

15

PIN

09209-13006

$4.73

16

NUT

09150-06015

$3.26
