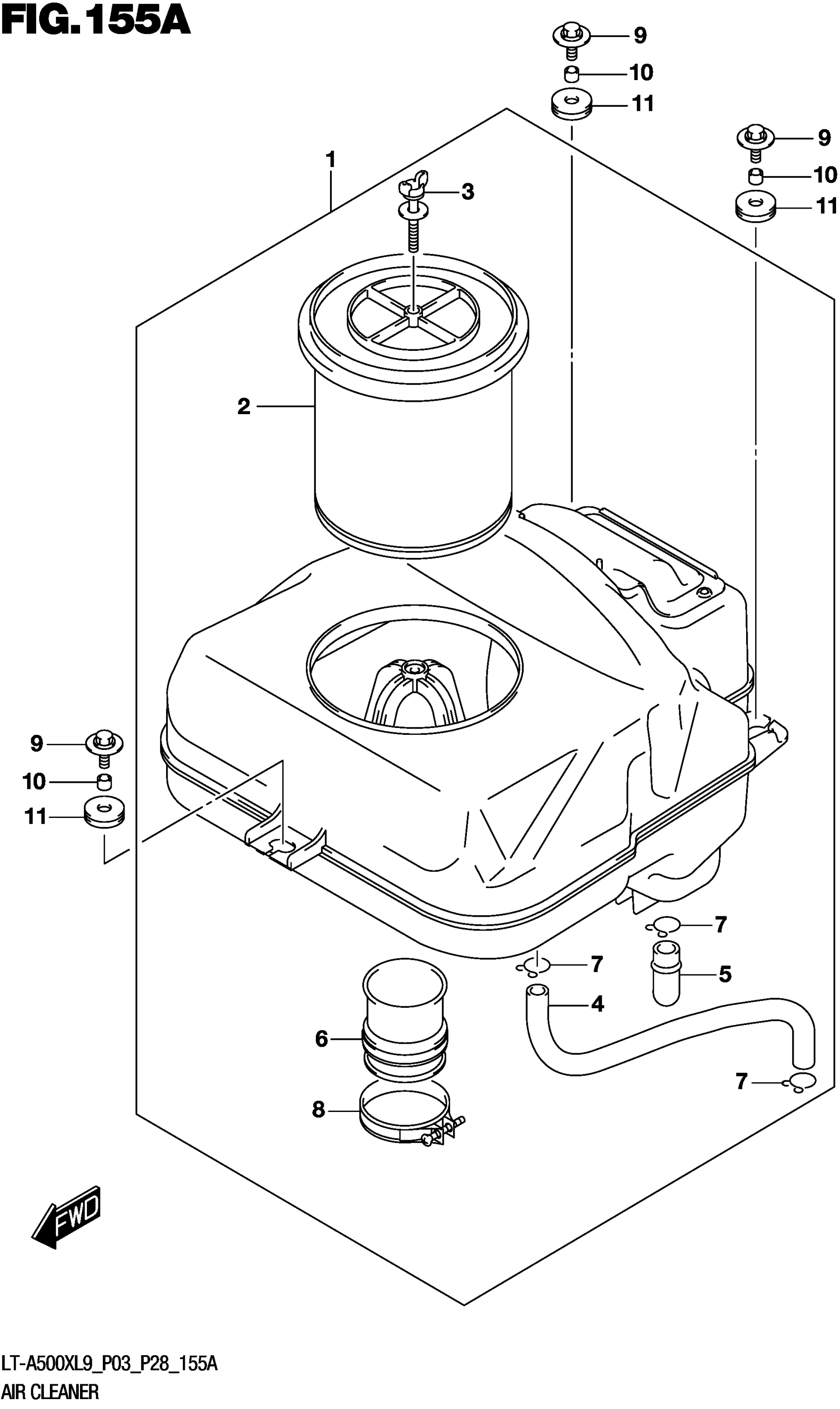

Suzuki LT-A500XL9 (2019) AIR CLEANER Diagram

#

Description

Price

1

CLEANER ASSY, AIR

13700-34K10

$297.70

2

.FILTER ASSY

13780-31G30

$67.54

3

.BOLT, WING

13831-31G00

$7.38

4

.TUBE, BREATHER This part replaces 13853-31G00.

13853-31G01

$23.47

5

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

6

.TUBE, OUTLET This part replaces 13881-11H01.

13881-11H02

$13.42

7

.CLIP (ID:14.5)

09401-14101

$2.37

8

.CLAMP (L:25)

09402-52208

$4.84

9

BOLT (6X20)

09116-06149

$4.12

10

SPACER (6.1X8X9.5)

09180-06248

$2.13

11

CUSHION (8X26X7)

09320-08028

$2.80
