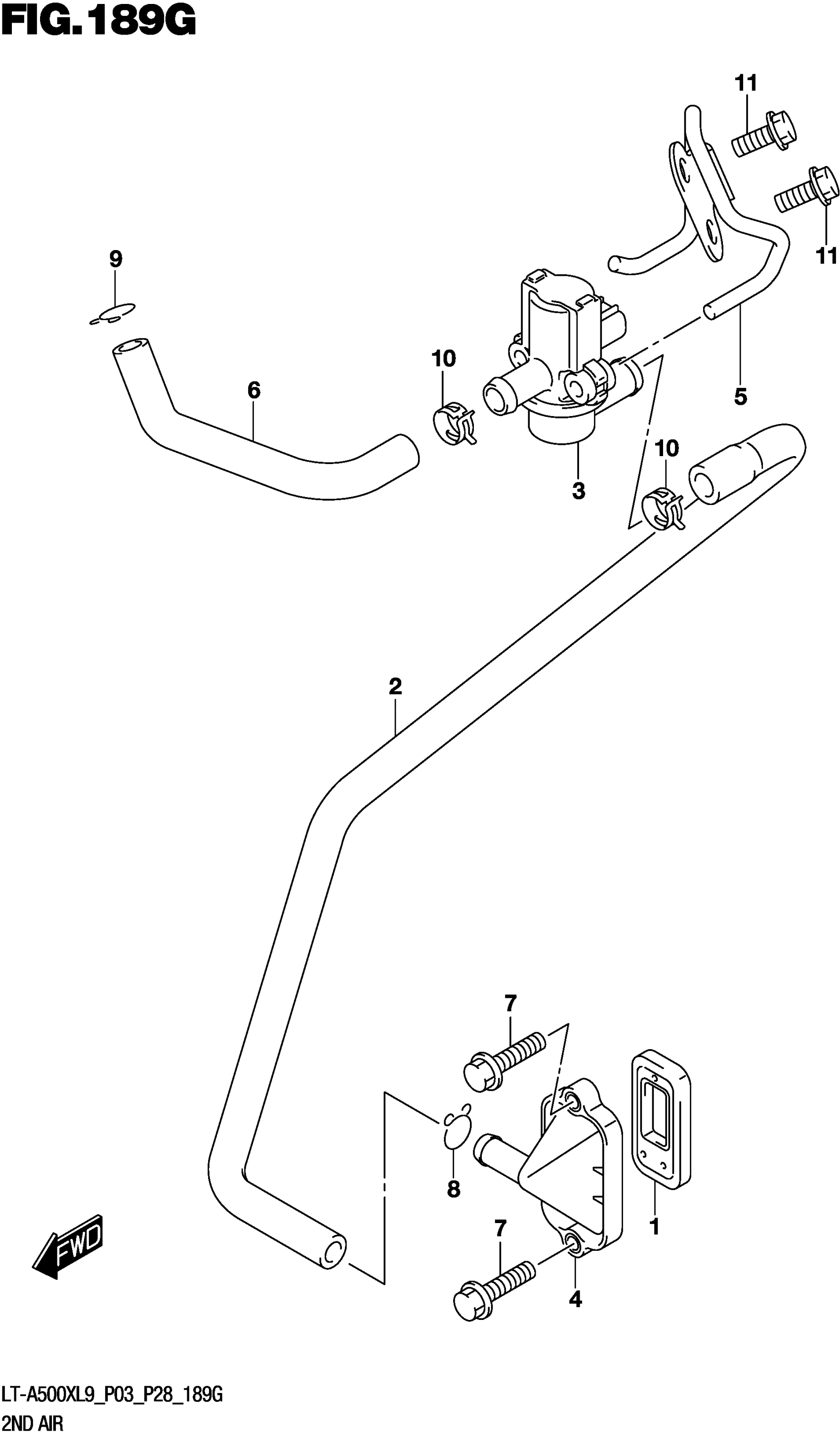

Suzuki LT-A500XL9 (2019) 2ND AIR (LT-A500XPZL9 P03) Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$40.40

2

HOSE, 2ND AIR VALVE

18461-11H00

$31.88

3

VALVE ASSY, AIR CUT

18510-29G60

$137.15

4

COVER,2ND AIR

18531-06G01

$12.63

5

BRACKET, 2ND AIR VALVE

18610-31G00

Unavailable

6

HOSE, 2ND AIR CLNR

18711-31G20

$14.30

7

BOLT (6X20)

09103-06201

$2.54

8

CLIP (ID:15.5)

09401-15101

$2.28

9

CLIP

09401-17201

$3.42

10

CLIP

09401-17401

$1.01

11

BOLT

01550-0610A

$1.97
