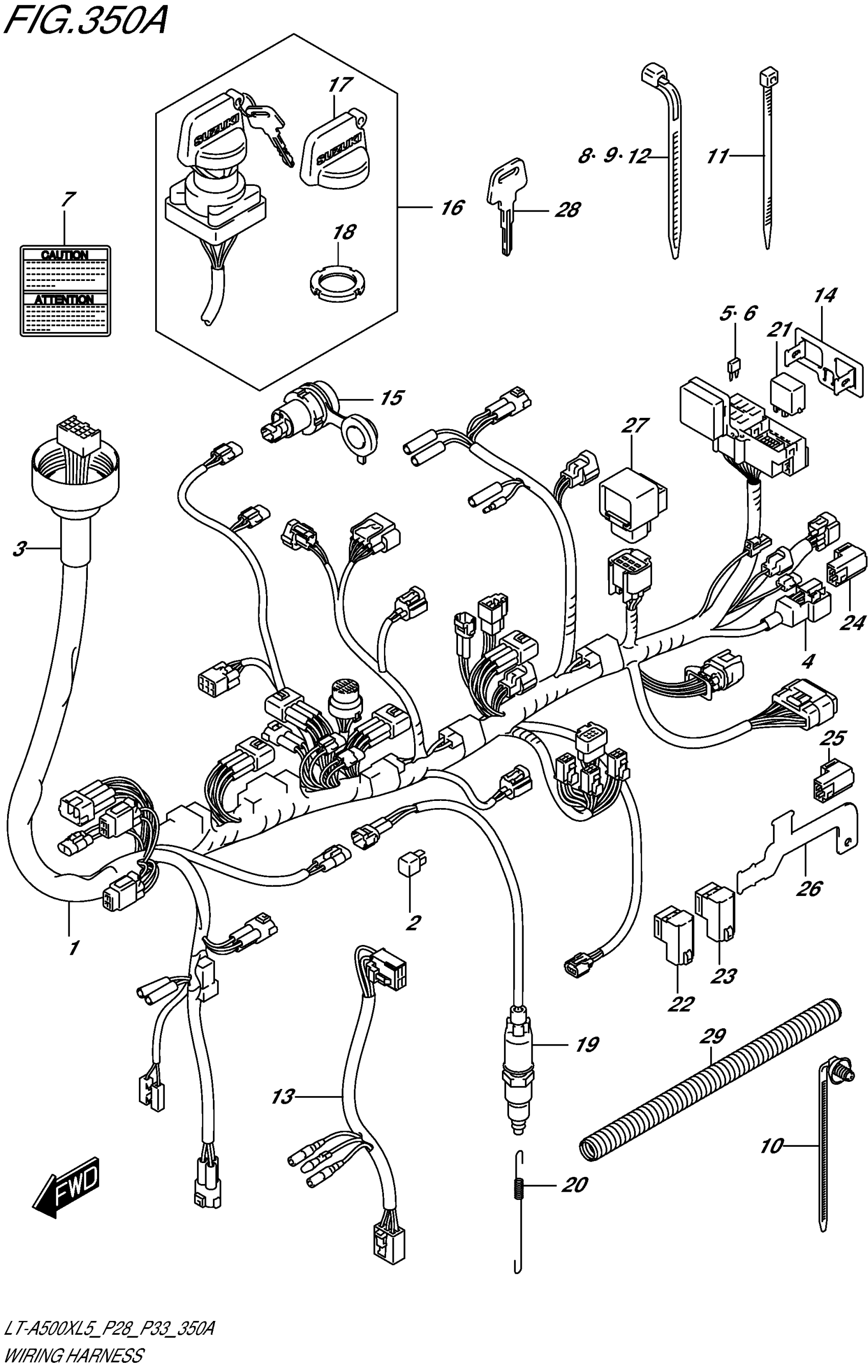

Suzuki LT-A500XL5 (2015) WIRING HARNESS (LT-A500XL5 P28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-11H60

$686.27

2

RECTIFIER ASSY

32800-16A00

$21.12

3

COVER, SPEED

36618-31G00

Unavailable

4

COVER, CONNECTOR

36618-31G10

$10.50

5

FUSE (10A)

09481-10501

$2.07

6

FUSE (15A)

09481-15501

$2.07

7

LABEL, POWER SOUECE TERMINAL

38852-03G20

Unavailable

8

CLAMP (L:95)

09407-11401

$2.87

9

CLAMP (L:125)

09407-14403

$2.24

10

CLAMP (L:154)

09407-17403

$4.63

11

CLAMP (L:145)

09407-14407

$2.80

12

CLAMP (L:190)

09407-19401

$3.32

13

WIRE, FRONT BRAKE SW LEAD

36855-27H00

$55.55

14

BRACKET, FUSE BOX

36744-31G00

Unavailable

15

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$16.30

16

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$75.25

17

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

18

.NUT,IGNITION SWITCH

37112-24500

$12.60

19

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

20

SPRING

09443-06080

$6.00

21

RELAY,NEUTRAL START

38730-09F00

$42.62

22

RELAY ASSY,FUEL | FOR NEUTRAL START This part replaces 38740-31G01.

38740-31G02

$34.90

23

RELAY ASSY,FUEL | FOR DEF LOCK This part replaces 38740-31G01.

38740-31G02

$34.90

24

RELAY ASSY,FUEL | FOR FUEL PUMP This part replaces 38740-31G01.

38740-31G02

$34.90

25

RELAY ASSY | FOR FAN MOTOR This part replaces 38740-31G10.

38740-31G11

$25.85

26

BRACKET, RELAY

38741-31G30

Unavailable

27

RELAY ASSY, DRIVE

38750-31G00

$111.61

28

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

28

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

28

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

28

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38

29

GUIDE, WIRING HARNESS

36619-31G00

$20.42
