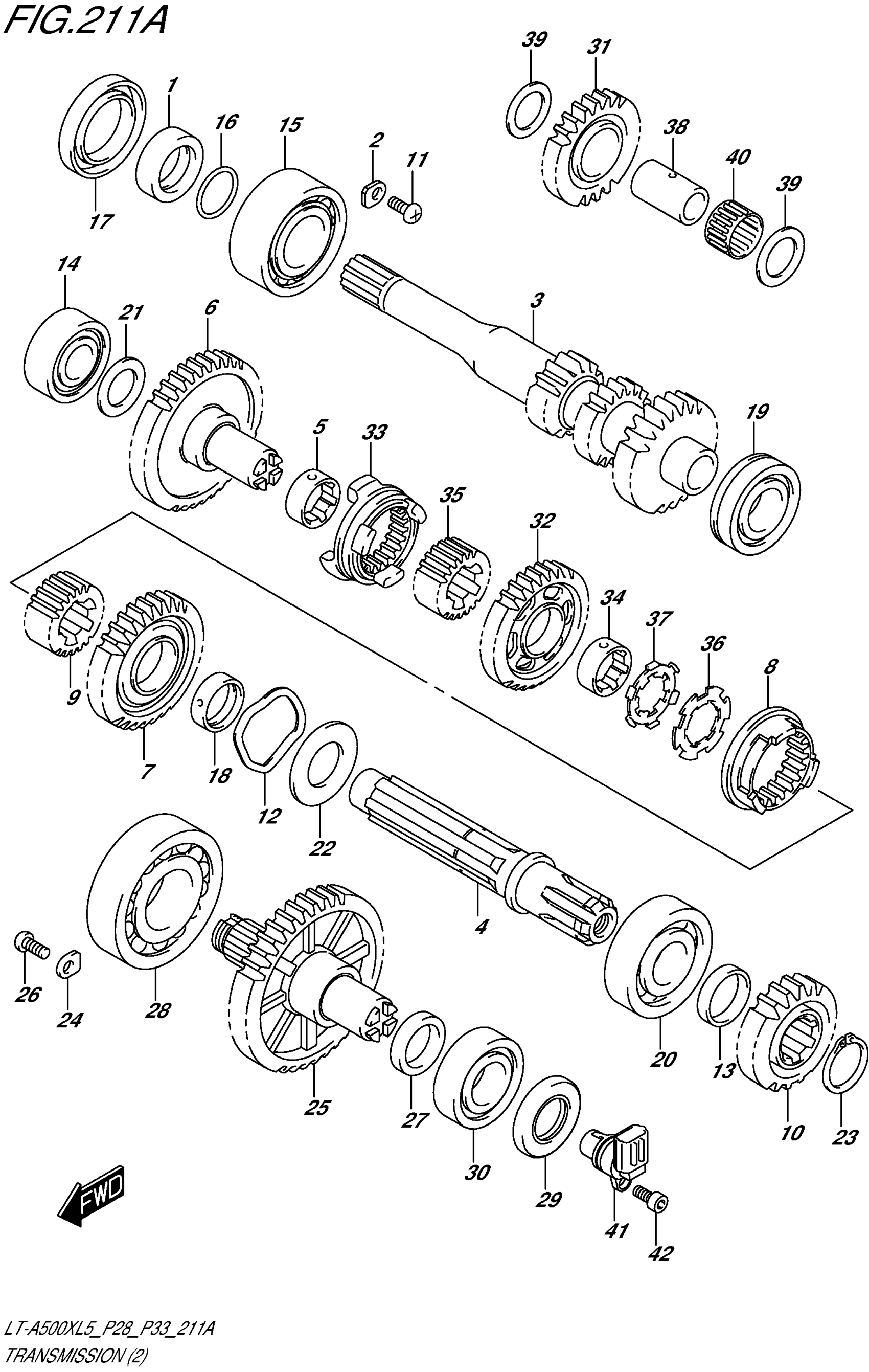

Suzuki LT-A500XL5 (2015) TRANSMISSION (2) Diagram

SPACER, DRIVE SHAFT

21102-31G00

$25.95

RETAINER, DRIVE SHAFT RH

24741-21A00

$2.81

SHAFT, DRIVE (NT:25/16/16)

29111-11H01

Unavailable

SHAFT, SUB T/M COUNTER

29131-31G00

Unavailable

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

$22.22

GEAR, SUB T/M DRIVEN LOW (NT:41)

29311-31G00

$133.70

GEAR, SUB T/M DRIVEN HIGH (NT:31)

29321-31G00

$156.07

DOG, GEAR SHIFT HIGH

29331-31G10

$79.27

SPACER, SUB T/M SELECT

29332-31G00

$44.07

GEAR, SUB T/M DRIVE NO.2 (NT:18)

29411-31H00

$65.12

SCREW (6X12)

09125-06122

$2.44

WASHER

09164-34001

$7.38

SPACER (25X30X7)

09180-25097

$10.20

BEARING (20X47X14)

09262-20139

$44.97

BEARING (25X62X17)

09262-25153

$70.70

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.03

OIL SEAL (38X56X7)

09283-38025

$31.85

BUSH, SUB T/M DRIVEN GR

24252-19F00

$17.12

BEARING (25X52X15)

09262-25142

$36.17

BEARING (25X62X17)

09262-25073

$25.92

WASHER

08211-20363

$3.18

WASHER

08211-25463

$3.78

CIRCLIP

08331-31259

$2.48

RETAINER, SEC DRIVE SHAFT

24741-21A00

$2.81

SHAFT, SUB T/M OUTPUT (NT:37)

29120-31H00

$293.10

SCREW (6X12)

09125-06122

$2.44

SPACER (25X34X5.5)

09180-25083

$14.18

BEARING (30X72X19)

09262-30077

$58.43

SEAL,OIL (25X45X5)

09283-25076

$10.19

BEARING (25X52X15)

09262-25003

$24.83

GEAR, REVERSE IDLE (NT:23)

24561-31G20

$102.17

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

$114.82

DOG, SUB T/M SELECT SL

24581-31G00

$86.08

BUSH, REVERSE DRIVEN GEAR

29215-07G00

$22.22

SPACER, REVERSE SELECT

29332-31G00

$44.07

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

WASHER

09169-25001

$2.70

SHAFT, REVERSE IDLE

24551-31G00

$18.58

SHIM (20X30X1)

09181-20195

$2.60

BEARING (20X24X13)

09263-20060

$20.73

SENSOR, SPEED

34990-31G01

$112.55

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
