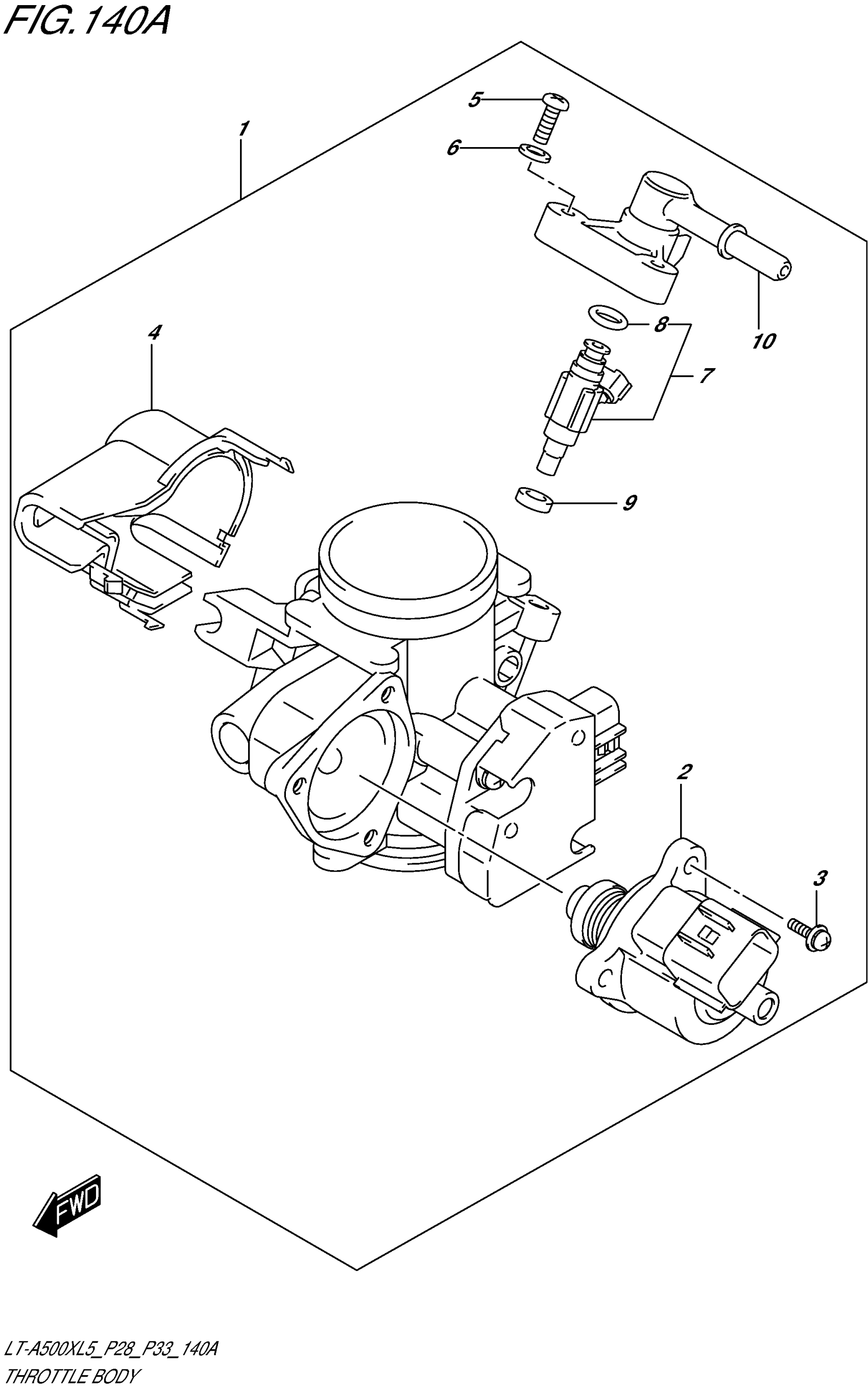

Suzuki LT-A500XL5 (2015) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE This part replaces 13400-31H10.

13400-31H11

$791.97

2

MOTOR, ISC STEPPING

13520-31G00

$205.44

3

SCREW

13601-13G00

$2.95

4

COVER

13578-31G00

$16.13

5

SCREW

13601-11J00

$4.79

6

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

7

INJECTOR ASSY, FUEL

15710-31G10

$252.98

8

O RING

15717-31G00

$10.33

9

SEAL

15722-29G00

$10.93

10

DELIVERY PIPE

15731-31G10

$205.73
