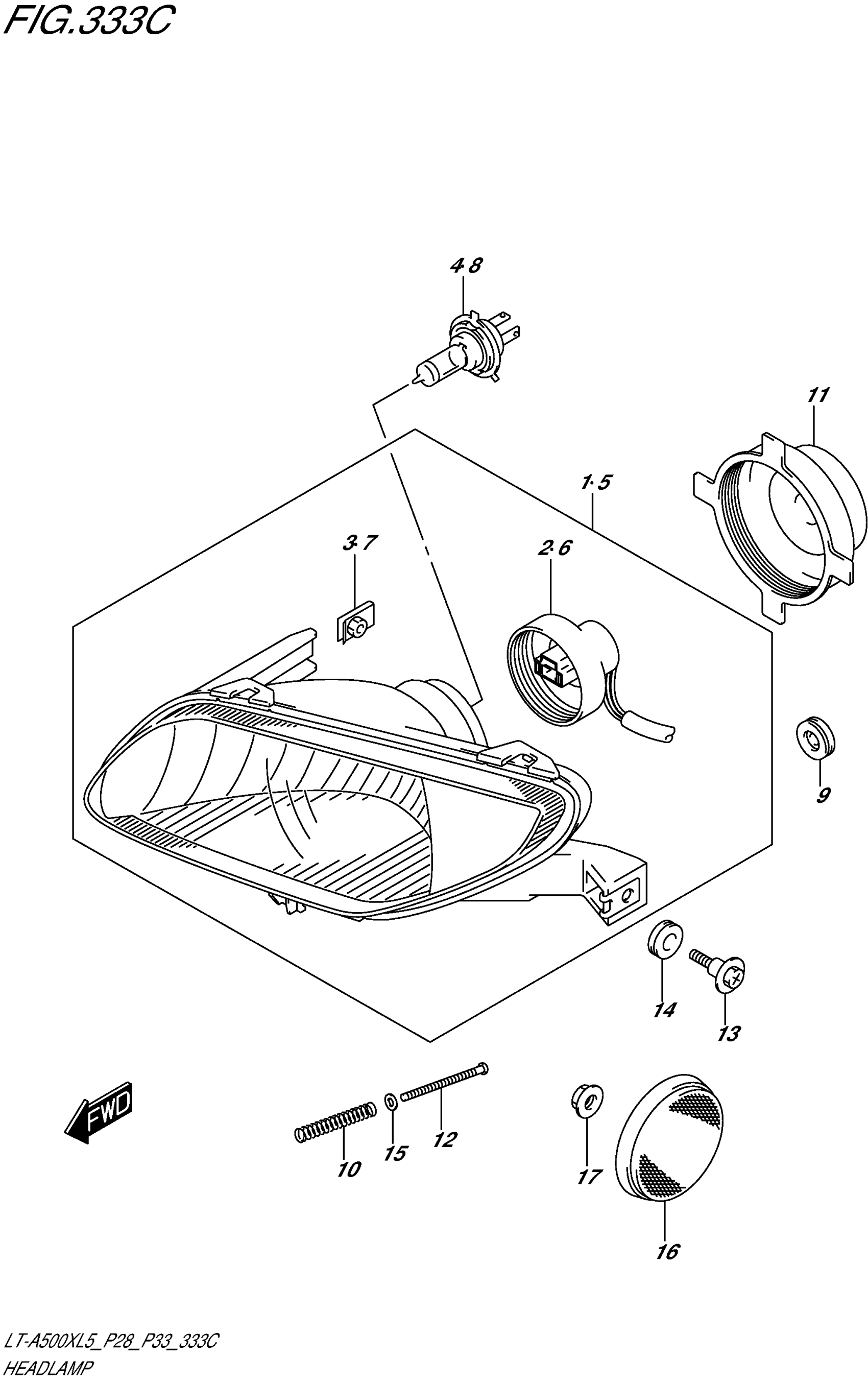

Suzuki LT-A500XL5 (2015) HEADLAMP (LT-A500XZL5 P28) Diagram

#

Description
Price

1

HEADLAMP ASSY, RH

35100-31G92-999

$102.70

2

CORD ASSY, RH

35171-31GM1

$30.10

3

NUT

35157-31G90

$5.30

4

BULB (12V,35/35W)

09471-12101

$64.80

5

HEADLAMP ASSY, LH

35300-31G92-999

$102.70

6

CORD ASSY, LH

35171-31GH1

$38.48

7

NUT

35157-31G90

$5.30

8

BULB (12V,35/35W)

09471-12101

$64.80

9

GROMMET

09308-07011

$2.62

10

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

12

SCREW (4X50)

09125-04031

$2.28

13

SCREW (6X22.5)

09139-06118

$3.25

14

CUSHION

09320-10501

$6.23

15

WASHER

08322-0104A

$1.91

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

17

NUT

08316-1005B

$2.50
