2015 Suzuki LT-A500XL5 Gasket SET Diagram

← All diagrams

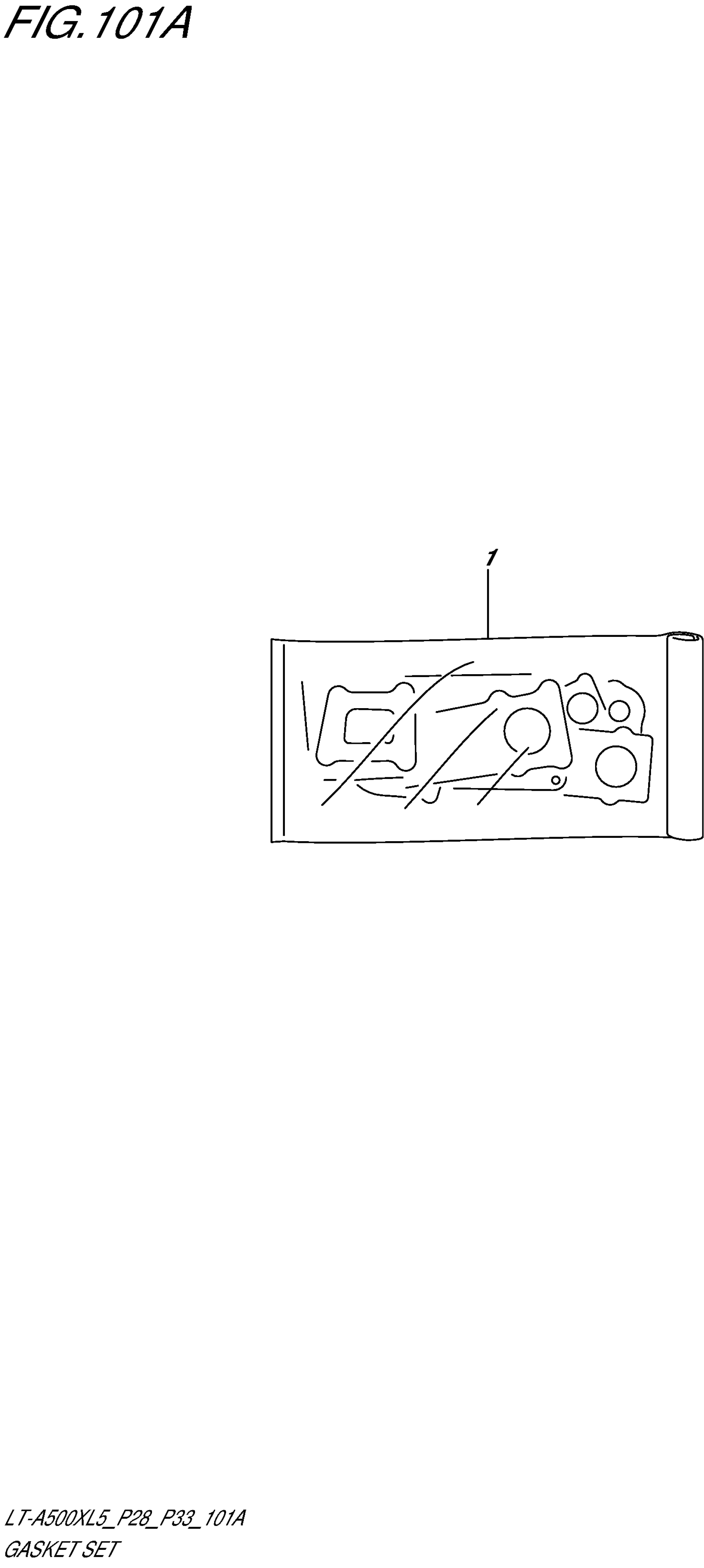

Find the part on the Gasket SET diagram for your 2015 Suzuki LT-A500XL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki LT-A500XL5 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11400-11830

1

$130.28

In stock

2

1

$43.55

In stock

3

.O RING,INSPECTION CAP | NOT ILLUSTRATED

11177-14D01

2
Out of stock

4

1

$18.93

In stock

5

1

$13.99

In stock

6

1

$28.77

In stock

7

1

$3.24

In stock

8

.GASKET,EXHAUST | NOT ILLUSTRATED

14181-18C00

1
Out of stock
