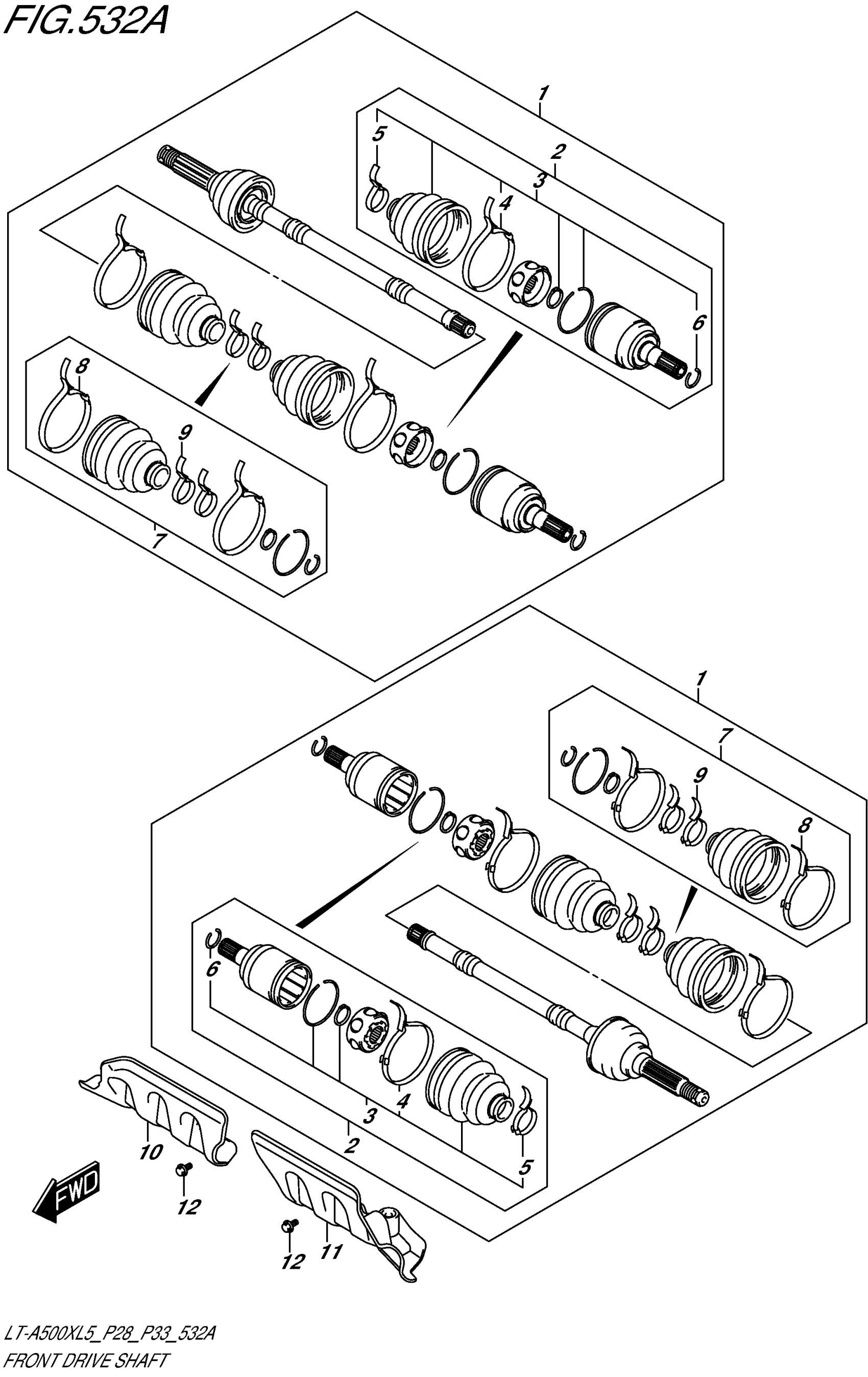

Suzuki LT-A500XL5 (2015) FRONT DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, FRONT DRIVE This part replaces 54901-31G40.

54901-31G41

$422.90

2

.JOINT SET This part replaces 54933-31G12.

54933-31G13

$273.70

3

..BOOT SET, INNER This part replaces 54931-31G12.

54931-31G13

$65.77

4

BAND, BOOT

44121-31G30

Unavailable

5

BAND, BOOT

44124-31G00

Unavailable

6

CIRCLIP

54925-19B01

$6.38

7

.BOOT SET, OUTER This part replaces 54930-31G13.

54930-31G14

$96.82

8

BAND, BOOT

44121-31G00

Unavailable

9

BAND, BOOT

44124-31G00

Unavailable

10

PROTECTOR,FR DRIVE SHAFT,R This part replaces 54903-31G00.

54903-31G01

$21.86

11

PROTECTOR,FR DRIVE SHAFT,L This part replaces 54904-31G00.

54904-31G01

$22.17

12

BOLT (6X12)

09111-06085

$4.54
