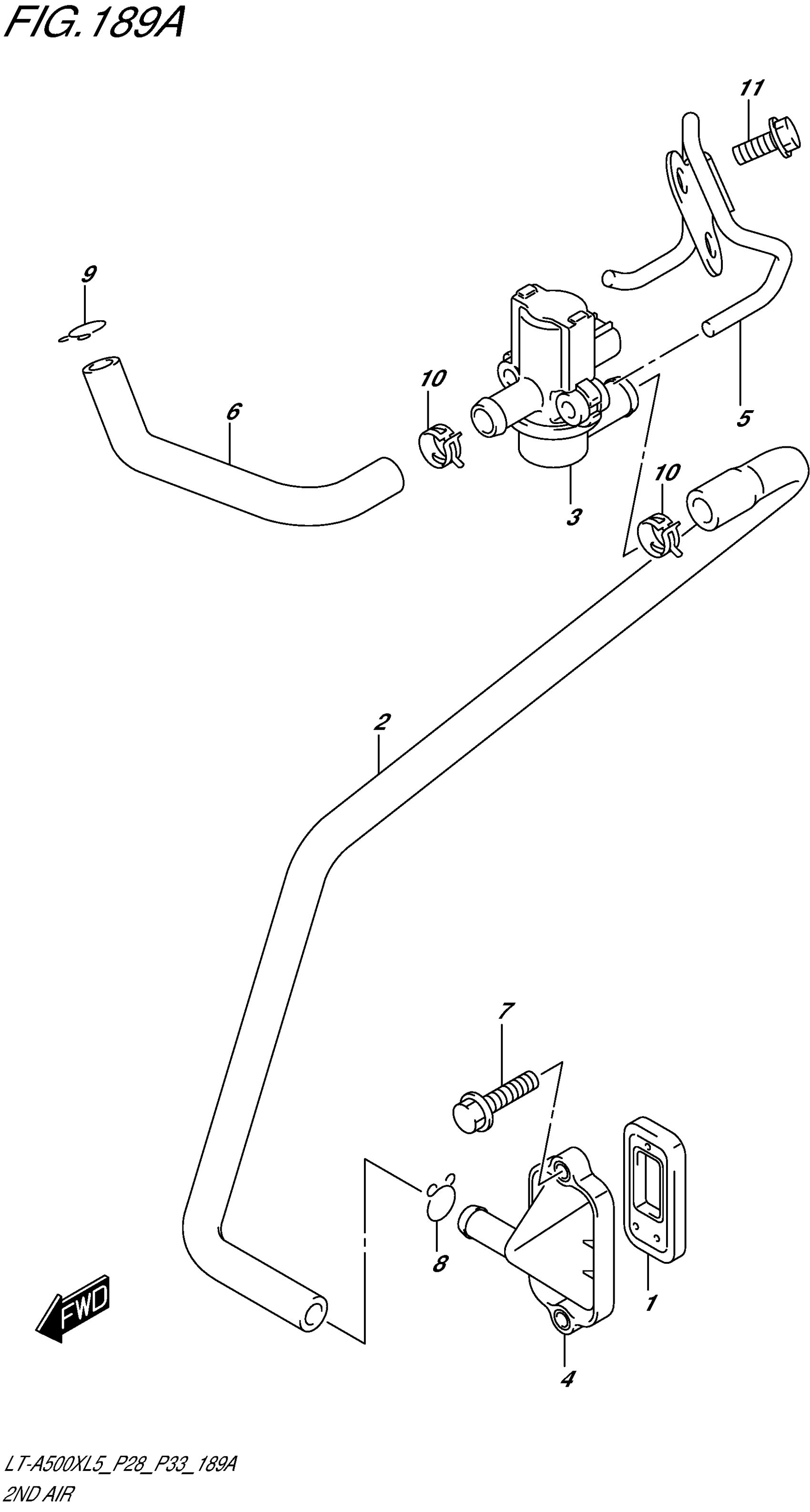

Suzuki LT-A500XL5 (2015) 2ND AIR Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

2

HOSE, 2ND AIR VALVE

18461-11H00

$28.25

3

VALVE ASSY, AIR CUT

18510-29G60

$121.52

4

COVER,2ND AIR

18531-06G01

$13.41

5

BRACKET, 2ND AIR VALVE

18610-31G00

Unavailable

6

HOSE, 2ND AIR CLNR

18711-31G00

$12.70

7

BOLT (6X20)

09103-06201

$2.64

8

CLIP

09401-15101

$2.26

9

CLIP

09401-17201

$3.15

10

CLIP

09401-17401

$3.08

11

BOLT

01550-0610A

$1.97
