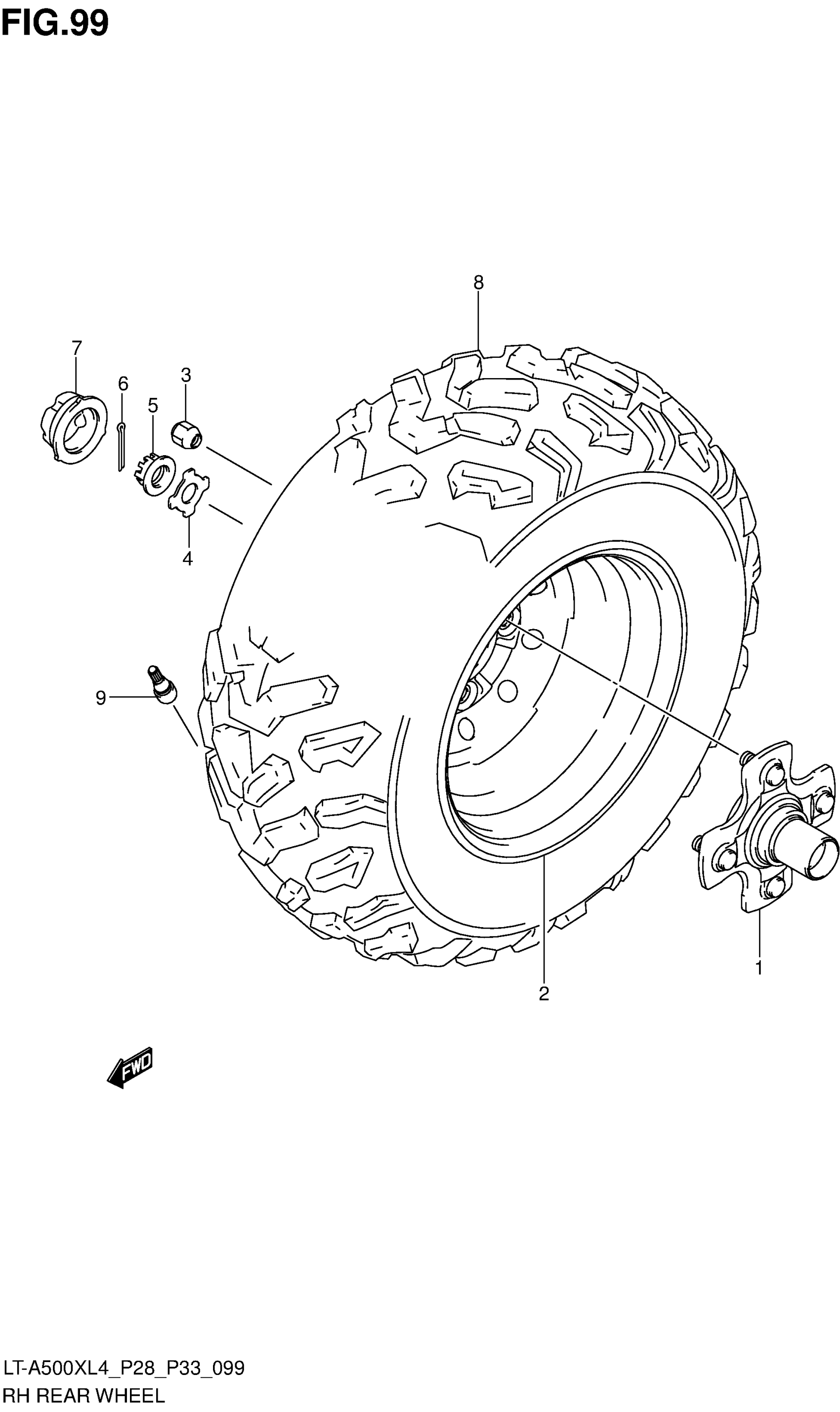

Suzuki LT-A500XL4 (2014) RH REAR WHEEL (LT-A500XL4 P33) Diagram

HUB, REAR WHEEL

64110-31G10

$247.50

RIM, REAR WHEEL (12X7.5AT) (BLACK) | FOR YT9,YLG

65310-11H00-291

$377.45

RIM, REAR WHEEL (12X7.5AT) (SILVER) | FOR YU1,YPW,YLZ

65310-11H00-YUM

$271.28

NUT

09140-10021

$2.01

WASHER

64723-03G00

$23.48

NUT

09141-20008

$17.00

COTTER PIN

04111-4035A

$1.37

CAP,WHEEL CENTER

54725-09F01

$9.11

TIRE, REAR (AT25X10-12) This part replaces 65110-11H00.

65110-31G20

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
