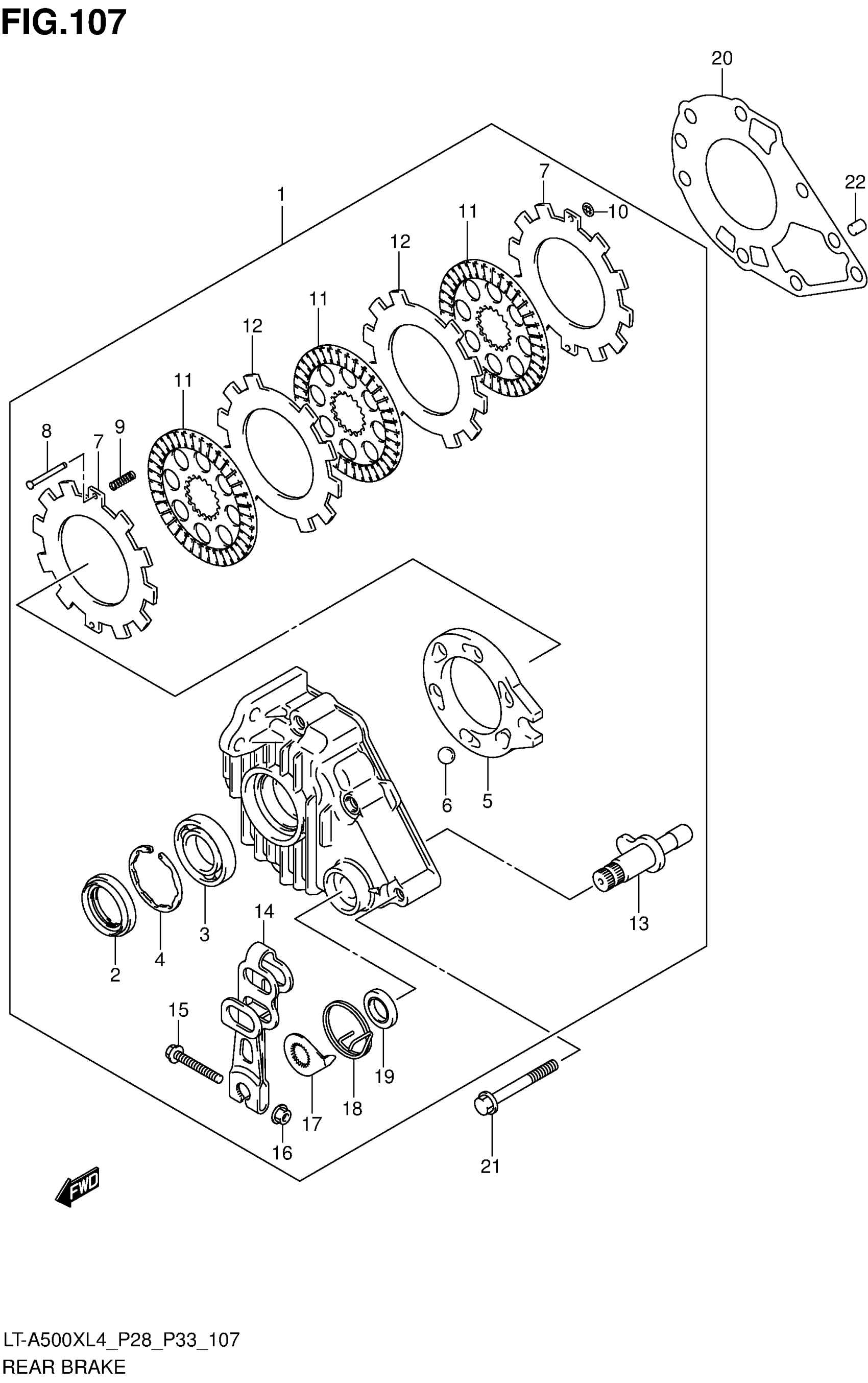

Suzuki LT-A500XL4 (2014) REAR BRAKE Diagram

#

Description
Price

1

BRAKE ASSY, REAR

64200-31G20

$881.75

2

OIL SEAL (34X52X9)

09283-34008

$20.72

3

BEARING

08113-60050

$23.65

4

CIRCLIP, RR BRAKE CASE

64215-31G00

$8.93

5

PLATE, PRESSURE

64292-31G00

Unavailable

6

BALL

64295-31G00

$10.95

7

PLATE, SIDE

64293-31G00

$31.00

8

PIN, SIDE PLATE

64297-31G00

$6.92

9

SPRING, SIDE PLATE

64296-31G00

$6.35

10

NUT, SIDE PLATE

64298-31G00

$5.02

11

PLATE, FRICTION

64420-31G00

$76.68

12

PLATE, SEPARATOR

64294-31G00

$29.10

13

CAM, REAR BRAKE

64440-31G01

Unavailable

14

LEVER, RR BRAKE CAM

64451-31G10

$45.48

15

BOLT, RR BRAKE CAM LEVER

64455-31G00

Unavailable

16

NUT, RR BRAKE CAM LEVER

64456-31G00

Unavailable

17

PLATE, BRAKE LINING INDICATOR

64492-31G00

Unavailable

18

SPRING, RR BRAKE CAM LEVER

64484-31G00

$14.77

19

SEAL, RR BRAKE CAM

64443-31G01

$29.10

20

GASKET, RR BRAKE CASE

64124-31G00

$17.32

21

BOLT (8X53)

09103-08332

$4.60

22

PIN (9X10)

09261-09002

$3.50
