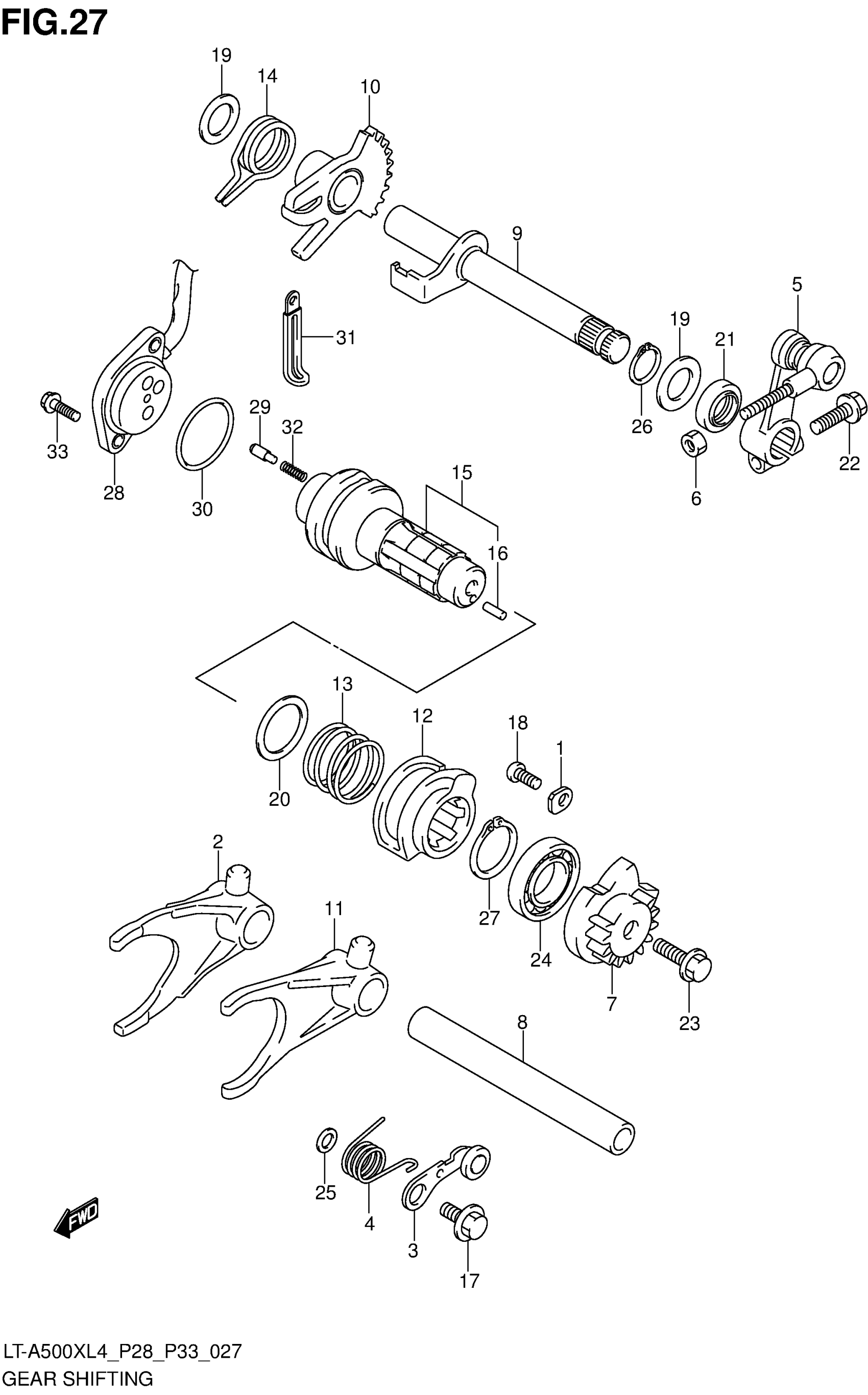

Suzuki LT-A500XL4 (2014) GEAR SHIFTING Diagram

#

Description
Price

1

RETAINER, SUB T/M SHIFT CAM

24741-21A00

$2.81

2

FORK, REVERSE GR SHIFT

25240-31G10

$71.81

3

STOPPER, SHIFT CAM

25350-31G00

Unavailable

4

SPRING,SHIFT

25355-35F01

$3.97

5

ARM, SELECT

25360-11H00

Unavailable

6

NUT

08310-0006A

$1.84

7

PLATE, GR SHIFT CAM STOPPER (NT:16)

25381-11H00

Unavailable

8

SHAFT, SUB T/M GEAR SHIFT

25411-38A00

$29.25

9

SHAFT, SUB T/M SHIFT NO.2 This part replaces 25510-31G00.

25510-31G01

$90.13

10

GEAR, SUB T/M SHIFT (NT:32)

25540-31G00

Unavailable

11

FORK, SUB T/M GEAR SHIFT

29510-31G10

$90.28

12

CAM, SUB T/M GEAR SHIFT

29611-31G00

Unavailable

13

SPRING, SUB T/M SHIFT FORK

29612-31G00

Unavailable

14

SPRING, SHIFT ARM RETURN

29613-31G00

$7.05

15

SHAFT, SUB T/M GEAR SHIFT

29620-31G11

Unavailable

16

PIN (4X13.8)

04221-04089

$1.49

17

BOLT (6X14.3)

09111-06041

$2.61

18

SCREW (6X12)

09125-06122

$2.44

19

SHIM (14X24X1)

09181-14195

$2.71

20

SHIM (25X32X1)

09181-25139

$3.32

21

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

22

BOLT

01550-0620A

$1.97

23

BOLT

01550-0630A

$2.32

24

BEARING

08110-69040

$39.97

25

WASHER

08211-06121

$1.54

26

CIRCLIP

08331-3114A

$1.91

27

CIRCLIP

08331-31259

$2.48

28

BASE ASSY, GEAR SHIFT TERM

37720-31G00

$112.37

29

PIN (5X15.5)

09209-05011

$2.20

30

O RING (D:2.4,ID:35.5)

09280-35006

$3.04

31

CLAMP (L:45)

09404-06429

$1.83

32

SPRING

09440-04010

$1.54

33

BOLT

07120-0516A

$2.28
