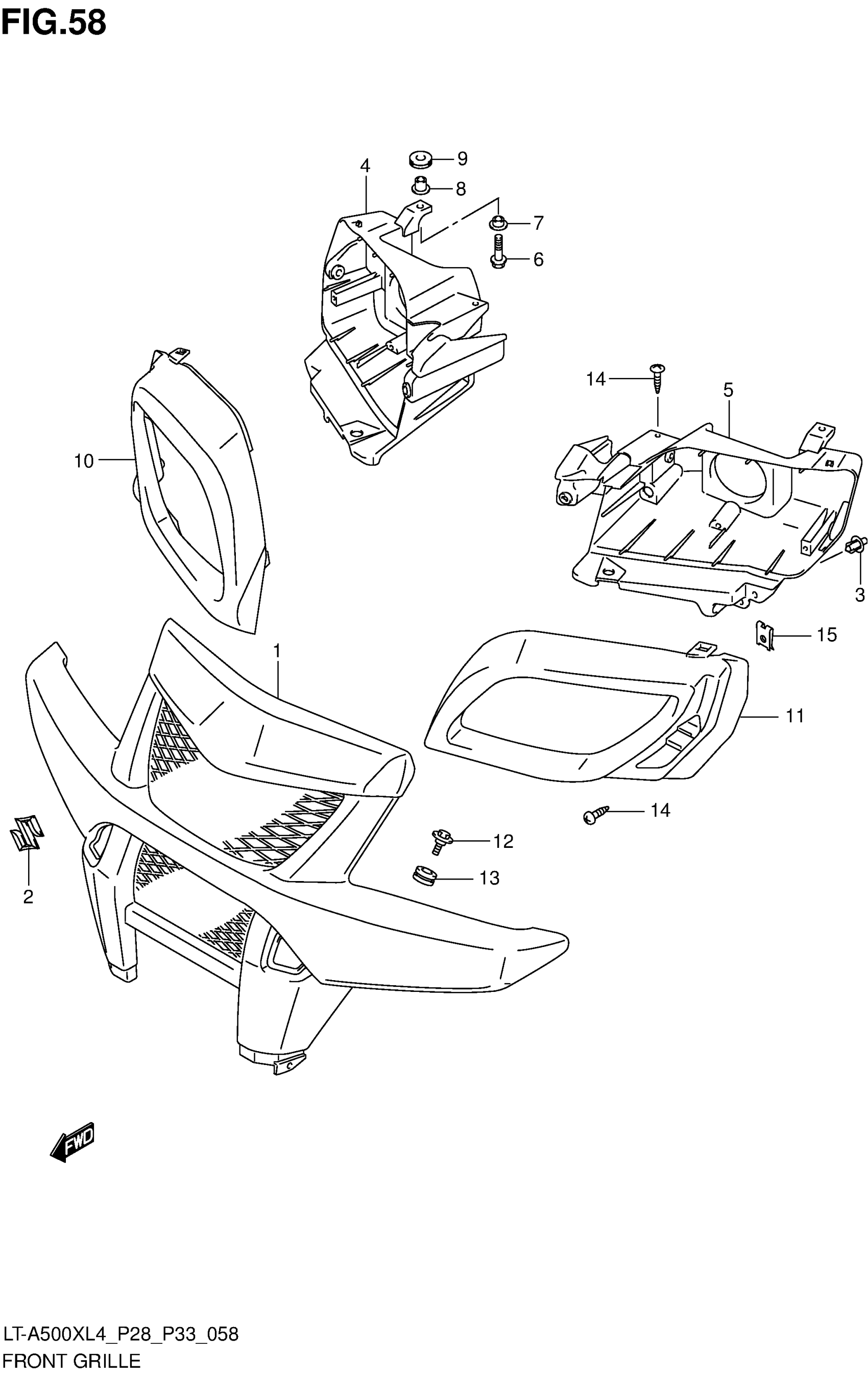

Suzuki LT-A500XL4 (2014) FRONT GRILLE (LT-A500XL4 P28) Diagram

#

Description

Price

1

GRILLE,FRONT This part replaces 53118-31G01-291.

53118-31G05-291

$158.87

2

EMBLEM, S

68151-03G40

$16.29

3

CLIP

09409-08335

$2.44

4

HOUSING,FRONT L This part replaces 53281-31G11-291.

53281-31G04-291

$85.33

5

HOUSING,FRONT L This part replaces 53284-31G11-291.

53284-31G03-291

$53.78

6

BOLT

01547-0630B

$2.80

7

WASHER

09169-06073

$3.18

8

WASHER

09169-06074

$7.70

9

CUSHION (11.5X32X12.2)

09320-11021

$3.89

10

COVER,FRONT LAM This part replaces 53282-31G01-291.

53282-31G03-291

$17.55

11

COVER,FRONT LAM This part replaces 53283-31G01-291.

53283-31G03-291

$33.76

12

SCREW (6X22.5)

09139-06118

$3.16

13

CUSHION

09320-10501

$5.00

14

SCREW

03541-0516A

$1.41

15

NUT

09148-05038

$2.01
