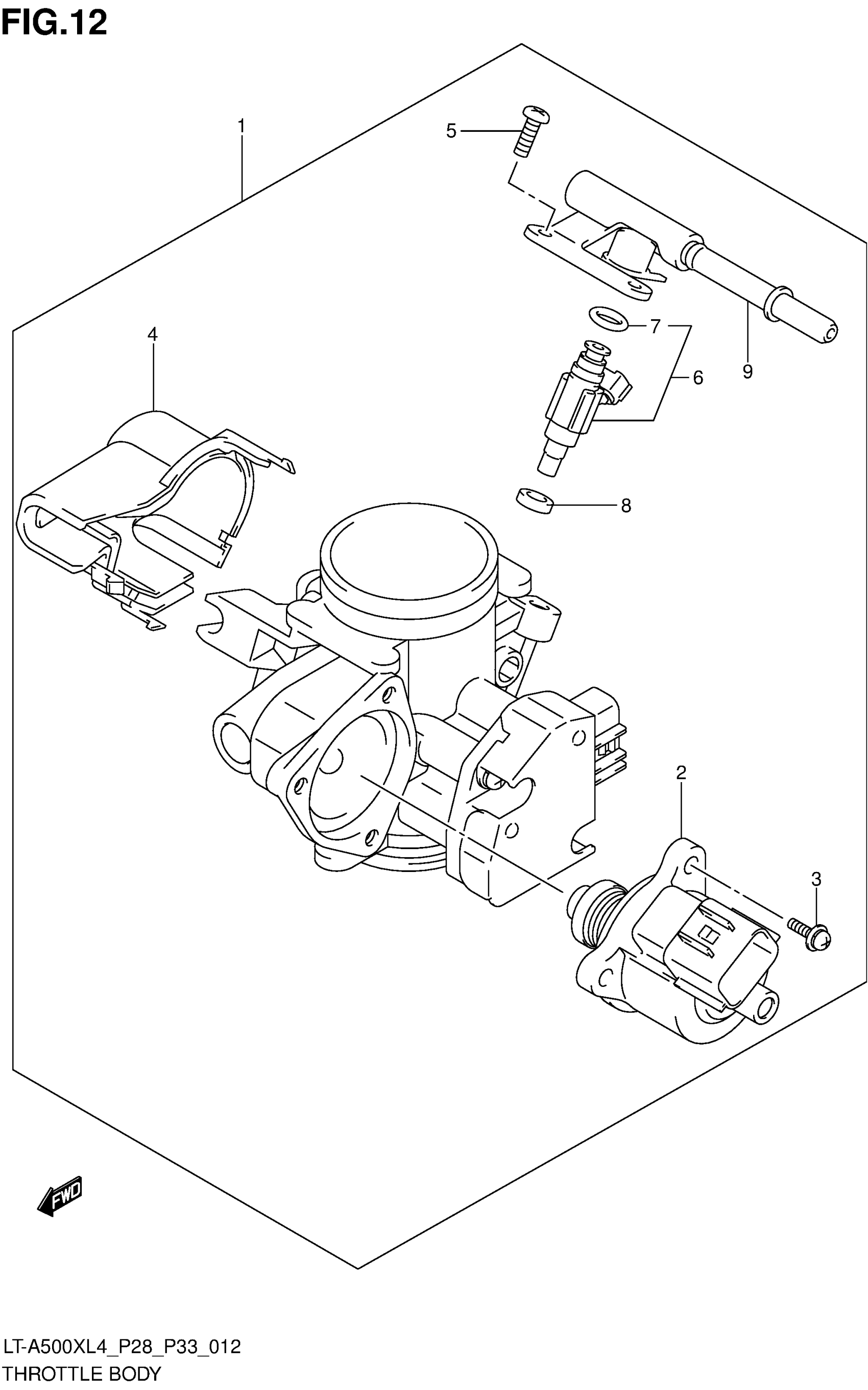

Suzuki LT-A500XL4 (2013) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-31H00.

13400-31H03

$864.68

2

MOTOR, ISC STEPPING

13520-31G00

$188.05

3

SCREW

13601-13G00

$3.33

4

COVER

13578-31G00

$18.22

5

SCREW

13602-06128

$2.80

6

INJECTOR ASSY, FUEL

15710-11H00

$357.70

7

O RING

15717-16G00

$9.11

8

SEAL

15722-29G00

$10.01

9

DELIVERY PIPE

15731-31G00

Unavailable
