2013 Suzuki LT-A500XL4 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2013 Suzuki LT-A500XL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

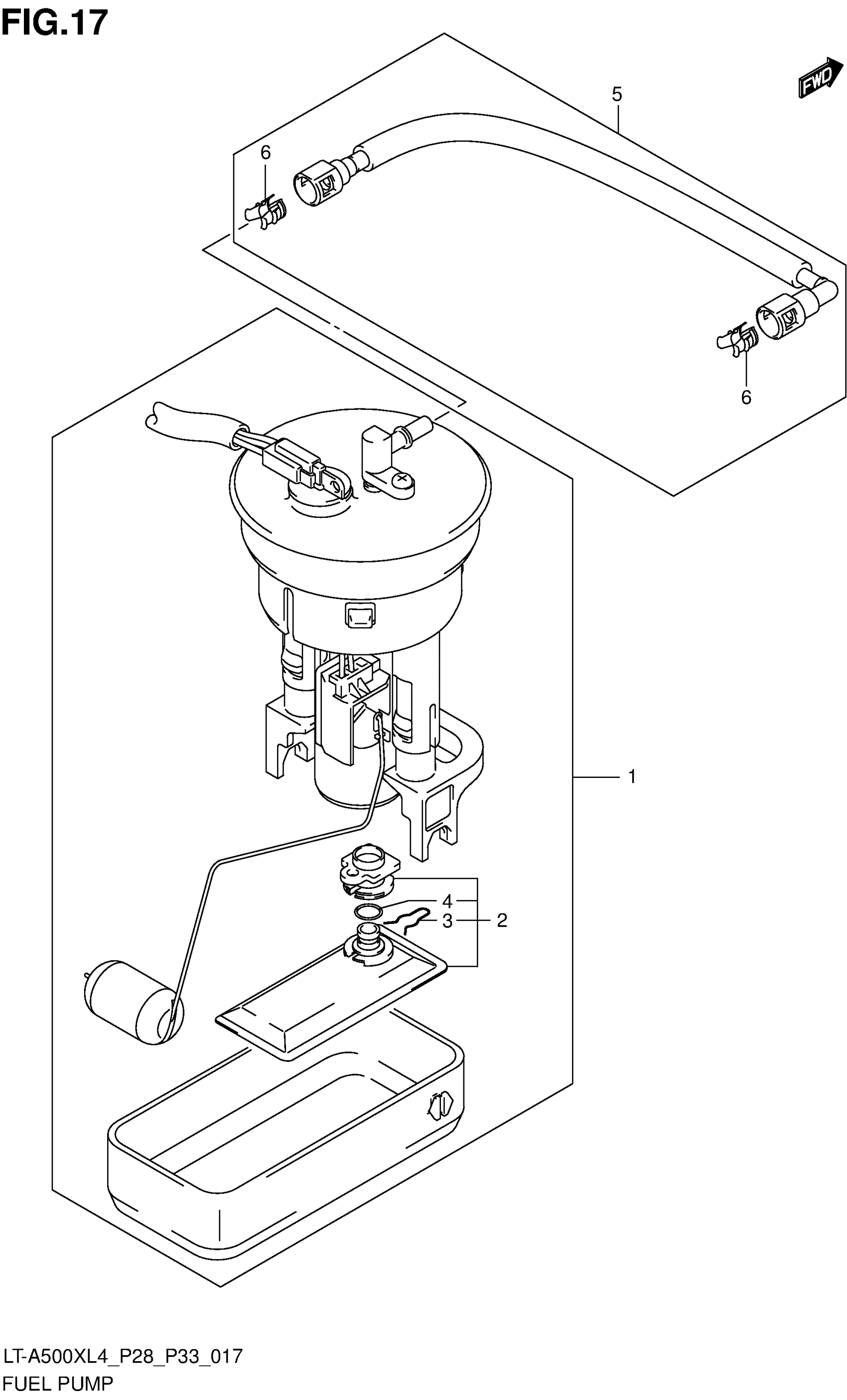

2013 Suzuki LT-A500XL4 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$391.87

In stock

2

FILTER SET, FUEL PUMP

15420-31G00

1

$69.43

In stock

3

CLIP

15421-31G00

1

$3.25

In stock

4

O RING

15424-31G00

1

$7.20

In stock

5

1

$36.66

In stock

6

RETAINER

15815-35F00

2

$7.81

In stock
