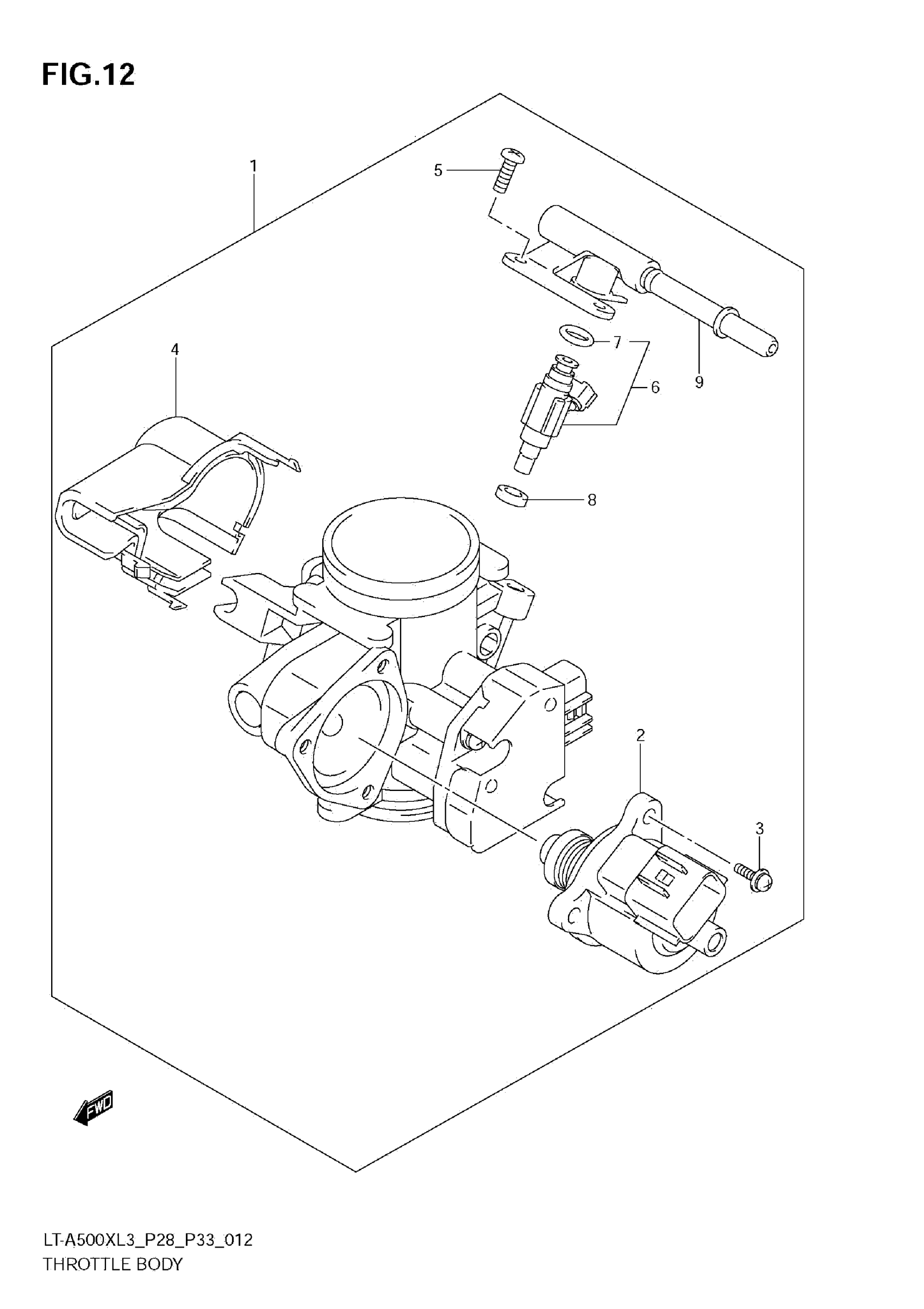

Suzuki LT-A500XL3 (2013) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-31H00.

13400-31H03

$791.97

2

MOTOR, ISC STEPPING

13520-31G00

$205.44

3

SCREW

13601-13G00

$2.95

4

COVER

13578-31G00

$16.13

5

SCREW

13602-06128

$2.96

6

INJECTOR ASSY, FUEL

15710-11H00

$321.43

7

O RING

15717-16G00

$11.70

8

SEAL

15722-29G00

$10.93

9

DELIVERY PIPE

15731-31G00

Unavailable
