Description

Price

1

FENDER, REAR (CAMOUFLAGE) This part replaces 63111-31GC2-PHW.

63111-31G42-PHW

$1,316.89

1

FENDER,REAR This part replaces 63111-31G50-PGR.

63111-31G61-PGR

$234.12

2

BOLT

01547-0625A

$2.01

3

WASHER

09169-06074

$7.49

4

CUSHION (11.5X32X12.2)

09320-11021

$3.77

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

$20.93

6

CLIP

09409-07333

$2.29

7

SCREW

02142-0520B

$1.77

8

NUT

09159-05019

$6.44

9

SHIELD, REAR FENDER This part replaces 63122-31G10.

63122-31G20

$30.38

10

SHIELD, REAR FENDER This part replaces 63123-31G10.

63123-31G20

$26.50

11

SHIELD, REAR FENDER This part replaces 63124-31G10.

63124-31G20

$19.55

12

SHIELD, REAR FENDER This part replaces 63128-31G10.

63128-31G20

$16.57

13

SHIELD, REAR FENDER This part replaces 63126-31G10.

63126-31G20

$14.65

14

SHIELD, REAR FENDER This part replaces 63127-31G10.

63127-31G20

$14.65

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

$3.68

16

EMBLEM,RR FENDE This part replaces 68171-31GF0-JLJ.

68171-31GF1-JLJ

$24.28

17

EMBLEM,"SUZUKI" This part replaces 68171-31GA0-1ZZ.

68171-31GA1-1ZZ

$4.16

18

CUSHION, TOOL This part replaces 47437-31G00.

47437-31GA0

$11.72

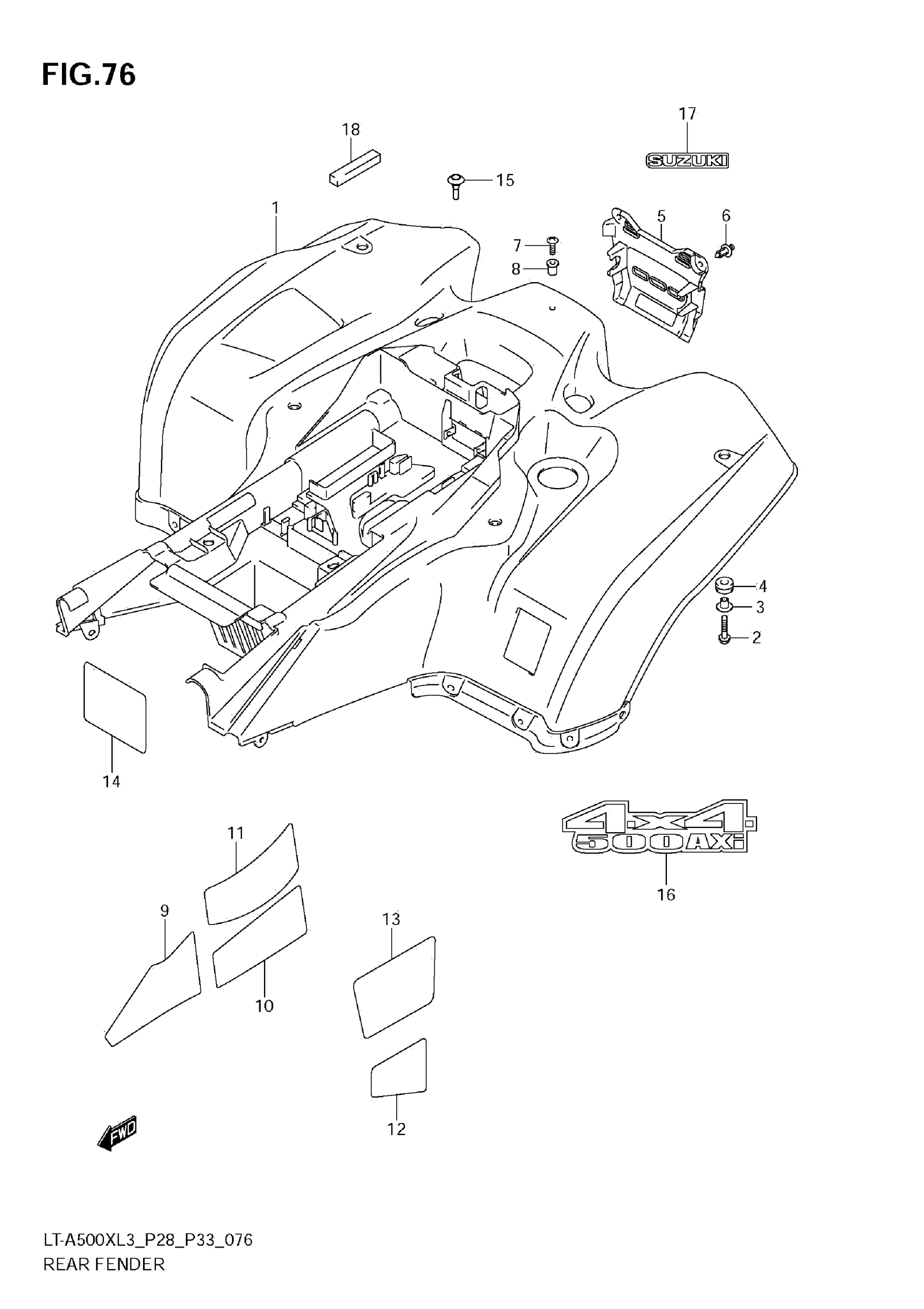

Suzuki LT-A500XL3 (2013) REAR FENDER (LT-A500XZL3 E33) Diagram
