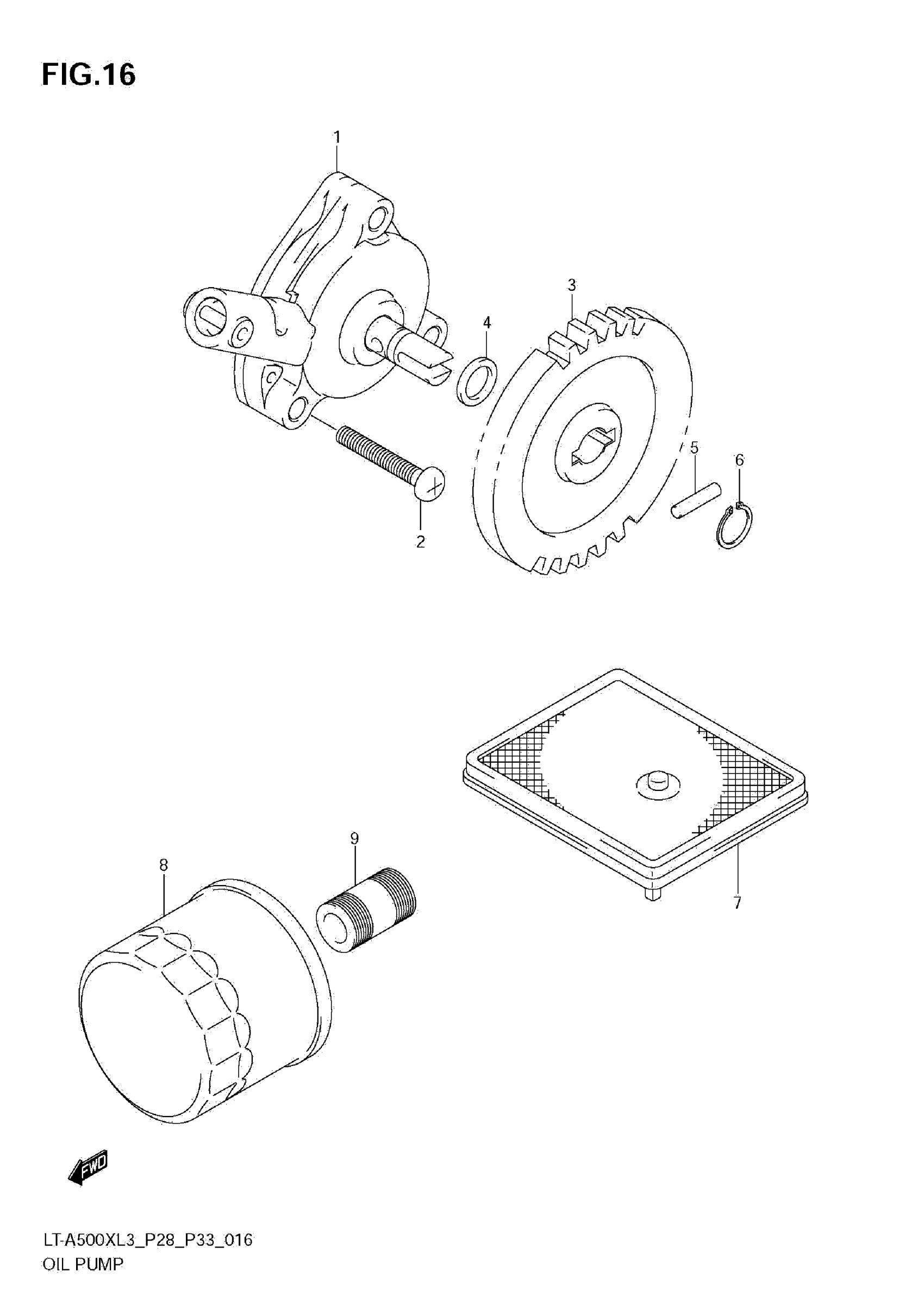

Suzuki LT-A500XL3 (2013) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-11H00

$182.33

2

SCREW (6X30)

09125-06119

Unavailable

3

SPROCKET, OIL PUMP DRIVE (NT:31)

16331-31H00

$48.77

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

8

FILTER ASSY, ENG OIL

16510-07J00

$13.10

9

UNION,OIL STAND

16591-06B01

$7.05
