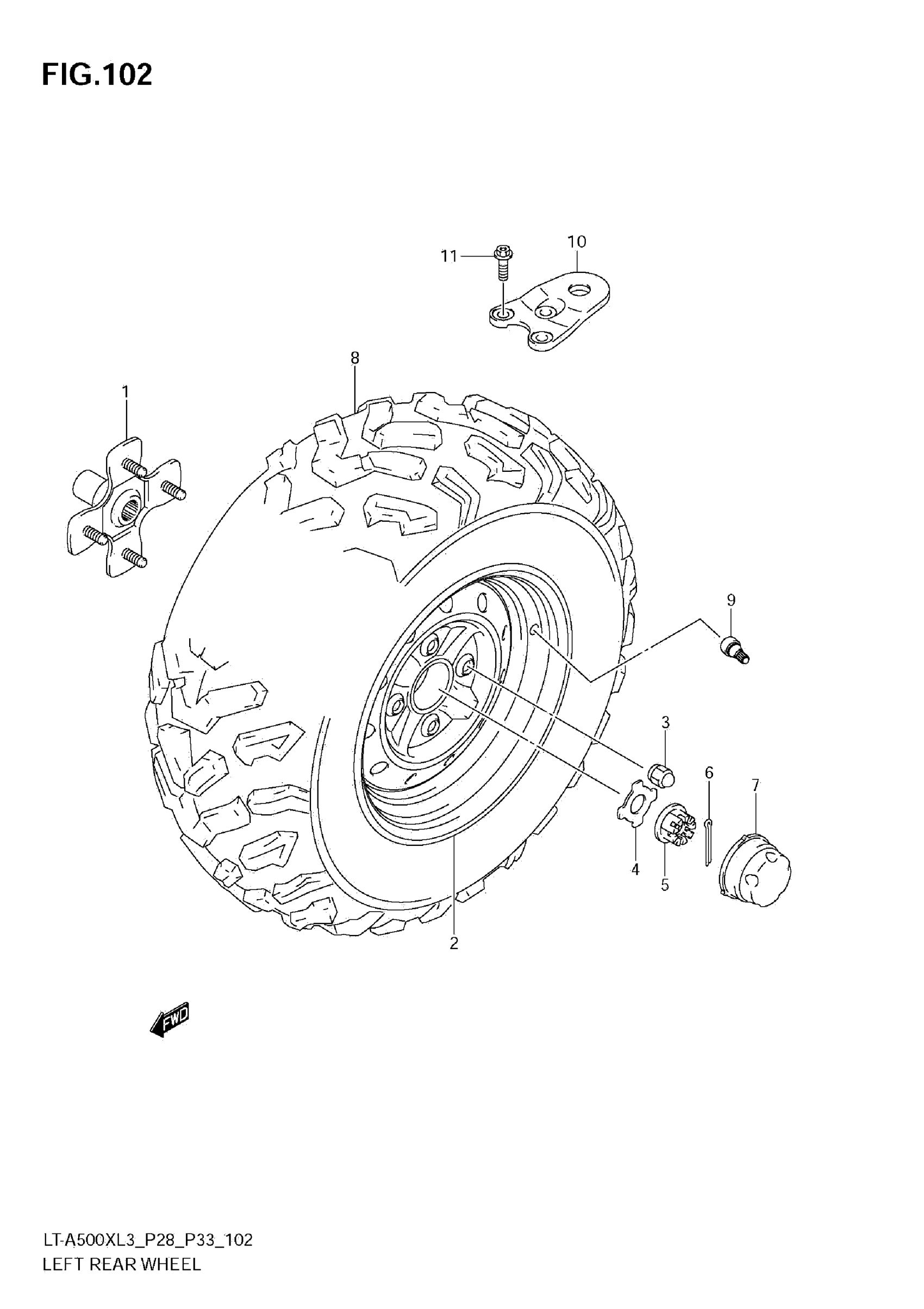

Suzuki LT-A500XL3 (2013) LEFT REAR WHEEL (LT-A500XL3 E28) Diagram

#

Description

Price

1

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

$247.50

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) | FOR YT9,YLG

65310-11H00-291

Unavailable

2

RIM, REAR WHEEL (12X7.5AT) (SILVER) | FOR YU1,YPW,YLZ

65310-11H00-YUM

$271.28

3

NUT

09140-10021

$2.09

4

WASHER

64723-03G00

$23.48

5

NUT

09141-20008

$17.59

6

COTTER PIN

04111-4035A

$1.41

7

CAP,WHEEL CENTER

54725-09F01

$9.53

8

TIRE, REAR (AT25X10-12) This part replaces 65110-11H00.

65110-31G20

Unavailable

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

10

PLATE, TRAILER TOW

95211-31G00

$43.30

11

BOLT (10X30)

09103-10366

$2.95
