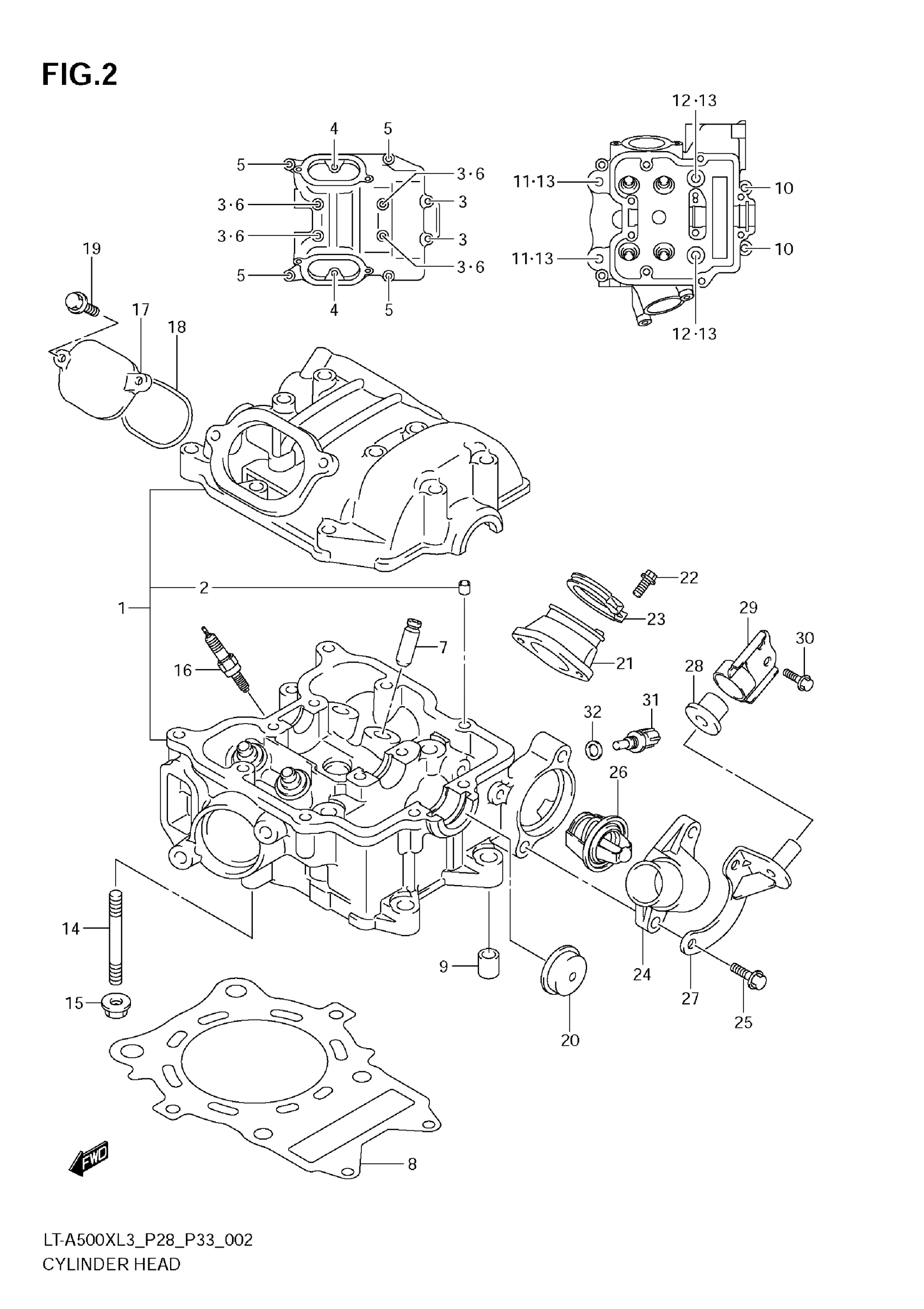

Suzuki LT-A500XL3 (2013) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-11H10

$1,509.01

2

PIN (8X11)

09206-08001

$1.82

3

BOLT (6X60)

09103-06064

$2.21

4

BOLT

01550-0625A

$2.01

5

BOLT

01550-0635A

$2.38

6

GASKET (5.8X13X1.2)

09168-06023

$2.09

7

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

8

GASKET, CYLINDER HEAD

11141-31H00

$43.55

9

PIN

04211-13189

$2.25

10

BOLT (8X135)

09103-08212

$8.12

11

BOLT (10X190)

09103-10179

$14.51

12

BOLT (L:200)

09103-10180

$14.51

13

.GASKET (10.2X20X2.3)

09168-10031

$2.09

14

STUD BOLT

01421-0850A

$3.33

15

NUT

08316-1008A

$2.56

16

SPARK PLUG (NGK,CR6E)

09482-00528

$5.92

16

SPARK PLUG (DENSO,U20ESR-N)

09482-00529

$7.93

16

SPARK PLUG (NGK,CR6EIA-9) | OPT

09482-00590

$18.73

16

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$5.92

16

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.67

16

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.17

16

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.79

17

CAP,INSPECTION

11175-47D00

$27.22

18

.O RING,INSPECTION CAP

11177-14D01

$4.40

19

BOLT

01550-0620A

$2.01

20

PLUG (OD:30)

09241-25007

$5.74

21

PIPE ASSY, INTAKE This part replaces 13101-31H00.

13101-31H01

$48.88

22

BOLT (6X18)

09106-06105

$2.80

23

CLAMP

09402-56901

$4.99

24

COVER, THERMOSTAT

17661-31G00

$53.58

25

BOLT

07130-0825A

$2.82

26

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$24.64

27

PLATE, ENG MTG DAMPER

11653-11H01

$23.73

28

DAMPER, ENG MTG

11654-31G00

$3.19

29

STOPPER, ENG MTG

11655-31G03

Unavailable

30

BOLT (8X12)

01550-0812A

$2.38

31

SENSOR, WATER TEMP

13650-10G00

$83.45

32

GASKET (12X17X1)

09168-12017

$2.01
