2013 Suzuki LT-A500XL3 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2013 Suzuki LT-A500XL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

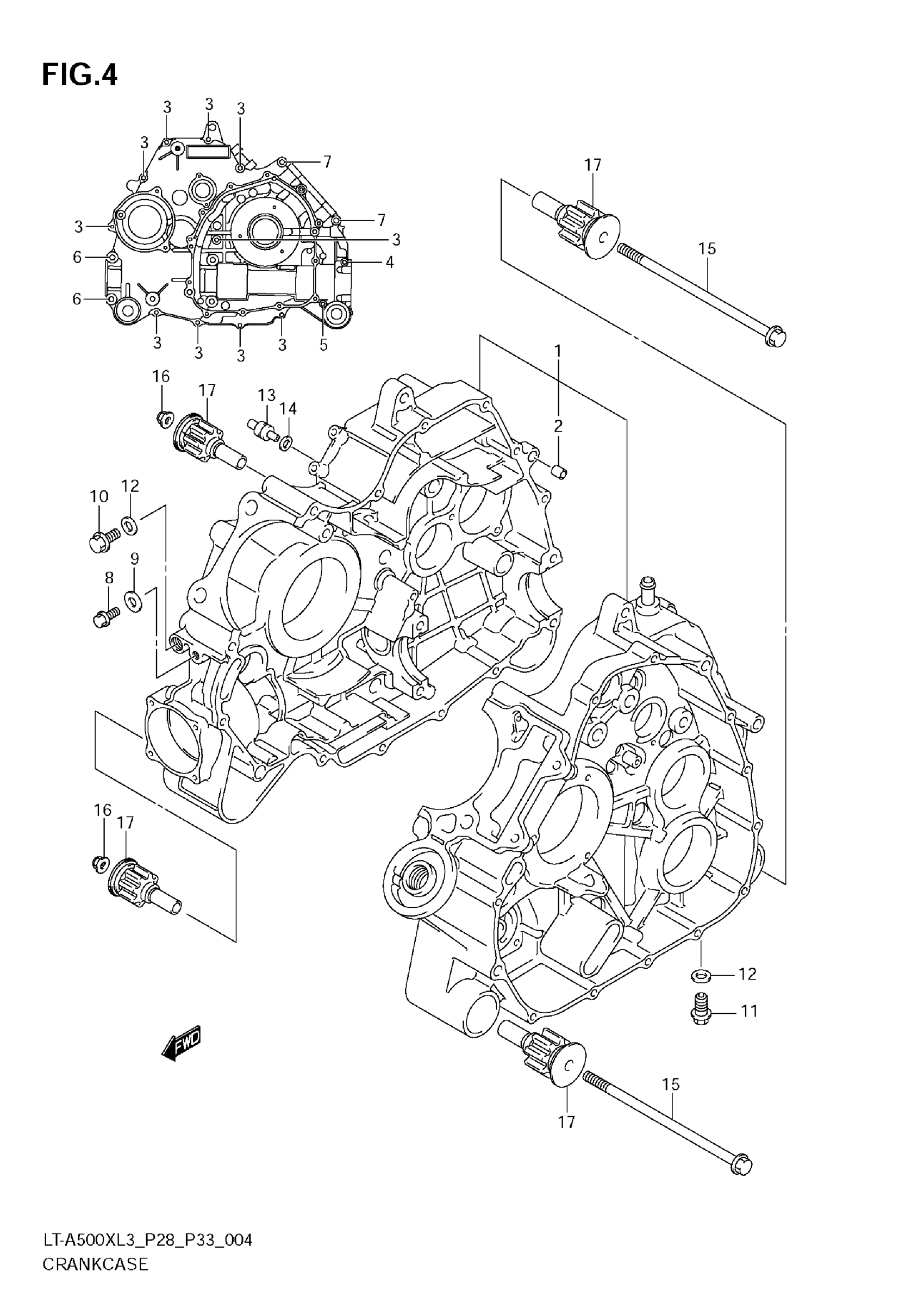

2013 Suzuki LT-A500XL3 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET This part replaces 11301-11870.

11301-11871

1
Out of stock

2

PIN

04211-11169

2
Out of stock

3

BOLT

01547-0650B

10
Out of stock

4

BOLT

01547-0680B

1
Out of stock

5

BOLT

01547-0690B

1
Out of stock

6

BOLT

01550-0850B

4
Out of stock

7

BOLT

01550-0875A

2
Out of stock

8

BOLT

01550-0812B

1
Out of stock

9

GASKET (8.2X14X1)

09168-08016

1
Out of stock

10

PLUG (12X10)

09247-12006

1
Out of stock

11

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

1
Out of stock

12

GASKET (12.1X16.2X3.7)

09168-12002

2
Out of stock

13

JET,T/M OIL GALLERY

09493-20014

1
Out of stock

14

O RING (D:1.2,ID:4)

09280-04004

1
Out of stock

15

BOLT (10X195)

09103-10118

2
Out of stock

16

NUT

09159-10115

2
Out of stock

17

BUSH, ENG MTG

11651-31G10

4
Out of stock
