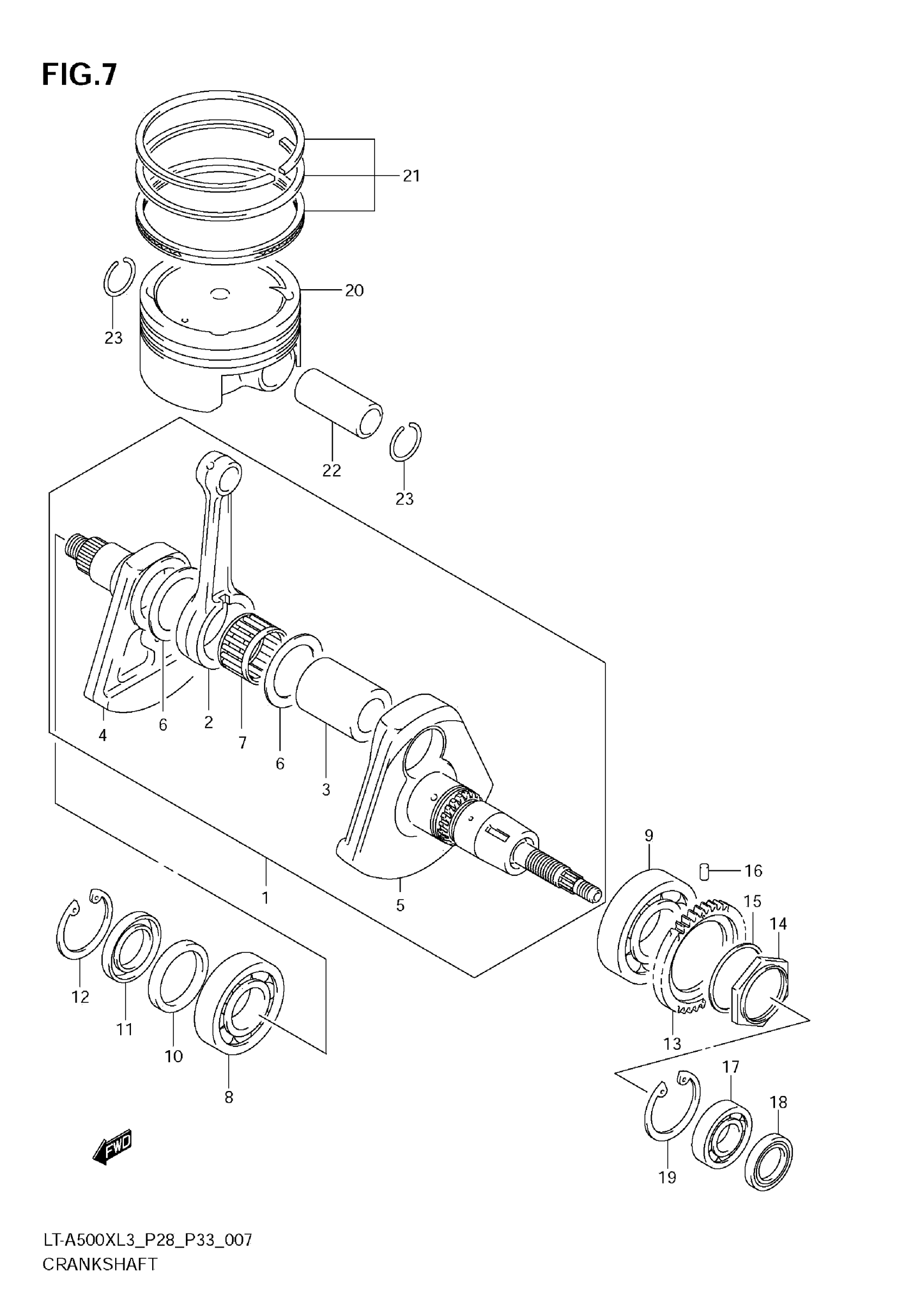

Suzuki LT-A500XL3 (2013) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-11H00

$814.84

2

CONNROD

12161-11H00

$139.04

3

PIN, CRANK

12210-11H00

$72.00

4

CRANKSHAFT RH

12220-11H00

Unavailable

5

CRANKSHAFT LH

12261-11H00

Unavailable

6

WASHER (35X55X1)

09160-35005

$9.32

7

BEARING (35X44X25)

09263-35043

$96.22

8

BEARING (40X80X18)

09262-40008

$68.27

9

BEARING (45X85X19)

09262-45007

$104.57

10

OIL SEAL (34X49X6)

09282-34003

$43.33

11

OIL SEAL (34X52X6)

09282-34001

$36.72

12

CIRCLIP

08331-41529

$4.45

13

GEAR, CRANK BALANCER DRIVE (NT:43)

12661-31G01

$151.97

14

NUT,CRANK BALANCER DRIVE GEAR

12664-31G00

$24.03

15

WASHER (45X60X1.2)

09160-45006

$6.47

16

PIN (5X8)

09261-05005

$1.49

17

BEARING (25X47X8)

09262-25006

$25.54

18

OIL SEAL (25X42X6)

09283-25095

$26.72

19

CIRCLIP

08331-41479

$2.31

20

PISTON (YELLOW) This part replaces 12111-31H00-0F0.

12111-31H10-0F0

$76.53

21

RING SET, PISTON

12140-03G20

$103.70

22

PIN,PISTON

12151-24A00

$22.03

23

CIRCLIP

09381-20004

$1.65
