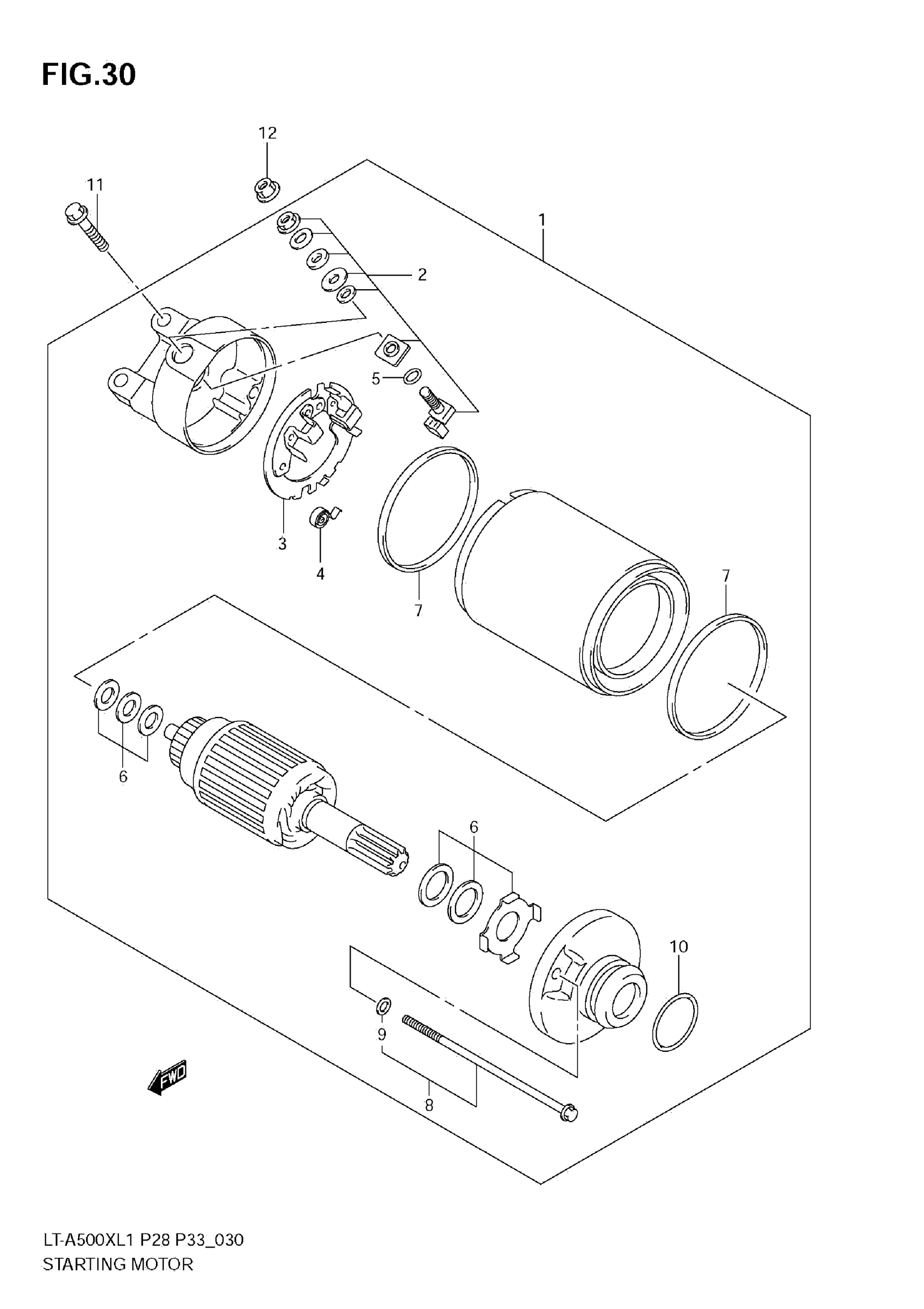

Suzuki LT-A500XL1 (2011) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-11H00

$560.20

2

TERMINAL SET, BRUSH

31130-13E00

$44.18

3

HOLDER SET, BRUSH

31132-13E00

$56.75

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

WASHER SET

31170-19B10

$12.57

7

O RING

31264-13E00

$6.68

8

SET BOLT

31280-19F00

$20.45

9

O RING

31156-13E00

$4.35

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT (6X25)

09103-06212

$2.47

12

NUT

08361-3506A

$1.80
