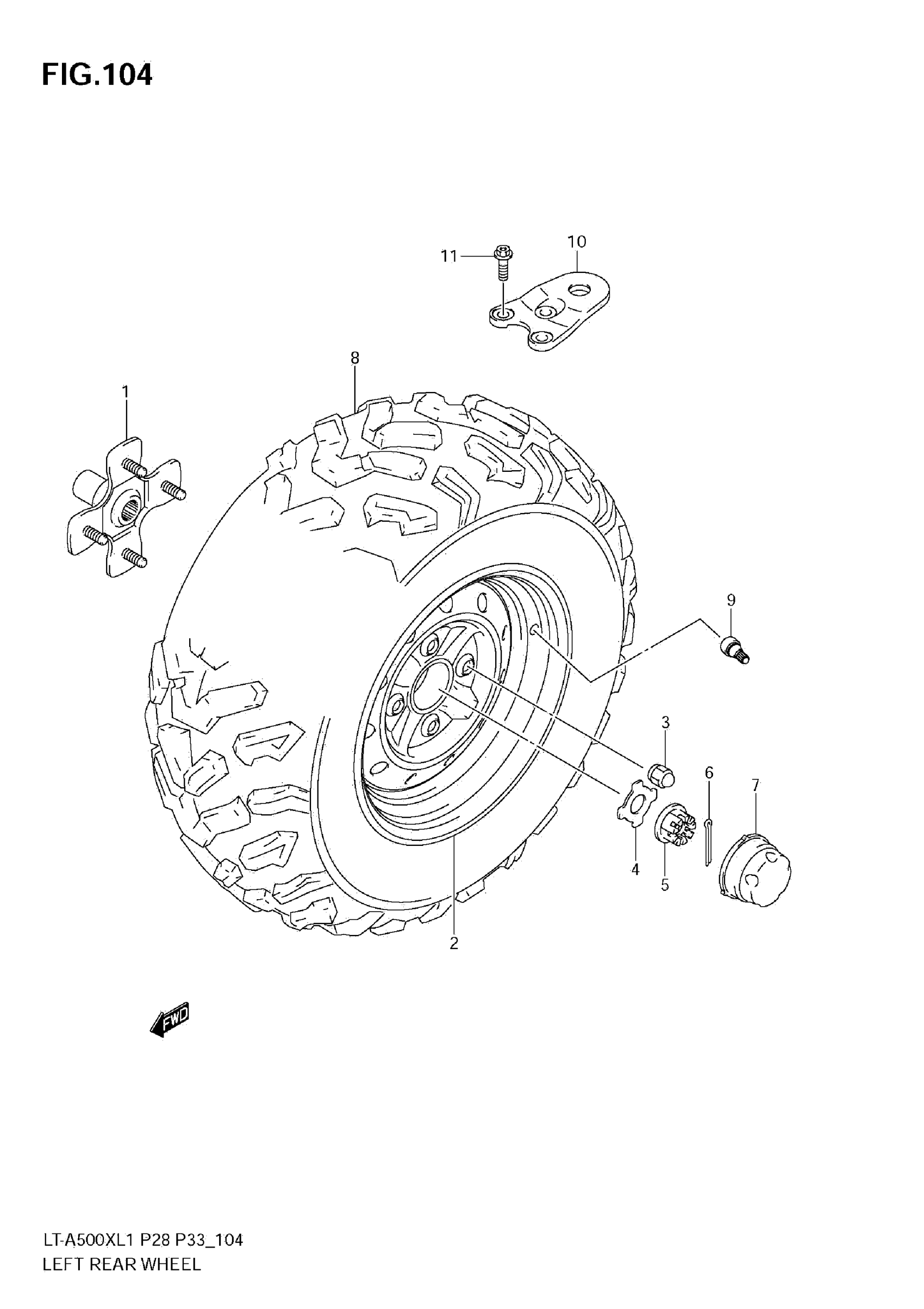

Suzuki LT-A500XL1 (2011) LEFT REAR WHEEL (LT-A500XZ L1 E28) Diagram

#

Description

Price

1

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

$222.42

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-11H00-291

$339.20

2

RIM, REAR WHEEL (12X7.5AT) This part replaces 65310-11H00-YL8.

65310-11H00-291

$339.20

3

NUT

09140-10021

$2.03

4

WASHER

64723-03G00

$20.80

5

NUT

09141-20008

$18.05

6

COTTER PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

TIRE, REAR (AT25X10-12) | CHENG SHIN This part replaces 65110-11H00.

65110-31G20

Unavailable

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

10

PLATE, TRAILER TOW

95211-31G00

$38.37

11

BOLT (10X30)

09103-10366

$3.85
